Full bridge strain gauges. Precision Transducer Quality Gauges
350 or 700 ohm Bridges
Temperature Compensated for Steel or Aluminum
2 Half Bridge Patterns can be used a 1 Full Wheatstone Bridge
Broad Temperature Range - 75 to +200°C
Click on this link if you need more information about Strain Gauge.
OMEGADYNE® offers full bridge
strain gages with transducer quality for shear
and torsional strain applications. These
strain gages can be used in transducer
design for shear beam load cells, or
they can also be used for reaction
torque on a shaft.

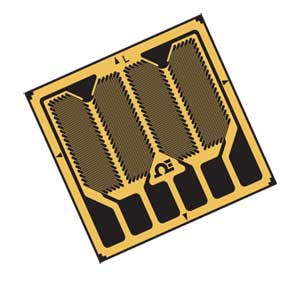

SGT-2DD/350-SY** has 2 half bridges strain gauges
on one carrier piece. Each half bridge
has a dual shear pattern, with opposite
grids and a common lead/solder pad.
SGT-3/700-FB** has 4 independent
shear strain gages, with opposite grid
angles, on one carrier, with separate leads/pads (electrically independent).
Below we show one wiring example;
SGT-2DD/350-SY** used to measure
a reaction torque on a shaft. The strain
gages have been numbered, and the
leads/solder pads labeled.
If the delivery time shows 6 weeks or more, please call our Sales team, as most times we can ship in 2 WEEKS.
† All amounts shown in EUR Note: Sold in packages of 5 strain gauges.
