Solenoid Valves, 2-Way General Purpose
Brass Body, Normally Closed

SV200 Series

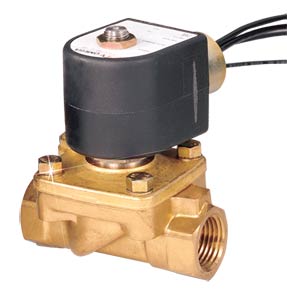

SV200_SERIES 2-Way General Purpose Solenoid Valves

^€260,13 SV202

PLACE ORDER

Durable Brass Valve Body
Rugged NEMA 4 (IP65) Housing
Mounts in Any Position
Rated for Continuous Duty

Valves, Regulators and I/P Converters - View related products

Description

Find how a Solenoid valve works on this link.

TYPICAL APPLICATIONS: Water Treatment, Dry Cleaning, Commercial Laundry Equipment, Irrigation, Cooling, Petroleum Processing, Dish and Bottle Washing, Pollution Control, Heat Exchangers

The SV201 and SV202 are direct-lift valves, which combine the features of a direct-acting valve with those of a pilot-operated valve. Because of a flexible link between the solenoid plunger and the diaphragm, the direct-lift valve functions as a directacting valve at low pressures and as a pilot-operated valve at high pressures. It is sometimes referred to as a zero delta pressure valve or a hung diaphragm valve.

The SV203 through SV207 are pilotoperated solenoid valves. These valves use the energy stored in the pressurized fluid to actuate the valving mechanism. They require the minimum pressure differential specified for proper valve operation. A direct-acting, normally closed solenoid valve is an integral part of the pilot-operated valve and is used to affect the balance of pressure above and below a diaphragm or piston.

SPECIFICATIONS
Operation:
SV201 and SV202: Direct lift
SV203 to SV207: Pilot operated
Wetted Parts: Brass, Stainless steel, copper, and seal
Medium: Liquid or gases
Max Static Pressure: 1.5 times max psid, vacuum (>5 microns ABS)
Ambient Temp: -9 to 50°C (15 to 122°F)
Mounting: Pipe mounting, any direction
Power: 10 W, 120 Vac, class F

Place Order(Specify Model Number)

Part Number/Desc.

Qty

Description

SV201

Consult Sales

Availability:

3/8 NPT Fitting*

SV202

€260.13

Availability: 1 week

1/2 NPT Fitting*

SV203

Consult Sales

Availability:

3/4 NPT Fitting

SV204

Consult Sales

Availability:

1 NPT Fitting

SV205

Consult Sales

Availability:

1 1/4 NPT Fitting

SV206

Consult Sales

Availability:

1 1/2 NPT Fitting

Accessories

SVCOIL-110AC

€87.41

Availability: 1 week

Replacement coil, 110 Vac

SVCOIL-220AC

€95.48

Availability: 16 weeks

Replacement coil, 220 Vac

MS-1808

Consult Sales

Availability:

Reference Book: Plant Engineer’s Handbook

SV207

Consult Sales

Availability:

2 NPT Fitting

† All amounts shown in EUR
Note: * Non-Adjustable response time
