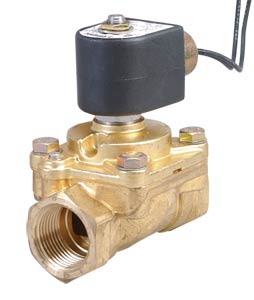

Solenoid Valves, 2-Way Anti-Waterhammer, Normally Open

SV290 Series

SV290_SERIES 2-Way Anti-Waterhammer Solenoid Valves | SV290 Series

SV290_SERIES 2-Way Anti-Waterhammer Solenoid Valves

630,00 SV292

CE RoHS
  • Durable Brass Valve Body
  • Adjustable Closing Time
  • Rugged NEMA 4 (IP65) Housing
  • Mounts in Any Position
  • Rated for Continuous Use
Valves, Regulators and I/P Converters - View related products

Description

Follow this link if you want to know more about solenoid valves.

TYPICAL APPLICATIONS: Water Treatment, Irrigation, Cooling, Car Washing Equipment, Petroleum Processing, Dish and Bottle Washing

The SV291 through SV295 Series valves are 2-way, pilot operated, anti-waterhammer, and normally open. These valves are designed to reduce or control waterhammer, which typically occurs with incompressible fluids when the closing of a valve creates a sudden change of the fluid velocity. Restriction of the pilot flow in these valves will prevent them from slamming closed. Valve and piping system life is enhanced since the noise, vibration, and shock of waterhammer are reduced.

Where small flows (CV <3.0) at relatively low pressure differentials are present, the waterhammer is eliminated by the fixed restriction of the pilot flow. This is the standard design for the industry. However, to reduce waterhammer in highflow applications, a unique field adjustment device can effectively control the waterhammer in an application. The closing time on these valves can be adjusted by a 4-position selector. Position 1 allows the fastest closing, position 4 the slowest.

SPECIFICATIONS
Operation: Pilot operated
Wetted Parts: Brass, stainless steel, copper, and seal
Medium: Liquid or gases
Max Static Pressure: 5 times max psid
Ambient Temp: -9 to 50°C (15 to 122°F)
Mounting: Pipe mounting, any direction
Power: 10 W, 120 Vac, Class F
Place Order(Specify Model Number)
Part Number/Desc.
Qty
RoHS
Description
Quick Ship
SV291
495,00
Availability: 9 weeks
RoHS compliant
2-way, anti-waterhammer, pilot-operated, brass body NO valve with 3/4 NPT fitting and Buna-N seal
Quick Ship
SV292
630,00
Availability: 1 week
RoHS compliant
2-way, anti-waterhammer, pilot-operated, brass body NO valve with 1" NPT fitting and Buna-N seal
All amounts shown in EUR
