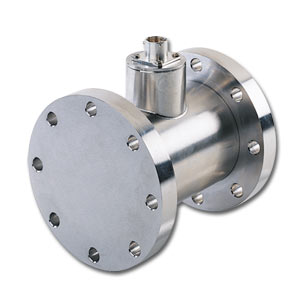

Reaction Torque Cells, Heavy Duty Flange Mount


 | TQ302

2.320,27 TQ302-2K

  • All Stainless Steel Case for Long Term Reliability in Industrial Environments
  • High Accuracy
  • Heavy Duty Mounting for Positive, Non-Slip Connection
Load Cells, Force Sensors and Torque Transducers - View related products


Output: 1.5 mV/V
Excitation: 10 Vdc, 15 Vdc max
Input Resistance: 360 Ohms min.
Output Resistance: 350 ±5 Ohms
Accuracy Class: ±0.2% FSO
Linearity: ±0.2% FSO
Hysteresis: ±0.05% FSO
Repeatability: ±0.05% FSO
Zero Balance: ±1% FSO
Compensated Temp. Range: 16 to 71°C (60 to 160°F)
Operating Temp. Range: -54 to 107°C (-65 to 225°F)
Thermal Effects: Zero: ±0.005% FSO/°F Span: ±0.005% Rdg/°F
Safe Overload: 150% of Capacity
Ultimate Overload: 300% of Capacity
Construction: Stainless Steel
Electrical: PT1H-10-6P Connection Mating Connector: PT06F-10-6S-R (not included)
Place Order(Specify Model Number)
Part Number/Desc.
Availability: 13 weeks
Flange mount reaction torque sensor with +/- 2,000 in-lb range
Availability: In Stock
Mating connector (not included)
