 - Discontinued Rotating Torque meter, Shaft to Shaft Configuration

TQ513 Series

Rotating Torque meter | TQ513 Series

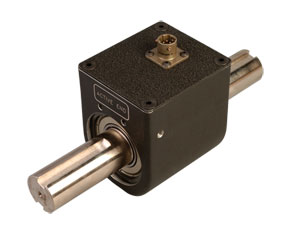

Rotating Torque meter

1.870,00 TQ513-100

1 year warranty
  • Rotating Torque meter for Operation Speed Up to 5000 RPM
  • Silver Slip Rings for Secure Connections
  • Optional Optical Encoder for Angle or Speed Measurement
Load Cells, Force Sensors and Torque Transducers - View related products

Description

The TQ513 series has been discontinued and is no longer available in Europe.


The torque meter of the series TQ513 are designed to measure the rotating torque using shaft-to-shaft in-line placement. Heavy-duty silver slip rings provide secure transmission of power and signal from the rotating shaft to your instrumentation. An optional 1024 ppr optical encoder is available to measure angle or speed.

SPECIFICATIONS
Excitation Voltage: 20 Vdc maximum
Bridge Resistance: 1000 ohms
Output at Full Scale: 2.0 mV/V nominal
Linearity: 0.10% FS
Hysteresis: 0.10% FS
Zero Balance: 1.0% FS
Operating Temperature: -54 to 121°C (-65 to 250°F)
Compensated Temperature: 21 to 76°C (70 to 170°F)
Thermal Effects
    Zero: 0.0036% FS/°C
     Span: 0.0036% FS/°C
Overload Capacity: 150% FS
Material:
    <100 in-lb: SS shafts, aluminum sensor
    ≥100 in-lb: Steel shaft and sensor
Maximum Shaft Speed: 5000 RPM
Electrical Connection: 4-pin twist lock connector (mating connector supplier); 10-pin twist lock connector with optional optical encoder (mating connector supplied)
Place Order(Specify Model Number)
Part Number/Desc.
Qty
Description
Quick Ship
TQ513-003
€1.870,00
Availability: 14 weeks

50 in-oz, 3.125 in-lb, 0.35 N-M, 3/8' shaft, 1/32' flat key
Quick Ship
TQ513-006
€1.870,00
Availability: 14 weeks

100 in-oz, 6.25 in-lb, 0.71 N-M, 3/8' shaft, 1/32' flat key
Quick Ship
TQ513-012
€1.870,00
Availability: 14 weeks

200 in-oz, 12.5 in-lb, 1.41 N-M, 3/8' shaft, 1/32' flat key
Quick Ship
TQ513-030
€1.870,00
Availability: 14 weeks

500 in-oz, 31.25 in-lb, 3.53 N-M, 3/8' shaft, 1/32' flat key
Quick Ship
TQ513-062
€1.870,00
Availability: 1 week

1000 in-oz, 62.5 in-lb, 7.06 N-M, 3/8' shaft, 1/32' flat key
Quick Ship
TQ513-100
€1.870,00
Availability: 1 week

100 in-lb, 12 N-M, 0.749' shaft, 3/16' key
Quick Ship
TQ513-200
€1.870,00
Availability: 1 week

200 in-lb, 23 N-M, 0.749' shaft, 3/16' key
Quick Ship
TQ513-500
€1.870,00
Availability: 14 weeks

500 in-lb, 56 N-M, 0.999' shaft, 1/4' key
Quick Ship
TQ513-1K
€1.870,00
Availability: 14 weeks

1000 in-lb, 113 N-M, 0.999' shaft, 1/4' key
Quick Ship
TQ513-2K
€1.870,00
Availability: 6 weeks

2000 in-lb, 226 N-M, 0.999' shaft, 1/4' key
Options
Quick Ship
TQ513-514-FOOTMOUNT
€83.00
Availability: 1 week

Field installable Foot Mounting Bracket
All amounts shown in EUR
Note: Comes complete with operator's manual.

Part Number Builder

Build Your Part Number Below
Option Descriptions:


(1) Capacity select from:
-003 for 3.125in-lb
-006 for 6.25in-lb
-012 for 12.5in-lb
-030 for 31.25in-lb
-062 for 62.5in-lb
-100 for 100in-lb
-200 for 200in-lb
-500 for 500in-lb
-1K for 1000in-lb
-2K for 2000in-lb

(2) Encoder Option select from:
Nothing(leave field blank) for No Option
-EN1024 for Integral 1024 ppr optical encoder add $545

(3) Bracket Option select from:
Nothing(leave field blank) for None
-MB for Foot mounting bracket add $85
Note: All combinations may not be valid, check spec sheet for valid part numbers.
