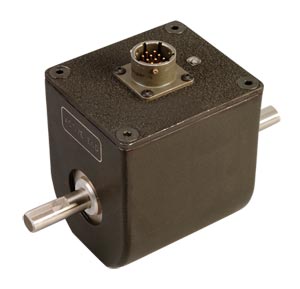

- Discontinued Digital Rotating Torque Sensor, Shaft to Shaft Configuration

TQ514

^€4.769,00 TQ514-003

PLACE ORDER

No Slip Rings for Quiet, High Speed Operation Up to
10,000 RPM
Amplifed ±5 Vdc Output for Easy Computer Interface
Optional Optical Encoder for Angle or Speed Measurement

Load Cells, Force Sensors and Torque Transducers - View related products

Description

The TQ514 series has been discontinued and is no longer available in Europe.

The TQ514 Series use a unique digital, non-contact wireless system to supply power to and transmit the signal from the rotating sensor. The digital torque signal is then converted and amplified to a ±5 Vdc analog signal. This system reduces noise and allows for higher operating speeds. An optional 512 ppr optical encoder is available to measure angle or speed.

SPECIFICATIONS
Excitation Voltage: 12 to 15 Vdc
Supply Current: 350 mA
Output at Full Scale: Isolated ±5 Vdc
Sample Rate: 20,000 samples per second
Bandwidth: dc to 1 kHz
Linearity: 0.10% FS
Hysteresis: 0.10% FS
Zero Balance: 1.0% FS
Operating Temperature: -40 to 85°C (-40 to 185°F)
Compensated Temperature: 21 to 76°C (70 to 170°F)
Thermal Effects
   Zero: 0.0036% FS/°C
   Span: 0.0036% FS/°C
Material:
   <100 in-lb: SS shafts, aluminum sensor
   ≥100 in-lb: steel shaft and sensor
Overload Capacity: 150% FS
Maximum Shaft Speed: 10,000 RPM
Electrical Connection: 10-pin twist lockconnector (mating connector supplied)

Place Order(Specify Model Number)

Part Number/Desc.

Qty

Description

ACCESSORY

TQ513-514-FOOTMOUNT

Consult Sales

Availability:

Field installable mounting foot

† All amounts shown in EUR
Note: Each unit comes complete with operator's manual.

Part Number Builder

Build Your Part Number Below

	(1)	(2)	(3)
TQ514

Option Descriptions:

(1) Capacity select from:
-003 for 3.125in-lb
-006 for 6.25in-lb
-012 for 12.5in-lb
-030 for 31.25in-lb
-062 for 62.5in-lb
-100 for 100in-lb
-200 for 200in-lb
-500 for 500in-lb
-1K for 1000in-lb
-2K for 2000in-lb

(2) Encoder Option select from:
Nothing(leave field blank) for No Option
-EN512 for Integral 512 ppr optical encoder add $545

(3) Bracket Option select from:
Nothing(leave field blank) for None
-MB for Foot mounting bracket add $85

Note: All combinations may not be valid, check spec sheet for valid part numbers.
