DIN Rail Mount Wireless Receivers with 4 Analogue Outputs

UWTC-REC4

Wireless Receivers with Analogue Outputs | UWTC-REC4

Wireless Receivers with Analogue Outputs

325,00 UWTC-REC4-V1

1 year warranty CE RoHS
  • Works with Up to 48 Wireless Transmitters
  • Four 0 to 5 Vdc, 0 to 10 Vdc or 4 to 20 mA Analogue Outputs
  • Interface Directly to PLCs, Chart Recorders and Data Loggers
  • Included Software Turns a PC Into a Multi-Channel Meter, Chart Recorder or Data Logger

Description

Click if you want to know more about wireless sensors.

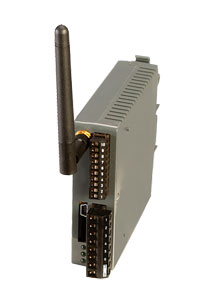

The UWTC-REC4 wireless DIN rail receiver can work with up to 48 wireless transmitters, displaying their data in real time on your PC. The UWTC-REC4 also has four independent analogue outputs, which can be user-programmed as a retransmission signal from any input channel, driving a PLC or data logger. The UWTC-REC4 is compatible with the full range of UW wireless transmitters from Omega; choose from thermocouple, RTD, %RH, infrared (non-contact) temperature, pH, as well as process voltage and current models.
The standard DIN rail mount design provides for easy mounting, and fast connections to other DIN rail equipment, including PLCs. The optional iDRN-PS-1000 power supply can power up to three UWTC-REC4 units, which can give you up to 144 wireless input channels, and 12 analogue outputs.

SPECIFICATIONS
Power: 12 to 24 Vdc @ 250 mA
Analogue Output: 4 independent, non-isolated, retransmission 0 to 5 Vdc, 0 to 10 Vdc or 4 to 20 mA
Alarms (Programmable): One per channel, rising/falling activation
Alarm Type: Open drain, 100 mA max Power, Output, Alarm Connection: Screw terminals
Operating Ambient: 0 to 55°C, 90% RH non-condensing Radio Frequency (RF) Transceiver
Carrier: ISM 2.4 GHz, direct sequence spread spectrum
RF Data Packet Standard: IEEE 802.15.4, open communication architecture
Enclosure: DIN rail (plastic)
Dimensions: 93 H x 39 W x 125 mm D

Interfaces Directly with PLCs and Multi-Channel Data Loggers to
Form a Complete Wireless Measurement and Control System!


Place Order(Specify Model Number)

What Other People Bought: When you see this icon, click on it to expand a list of products that other people have bought when they purchased this model.

Part Number/Desc.
Qty
RoHS
Description
Quick Ship
Click to expand/minimize a list of what others bought with theUWTC-REC4-MA
UWTC-REC4-MA
325,00
Availability: In Stock
RoHS compliant
48 channel DIN rail mount receiver with four 4-20mA analogue outputs and alarms
Quick Ship

UWTC-REC4-V1
325,00
Availability: 1 week
RoHS compliant
48 channel DIN rail mount receiver with four 0-5Vdc analogue outputs and alarms
Quick Ship

UWTC-REC4-V2
325,00
Availability: In Stock
RoHS compliant
48 channel DIN rail mount receiver with four 0-10Vdc analogue outputs and alarms
Quick Ship

UWTC-REC4-TC
325,00
Availability: 1 week
RoHS compliant
48 channel DIN rail mount receiver with four type K thermocouple outputs and alarms
Accessories
Quick Ship
Click to expand/minimize a list of what others bought with theRAIL-35-1
RAIL-35-1
9.70
Availability: 1 week
RoHS compliancy undetermined
35 mm DIN rail, 1 m length
Quick Ship
Click to expand/minimize a list of what others bought with theRAIL-35-2
RAIL-35-2
18.25
Availability: 1 week
RoHS compliancy undetermined
35 mm DIN rail, 2 m length
All amounts shown in EUR
Note: The UWTC-REC4 can be powered directly by the PLC or data logger you are connecting to and will not require an additional power source if the instrument has 12 to 24 Vdc @ 250 mA available for external devices. If your instrument does not have a power source available for external devices you will need to add an additional power supply to power the wireless receiver (iDRN-PS-1000). This power supply can power up to 3 UWTC-REC4 receivers.
Comes complete with measurement/data logging software, USB programming cable, and operator's manual.
