WS Series Strip Heater

WS Series

WS Series Strip Heater | WS Series

WS Series Strip Heater

144,00 WS-640/120V

CE RoHS
  • 2½ " (6 cm) Wide
  • Rugged, Reliable, Premium Quality
  • 400 to 1500 Watt
  • 2 Terminals at Right Angle At One End
  • CSA Certified

Description

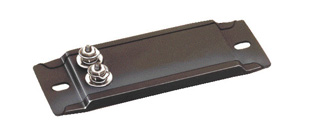

The OMEGALUX™ WS series strip heater features 2 terminals placed at a right angle on one end. A standard width of 2½ inches makes them ideal for most strip heater applications.

CAUTION AND WARNING
Fire and electrical shock may result if products are used improperly or installed or used by non-qualified personnel. See inside back cover for additional warnings.

dimensions

Dimensions—Inches (cm) Rust-Resisting Sheath Chrome Steel Sheath
A B D E No of
Mtg**
Hole
Watts W/In2† Model No. Watts W/In2 † Model No. Weight
Ib (kg)
6 1/2 (17)5 1/2 (14)5 (13)1 7/8 (5)240014WS-640/*50025WS-605/*.75 (0.3)
8 1/2 (22)7 1/2 (19)7 (18)1 7/8 (5)350016WS-850/*60019WS-806/*1.0 (0.4)
12 (30)11 (28)10 1/2 (27)3 3/8 (9)460012WS-1260/*80016WS-1208/*1.40 (0.6)
15 1/4 (39)14 1/4 (36)13 3/4 (35)2 5/8 (7)675011WS-1575/*100014WS-1501/*1.88 (0.9)
21 (53)20 (51)19 1/2 (50)2 3/8 (6)98508WS-2185/*125012WS-2101/*2.28 (1)
25 1/2 (65)24 1/2 (62)24 (61)2 7/8 (7)1110008WS-2510/*150012WS-2515/*2.63 (1.2)
If terminal housing is required with a WS strip heater, use a type SE-AC-1 mounted sideways. (See page C-23).
Ceramic post terminal insulators can also be used. (See page C-23).
* Designate voltage , i.e., insert 120 for 120 Vac or 240 for 240 Vac.
** 21/64 " diameter holes optional. Standard heaters have two mounting holes.
† To determine maximum allowable watt density, see Figures C-8 or C-9.
Place Order(Specify Model Number)
Part Number/Desc.
Qty
RoHS
Description
Quick Ship
WS-640/120V
144,00
Availability: 5 weeks
RoHS compliant
400 W, 120 V, Rust Resisting Iron Sheath Strip Heater
Quick Ship
WS-640/240V
149,00
Availability: 5 weeks
RoHS compliant
400 W, 240 V, Rust Resisting Iron Sheath Strip Heater
Quick Ship
WS-850/120V
137,00
Availability: 1 week
RoHS compliant
500 W, 120 V, Rust Resisting Iron Sheath Strip Heater
Quick Ship
WS-850/240V
124,00
Availability: 5 weeks
RoHS compliant
500 W, 240 V, Rust Resisting Iron Sheath Strip Heater
Quick Ship
WS-1260/120V
130,00
Availability: 7 weeks
RoHS compliant
600 W, 120 V, Rust Resisting Iron Sheath Strip Heater
Quick Ship
WS-1575/120V
139,00
Availability: 7 weeks
RoHS compliant
750 W, 120 V, Rust Resisting Iron Sheath Strip Heater
Quick Ship
WS-1575/240V
139,00
Availability: 5 weeks
RoHS compliant
750 W, 240 V, Rust Resisting Iron Sheath Strip Heater
Quick Ship
WS-2510/120V
168,00
Availability: 7 weeks
RoHS compliant
1000 W, 120 V, Rust Resisting Iron Sheath Strip Heater
Quick Ship
WS-2510/240V
168,00
Availability: 5 weeks
RoHS compliant
1000 W, 240 V, Rust Resisting Iron Sheath Strip Heater
Quick Ship
WS-605/120V
170,00
Availability: 5 weeks
RoHS compliant
500 Watt, 120 Volt, Chrome Steel Sheath Strip Heater
Quick Ship
WS-605/240V
186,00
Availability: 1 week
RoHS compliant
500 Watt, 240 Volt, Chrome Steel Sheath Strip Heater
Quick Ship
WS-806/120V
174,00
Availability: 5 weeks
RoHS compliant
600 Watt, 120 Volt, Chrome Steel Sheath Strip Heater
Quick Ship
WS-806/240V
174,00
Availability: 5 weeks
RoHS compliant
600 Watt, 240 Volt, Chrome Steel Sheath Strip Heater
Quick Ship
WS-1501/120V
194,00
Availability: 5 weeks
RoHS compliant
1000 Watt, 120 Volt, Chrome Steel Sheath Strip Heater
Quick Ship
WS-1501/240V
209,00
Availability: 5 weeks
RoHS compliant
1000 Watt, 240 Volt, Chrome Steel Sheath Strip Heater
Quick Ship
WS-2101/240V
285,00
Availability: 5 weeks
RoHS compliant
1250 Watt, 240 Volt, Chrome Steel Sheath Strip Heater
Quick Ship
WS-2515/240V
304,00
Availability: 5 weeks
RoHS compliant
1500 Watt, 240 Volt, Chrome Steel Sheath Strip Heater
All amounts shown in EUR
