High Performance Pressure Transducer, Stainless Steel Construction, Silicon Technology

PX309/PX319/PX329/PX359 mV Output Series

General purpose Pressure transducer, air pressure sensor, pneumatic sensor | PX309/PX319/PX329/PX359 mV Output Series

€305,32 PX319-100GV

PLACE ORDER
CE
  • FAST DELIVERY! Stock to 1-Week!
  • 5-Point NIST Traceable Calibration Included
  • Low Pressure Ranges: 0-1, 0-2 and 0-5 psi
  • Engineered Ranges: from 0-1 psi to 0-10,000 psi
  • Gauge and Absolute Pressure Ranges
  • Rugged All Stainless Steel Construction
  • State-of-the-art Silicon Technology
  • High Stability, Low Drift
  • High Accuracy --- 0.25% FS (BSL)
  • Premium Temperature Compensation
  • IP 65 Environmental Protection
  • NEW! M12 Connection Style PX359

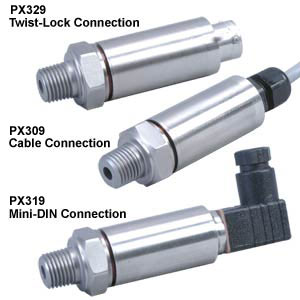

  • Four styles to choose from
    PX309 Cable Connection
    PX319 DIN Connection Style (mating connector included)
    PX329 Twist Lock Connection (mating connector sold separately)
    PX359 with M12 connector (mating cables sold separately)
Pressure Transducers - View related products

Description

Find how a Pressure Transducer works on this link or how we can customize your Pressure Sensor.

STATE-OF-THE-ART TECHNOLOGY
OMEGA’s PX309 Series high performance general purpose pressure transducers use two state-of-the-art silicon technologies. Pressure ranges below 100 psi use a high-accuracy silicon sensor protected by a fluid filled stainless steel diaphragm. Ranges 100 psi and above use high-accuracy silicon strain gauges molecularly bonded to the stainless steel diaphragm. Both systems provide a rugged sensor with high accuracy and excellent long term stability.
FAST DELIVERY ON MOST MODELS! Typical Lead time is stock or 2 weeks if not in stock.

Most Popular models are featured in the "To Order" below.
For the full selection of all models available, see the "Part Number Builder" below the "To Order" table.
Place Order(Specify Model Number)
Part Number/Desc.
Qty
Description
PX309 with 1.5 metre CABLE, mV/V OUTPUT, 1/4' NPT MALE PROCESS CONNECTION
Absolute Pressure Ranges
PX309-005AV
€521.15
Availability: 3 weeks

0-5 psia (0-0.34 bar) absolute pressure range.
PX309-015AV
€356.64
Availability: 1 week

0-15 psia (0-1 bar) absolute pressure range.
PX309-030AV
€381.45
Availability: 3 weeks

0-30 psia (0-2.1 bar) absolute pressure range.
PX309-050AV
€356.64
Availability: 1 week

0-50 psia (0-3.4 bar) absolute pressure range.
PX309-100AV
€356.64
Availability: 1 week

0-100 psia (0-6.9 bar) absolute pressure range.
PX309-200AV
€354.67
Availability: 19 weeks

0-200 psia (0-14 bar) absolute pressure range.
PX309-300AV
€343.88
Availability: 3 weeks

0-300 psia (0-21bar) absolute pressure range.
Gauge Pressure Ranges
PX309-001GV
€542.39
Availability: 1 week

0-1 psig (0-0.07 bar) gauge pressure range.
PX309-002GV
Consult Sales
Availability:


0-2 psig (0-0.14 bar) gauge pressure range.
PX309-005GV
Consult Sales
Availability:


0-5 psig (0-0.34 bar) gauge pressure range.
PX309-015GV
€316.66
Availability: 1 week

0-15 psig (0-1 bar) gauge pressure range.
PX309-030GV
€316.66
Availability: In Stock

0-30 psig (0-2.1 bar) gauge pressure range.
PX309-050GV
€316.66
Availability: 3 weeks

0-50 psig (0-3.4 bar) gauge pressure range.
PX309-100GV
€316.66
Availability: 1 week

0-100 psig (0-6.9 bar) gauge pressure range.
PX309-150GV
€316.66
Availability: 1 week

0-150 psig (0-10 bar) gauge pressure range.
PX309-200GV
€316.66
Availability: 1 week

0-200 psig (0-14 bar) gauge pressure range.
PX309-300GV
€316.66
Availability: 3 weeks

0-300 psig (0-21 bar) gauge pressure range.
PX309-500GV
€305.32
Availability: 1 week

0-500 psig (0-34 bar) gauge pressure range.
PX309-1KGV
€316.66
Availability: 1 week

0-1000 psig (0-69 bar) gauge pressure range.
PX309-2KGV
€316.66
Availability: 1 week

0-2000 psig (0-138 bar) gauge pressure range.
PX309-3KGV
€305.32
Availability: 1 week

0-3000 psig (0-207 bar) gauge pressure range.
PX309-5KGV
€316.66
Availability: 1 week

0-5000 psig (0-345 bar) gauge pressure range.
PX309-7.5KGV
€316.66
Availability: 1 week

0-7500 psig (0-517 bar) gauge pressure range.
PX309-10KGV
€316.66
Availability: 1 week

0-10,000 psig (0-690 bar) gauge pressure range.
PX319 MINI DIN CONNECTOR, mV/V OUTPUT, 1/4' NPT MALE PROCESS CONNECTION
Absolute Pressure Ranges
PX319-005AV
€516.56
Availability: 3 weeks

0-5 psia (0-0.34 bar) absolute pressure range.
PX319-015AV
€376.24
Availability: 1 week

0-15 psia (0-1 bar) absolute pressure range.
PX319-030AV
€376.24
Availability: 1 week

0-30 psia (0-2.1 bar) absolute pressure range.
PX319-050AV
€390.21
Availability: 1 week

0-50 psia (0-3.4 bar) absolute pressure range.
PX319-100AV
€390.21
Availability: 3 weeks

0-100 psia (0-6.9 bar) absolute pressure range.
PX319-200AV
€415.06
Availability: 1 week

0-200 psia (0-14 bar) absolute pressure range.
PX319-300AV
€390.21
Availability: 3 weeks

0-300 psia (0-21bar) absolute pressure range.
Gauge Pressure Ranges
PX319-001GV
Consult Sales
Availability:


0-1 psig (0-0.07 bar) gauge pressure range.
PX319-002GV
€535.75
Availability: 1 week

0-2 psig (0-0.14 bar) gauge pressure range.
PX319-005GV
Consult Sales
Availability:


0-5 psig (0-0.34 bar) gauge pressure range.
PX319-015GV
€323.64
Availability: 3 weeks

0-15 psig (0-1 bar) gauge pressure range.
PX319-030GV
€325.44
Availability: 3 weeks

0-30 psig (0-2.1 bar) gauge pressure range.
PX319-050GV
€316.66
Availability: 3 weeks

0-50 psig (0-3.4 bar) gauge pressure range.
PX319-100GV
€305.32
Availability: 19 weeks

0-100 psig (0-6.9 bar) gauge pressure range.
PX319-150GV
€316.66
Availability: 3 weeks

0-150 psig (0-10 bar) gauge pressure range.
PX319-200GV
€316.66
Availability: 1 week

0-200 psig (0-14 bar) gauge pressure range.
PX319-300GV
€338.70
Availability: 3 weeks

0-300 psig (0-21 bar) gauge pressure range.
PX319-500GV
€305.32
Availability: 19 weeks

0-500 psig (0-34 bar) gauge pressure range.
PX319-1KGV
€316.66
Availability: 3 weeks

0-1000 psig (0-69 bar) gauge pressure range.
PX319-2KGV
€336.83
Availability: 3 weeks

0-2000 psig (0-138 bar) gauge pressure range.
PX319-3KGV
€338.70
Availability: 1 week

0-3000 psig (0-207 bar) gauge pressure range.
PX319-5KGV
€336.83
Availability: 19 weeks

0-5000 psig (0-345 bar) gauge pressure range.
PX319-7.5KGV
€336.83
Availability: 3 weeks

0-7500 psig (0-517 bar) gauge pressure range.
PX319-10KGV
€316.66
Availability: 3 weeks

0-10,000 psig (0-690 bar) gauge pressure range.
PX329 TWIST LOCK CONNECTOR STYLE (mating connector sold separately see Accessories Below), mV/V OUTPUT, 1/4' NPT PROCESS CONNECTION
Absolute Pressure Ranges
PX329-005AV
€547.55
Availability: 3 weeks

0-5 psia (0-0.34 bar) absolute pressure range.
PX329-015AV
€433.15
Availability: 3 weeks

0-15 psia (0-1 bar) absolute pressure range.
PX329-030AV
€423.80
Availability: 3 weeks

0-30 psia (0-2.1 bar) absolute pressure range.
PX329-050AV
€423.79
Availability: 3 weeks

0-50 psia (0-3.4 bar) absolute pressure range.
PX329-100AV
€450.81
Availability: 3 weeks

0-100 psia (0-6.9 bar) absolute pressure range.
PX329-200AV
€433.15
Availability: 19 weeks

0-200 psia (0-14 bar) absolute pressure range.
PX329-300AV
€453.30
Availability: 3 weeks

0-300 psia (0-21bar) absolute pressure range.
Gauge Pressure Ranges
PX329-001GV
€547.55
Availability: 1 week

0-1 psig (0-0.07 bar) gauge pressure range.
PX329-002GV
€550.57
Availability: 1 week

0-2 psig (0-0.14 bar) gauge pressure range.
PX329-005GV
Consult Sales
Availability:


0-5 psig (0-0.34 bar) gauge pressure range.
PX329-015GV
€415.06
Availability: 3 weeks

0-15 psig (0-1 bar) gauge pressure range
PX329-030GV
€417.37
Availability: 3 weeks

0-30 psig (0-2.1 bar) gauge pressure range.
PX329-050GV
€415.06
Availability: 3 weeks

0-50 psig (0-3.4 bar) gauge pressure range.
PX329-100GV
€390.21
Availability: 3 weeks

0-100 psig (0-6.9 bar) gauge pressure range.
PX329-150GV
€390.21
Availability: 3 weeks

0-150 psig (0-10 bar) gauge pressure range.
PX329-200GV
€417.37
Availability: 1 week

0-200 psig (0-14 bar) gauge pressure range.
PX329-300GV
€417.37
Availability: 3 weeks

0-300 psig (0-21 bar) gauge pressure range.
PX329-500GV
€417.37
Availability: 19 weeks

0-500 psig (0-34 bar) gauge pressure range.
PX329-1KGV
€417.37
Availability: 3 weeks

0-1000 psig (0-69 bar) gauge pressure range.
PX329-2KGV
€417.37
Availability: 3 weeks

0-2000 psig (0-138 bar) gauge pressure range.
PX329-3KGV
€417.37
Availability: 1 week

0-3000 psig (0-207 bar) gauge pressure range.
PX329-5KGV
€390.21
Availability: 3 weeks

0-5000 psig (0-345 bar) gauge pressure range.
PX329-7.5KGV
€415.06
Availability: 3 weeks

0-7500 psig (0-517 bar) gauge pressure range.
PX329-10KGV
€395.08
Availability: 3 weeks

0-10,000 psig (0-690 bar) gauge pressure range.
ACCESSORIES
PT06V-10-6S-R
€44.00
Availability: In Stock

Vented Twist Lock Mating Connector for PX329 Gauge pressure models
PT06F10-6S-R
€44.76
Availability: 2 weeks

Non-Vented twist lock connector for use on Absolute Pressure PX329 models
CA-329-4PC24-015
€102.98
Availability: In Stock

15 ft (4.5m) Cable with mating twist lock connector for gauge or absolute pressure PX329 Models
CA-359-4PC22-2M
€113.38
Availability: 6 weeks

2 m (6ft) vented cable with M12 connector one end, flying leads other end for PX359 gauge pressure models
CA-359-4PC22-5M
€162.94
Availability: 6 weeks

5 m (16ft) vented cable with M12 connector one end, flying leads other end for PX359 gauge pressure models
CX5302
€40.32
Availability: 5 weeks

Extra 9.4 mm mini-DIN Connector for PX319 models
† All amounts shown in EUR
 Note: Mating connector for PX329 Series: PT06V-10-6S-R
PX359 Gauge Pressure models 300 psi and below require a vented cable, see Accessories in the
To Order Table.
 Ordering Example:  (1) PX329-100GV Pressure transducer 0-100 psig (0-6.9 bar) gauge with twist lock connector, €390.21

Part Number Builder

Build Your Part Number Below
Option Descriptions:


(1) Electrical Connection select from:
0 for 1.5 m (5’) Cable
1 for micro-DIN Connector
2 for Twist-Lock Connector
5 for M12 Connector

(2) Pressure Range select from:
for ABSOLUTE PRESSURE
005A for 5 psia
015A for 15 psia
030A for 30 psia
050A for 50 psia
100A for 100 psia
200A for 200 psia
300A for 300 psia
for GAUGE PRESSURE
001G for 1 psig
002G for 2 psig
005G for 5 psig
015G for 15 psig
030G for 30 psig
050G for 50 psig
100G for 100 psig
150G for 150 psig
200G for 200 psig
300G for 300 psig
500G for 500 psig
1KG for 1000 psig
2KG for 2000 psig
3KG for 3000 psig
5KG for 5000 psig
7.5KG for 7500 psig
10KG for 10000 psig
for
VACUUM
015V for 0 to -15 psig
for
COMPOUND GAUGE
015CG for -15 to +15 psig
V030G for -15 to +30 psig (not mV/V)
V050G for -15 to +50 psig (not mV/V)
V100G for -15 to +100 psig (not mV/V)
V150G for -15 to +150 psig (not mV/V)

(3) Electrical Output select from:
5V for 0 to 5 Vdc Output
V for mV/V Output
I for 4 to 20 mA Output
Note: All combinations may not be valid, check spec sheet for valid part numbers.
