PX309 Series High Performance Pressure Transducer

273,23 PX309-100GV

CE
  • High Performance Pressure Transducer with 5-Point NIST Traceable Calibration Included
  • FAST DELIVERY! Stock to 1-Week!
  • Low Pressure Ranges: 0-1, 0-2 & 0-5 psi
  • Engineered Ranges from 0-1 to 0-10,000 psi
  • Rugged All Stainless Steel Construction
  • Gauge or Absolute Pressure
  • Electrical Outputs include millivolts, 0-5 VDC & 4-20 mA
  • High Stability, Low Drift
  • 0.25% Static Accuracy Typical
  • IP 65 Protection Class
  • Now Available with M12 Connector, Order Model PX359
    (See Part Number Builder at bottom of page)

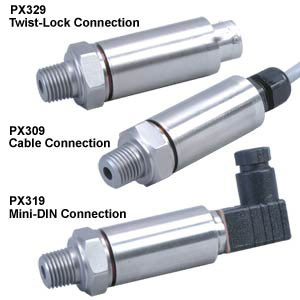

  • Four styles to choose from
    PX309 Cable Connection
    PX319 DIN Connection Style (mating connector included)
    PX329 Twist Lock Connection (mating connector sold separately)
    PX359 with M12 Connector (mating cables sold separately)
Pressure Transducers - View related products

Description

Find how a Pressure Transducer works on this link or how we can customize your Pressure Sensor.

The pressure transducer of the OMEGA’s PX309 uses two state-of-the-art silicon technologies. Pressure ranges below 100 psi use a high-accuracy silicon sensor protected by a fluid filled stainless steel diaphragm. Ranges 100 psi and above use high-accuracy silicon strain gauges molecularly bonded to the stainless steel diaphragm. Both systems provide a rugged sensor with high accuracy and excellent long term stability.

The PX309 is also available in metric configurations, with ranges from 0-70 mbar to 0-700 bar and G 1/4 (1/4"BSPP) metric fitting. Please see the PXM309 for complete details, or contact our Sales department for more information.


COMMON SPECIFICATIONS
Long-Term Stability (1 Year): ±0.25% typical
Typical Life: 10 million cycles
Operating Temperature: -40 to 85°C (-40 to 185°F)
Proof Pressure:
   All psia and <50 psig Ranges: 3x capacity or 20 psi, whichever is greater
   100 psig Ranges: 2x capacity
Burst Pressure: 500% of capacity or 25 psi, whichever is greater(exclusive of fitting)
Response Time: <1 ms
Shock: 50 g, 11 ms half-sine
Vibration: ±20 g
Protection Class: IP 65
Wetted Parts: 316 SS for all psia ranges and 1 to 50 psig; 17-4 PH SS for ranges 100 to 10,000 psig
Pressure Port: 1/4-18 MNPT
Electrical Connections:
    PX309: 1.5 m (5') 3-conductor cable
    PX319: 9.4 mm Mini DIN connector with mating connector included
    PX329: Twist-lock connector, mating connector sold separately (PT06V-10-6S)
    PX359: M12 connector, mating connector sold separately (P002414-1 or P002414-2)
Weight:
    PX309: 154 g (5.4 oz)
    PX319: 100 g (3.5 oz)
    PX329: 100 g (3.5 oz)
    PX359: 100 g (3.5 oz)


Cable Model PX309 is featured in the Place Order Table below. To order other models see the "Part Number Builder" below the "Place Order" table.
Place Order(Specify Model Number)
Part Number/Desc.
Qty
Description
MOST POPULAR MODELS SHOWN
RANGES FROM 1 PSI TO 10,000 PSI AVAILABLE --- SEE PART NUMBER BUILDER BELOW
mV Output Models
PX309-015GV
273.23
Availability: 2 weeks

0-15 psig (0-1 bar), Pressure Transducer with 1.5 m (5 ft cable)
PX309-030GV
273.23
Availability: In Stock

0-30 psig (0-2.1 bar), Pressure Transducer with 1.5 m (5 ft cable)
PX309-100GV
273.23
Availability: 1 week

0-100 psig (0-6.9 bar), Pressure Transducer with 1.5 m (5 ft cable)
PX309-300GV
273.23
Availability: 2 weeks

0-300 psig (0-21 bar), Pressure Transducer with 1.5 m (5 ft cable)
PX309-500GV
263.45
Availability: 1 week

0-500 psig (0-34 bar), Pressure Transducer with 1.5 m (5 ft cable)
PX309-1KGV
273.23
Availability: 1 week

0-1000 psig (0-69 bar), Pressure Transducer with 1.5 m (5 ft cable)
PX309-3KGV
263.45
Availability: 1 week

0-3000 psig (0-207 bar), PressureTransducer with 1.5 m (5 ft cable)
0-5 Vdc Output Models
PX309-015G5V
339.29
Availability: 1 week

0-15 psig (0-1 bar), Pressure Transducer with 1.5 m (5 ft cable)
PX309-030G5V
339.29
Availability: 2 weeks

0-30 psig (0-2.1 bar) , Pressure Transducer with 1.5 m (5 ft cable)
PX309-100G5V
339.29
Availability: 1 week

0-100 psig (0-6.9 bar), Pressure Transducer with 1.5 m (5 ft cable)
PX309-300G5V
339.29
Availability: 1 week

0-300 psig (0-21 bar), Pressure Transducer with 1.5 m (5 ft cable)
PX309-500G5V
333.06
Availability: 1 week

0-500 psig (0-34 bar), Pressure Transducer with 1.5 m (5 ft cable)
PX309-1KG5V
351.88
Availability: 1 week

0-1000 psig (0-69 bar), Pressure Transducer with 1.5 m (5 ft cable)
PX309-3KG5V
351.88
Availability: 1 week

0-3000 psig (0-207 bar), Pressure Transducer with 1.5 m (5 ft cable)
4 to 20 mA Output Models
PX309-015GI
351.88
Availability: 1 week

0-15 psig (0-1 bar), Pressure Transducer with 1.5 m (5 ft cable)
PX309-030GI
€351.88
Availability: 2 weeks

0-30 psig (0-2.1 bar) , Pressure Transducer with 1.5 m (5 ft cable)
PX309-100GI
€339.29
Availability: 1 week

0-100 psig (0-6.9 bar) , Pressure Transducer with 1.5 m (5 ft cable)
PX309-300GI
€351.88
Availability: 1 week

0-300 psig (0-21 bar) , Pressure Transducer with 1.5 m (5 ft cable)
PX309-500GI
€351.88
Availability: 1 week

0-500 psig (0-34 bar), Pressure Transducer with 1.5 m (5 ft cable)
PX309-1KGI
339.29
Availability: 1 week

0-1000 psig (0-69 bar) , Pressure Transducer with 1.5 m (5 ft cable)
PX309-3KGI
339.29
Availability: 1 week

0-3000 psig (0-207 bar) , Pressure Transducer with 1.5 m (5 ft cable)
PX359-005GI
472.34
Availability: 1 week

0-5 psig (0-345 mbar), Pressure Transducer with M12 connector
PX359-015GI
359.20
Availability: 1 week

0-15 psig (0-1bar), Pressure Transducer with M12 connector
ACCESSORIES
CX5302
34.52
Availability: 4 weeks

Extra 9.4 mm mini-DIN connector for PX319 models
PT06V-10-6S-R
37.96
Availability: In Stock

Vented twist lock connector for gauge or absolute pressure PX329 models
PT06F10-6S-R
38.61
Availability: In Stock

Non-Vented twist lock connector for absolute pressure PX329 models
CA-359-4PC22-2M
97.81
Availability: 1 week

2 m (6') Vented cable with M12 connector for PX359 Gauge pressure models
CA-359-4PC22-5M
140.59
Availability: 1 week

5 m (16') Vented cable with M12 connector for PX359 Gauge pressure models
All amounts shown in EUR
Note:
Download the specifications on the entire product line here or for on-line ordering and details on each output see the links in Related Products below or use the Part Number builder below on this site:
PX309-100MV for mV/V output models
PX309-5V for 0 to 5 Vdc output models or
PX309-MA for 4 to 20 mA output models
.

Part Number Builder

Build Your Part Number Below
Option Descriptions:


(1) Electrical Connection select from:
0 for 1.5 m (5') Cable
1 for micro-DIN Connector
2 for Twist-Lock Connector
5 for M12 Connector

(2) Pressure Range select from:
for ABSOLUTE PRESSURE
005A for 5 psia
015A for 15 psia
030A for 30 psia
050A for 50 psia
100A for 100 psia
200A for 200 psia
300A for 300 psia
for GAUGE PRESSURE
001G for 1 psig
002G for 2 psig
00 5G for 5 psig
015G for 15 psig
030G for 30 psig
050G for 50 psig
100G for 100 psig
150G for 150 psig
200G for 200 psig
300G for 300 psig
500G for 500 psig
1KG for 1000 psig
2KG for 2000 psig
3KG for 3000 psig
5KG for 5000 psig
7.5KG for 7500 psig
10KG for 10000 psig
for VACUUM
015V for 0 to -15 psig
for COMPOUND GAUGE
015CG for -15 to +15 psig
V030G for -15 to +30 psig (not mV/V)
V050G for -15 to +50 psig (not mV/V)
V100G for -15 to +100 psig (not mV/V)
V150G for -15 to +150 psig (not mV/V)

(3) Output select from:
V for mV/V Output
5V for 0 to 5 Vdc Output
I for 4 to 20 mA Output
Note: All combinations may not be valid, check spec sheet for valid part numbers.
