Temperature Controllers

CN740 Series

CN740 SERIES Temperature Controllers | CN740 Series

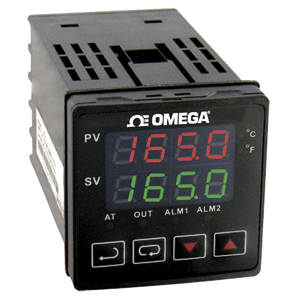

CN740 SERIES Temperature Controllers

151,61 CN743

1 year warranty CE
  • Temperature controller with Dual Display
  • Autotune
  • RS-485 Communications
  • Free Software
  • Alarm Functions
  • Thermocouple/ RTD Inputs
  • Output Status

Description

More information about how a PID Controllers works in this link.

The Temperature controllers of the CN740 Series offer accurate temperature measurement and control in a 1/16 DIN package. Designed for direct or reverse acting (cooling or heating) control, the CN740 Series can be programmed for simple ON/OFF or more complex PID control functions. PID control is supported with manual or autotuning. Select relay, DC pulse or current output for control methods. The CN740 Series accepts a variety of thermocouple and RTD inputs. Process value and set-point value are displayed simultaneously on the large dual LED. Auto-tuning, temperature units (°F or °C), and alarm status is also indicated on the faceplate. Two alarm outputs are included on the unit with 12 preprogrammed alarm functions.

Input Types Range
Pt100Ω RTD 0 to 100°C (32 to 212°F)
-20 to 500°C (-4 to 932°F)
-200 to 600°C (-328 to 1112°F)
B Thermocouple100 to 1800°C (212 to 3272°F)
S Thermocouple 0 to 1700°C (32 to 3092°F)
R Thermocouple 0 to 1700°C (32 to 3092°F)
N Thermocouple -200 to 1300°C (-328 to 2372°F)
E Thermocouple 0 to 600°C (32 to 1112°F)
T Thermocouple -20 to 400°C (-4 to 752°F)
-200 to 400°C (-328 to 752°F)
J Thermocouple -20 to 400°C (-4 to 752°F)
-100 to 850°C (-148 to 1562°F)
K Thermocouple -200 to 1300°C (-328 to 2372°F)
-200 to 500°C (-328 to 932°F)
L Thermocouple -200 to 500°C (-328 to 932°F)
U Thermocouple -200 to 800°C (-328 to 1472°F)
Specifications
Inputs: Thermocouple, RTD, see chart
Display: Two 4-digit, 7 segment 6.35 mm high LEDs
    PV: Red
    SV: Green
Accuracy: ±0.25% span, ±1 least significant digit
Supply Voltage: 100 to 240 Vac, 50/60 Hz
Power Consumption: 5 VA max
Operating Temperature: 0 to 50°C
Memory Backup: Nonvolatile memory
Control Output Ratings:
Relay: SPST, 5A @ 250 Vac resistive
Voltage Pulse: 14 Vdc, 10 to -20% (max 40 mA)
Current: 4 to 20 mA
Communication: RS-485 MODBUS® communication protocol
Panel Cut-Out: 45 mm square
Maximum Panel Thickness: 9.50 mm
Weight: 114 g
Front Panel Rating: IP66

Place Order(Specify Model Number)

What Other People Bought: When you see this icon, click on it to expand a list of products that other people have bought when they purchased this model.

Part Number/Desc.
Qty
Description
Click to expand/minimize a list of what others bought with theCN743
CN743
151,61
Availability: 13 weeks

Temperature controller with Relay output, with RS-485 communications*
Click to expand/minimize a list of what others bought with theCN742
CN742
151,61
Availability: 1 week

Temperature controller with DC pulse output, with RS-485 communications*

CN745
151,61
Availability: In Stock

Temperature controller with 4 to 20 mA output, with RS-485 communications*
Click to expand/minimize a list of what others bought with theCNQUENCHARC
CNQUENCHARC
€51,23
Availability: In Stock

Noise suppression kit, 110 to 230 Vac
Click to expand/minimize a list of what others bought with theDPP-4
DPP-4
984,26
Availability: 1 week

1/16 DIN Panel Punch
All amounts shown in EUR
Note: Comes with operator's manual.
* Free CN7-A software download
