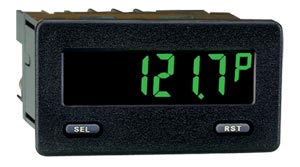

Digital Panel Meters For Temperature, Process, Voltage and Current

DP63000

Panel Meters For Temperature, Process, Voltage and Current | DP63000

Panel Meters For Temperature, Process, Voltage and Current

See All Models Below

2 year warranty CE
  • Thermocouple or RTD Input Models
  • Programmable Temperature Offset
  • Selectable °F or °C with 1 or 0.1 Degree Resolution
  • 3 Selectable Process Ranges
  • 0 to 10 Vdc, 0 to 20 mA, 0 to 50 mA
  • 4 Selectable DC Voltage Ranges
  • 0 to 200 mV, 2 V, 20 V, 200 V
  • 4 Selectable DC Current Ranges
  • 200 mA, 2 mA, 20 mA, 200 mA
  • LCD with Green/Red LED Backlight
  • 12.2 mm (0.48") H Digits
  • Optional Alarm Output Modules
  • Optional Serial Communication Modules (RS232 or RS485)
  • Operates from 9 to 28 Vdc Power Source (85 to 250 Vac Optional Supply)
  • Display Color Change Capability at Setpoint Output
  • NEMA 4X/IP65 Sealed Front Bezel
  • Minimum and Maximum Display Capture
Temperature & Process Meters, Timers and Counters - View related products

Description

The DP63000 Series provides the user the ultimate in flexibility, from its complete user programming to the optional setpoint control and communication capability. The DP63000-TC accepts a thermocouple input. The DP63000-RTD accepts an RTD input and both provide a temperature display in Celcius or Farenheit. The meter also features minimum and maximum display capture, display offset, °F or °C indicator, and programmable user input. The display can be toggled either manually or automatically between the selected displays. Other models include process, DC voltage or current input signal and provides a display in the desired unit of measure.
The DP63000 Series display has 12.2 mm (0.48") H digits. The LCD model is available in 2 versions, reflective and red/green backlight.

Note: The reflective display models have been discontinued due to low sales but some stock may still be available.

The backlight version is user selectable for the desired color and also has variable display intensity. The capability of the DP63000 can be easily expanded with the addition of option modules. Setpoint capability is field-installable with the addition of the setpoint output modules. Serial communications capability for RS232 or RS485 is added with a serial option module.
The DP63000 can be powered from an optional power supply that attaches directly to the back of a DP63000. The power supply is powered from 85 to 250 Vac and provides up to 400 mA to drive the unit and sensors.
Place Order(Specify Model Number)
Part Number/Desc.
Qty
Description
DP63000A-T
Consult Sales
Availability:


Thermocouple input, reflective display, 9 to 28 Vdc
DP63000B-T
Consult Sales
Availability:


Thermocouple input, backlight display, 9 to 28 Vdc
DP63000A-RTD
Consult Sales
Availability:


RTD input, reflective display, 9 to 28 Vdc
DP63000B-RTD
Consult Sales
Availability:


RTD input, backlight display, 9 to 28 Vdc
DP63000A-E
Consult Sales
Availability:


Process input, reflective display, 9 to 28 Vdc
DP63000B-E
Consult Sales
Availability:


Process input, backlight display, 9 to 28 Vdc
DP63000B-V
Consult Sales
Availability:


DC volt input, backlight display, 9 to 28 Vdc
DP63000A-I
Consult Sales
Availability:


DC current input, reflective display, 9 to 28 Vdc
DP63000B-I
Consult Sales
Availability:


DC current input, backlight display, 9 to 28 Vdc
Optional Plug-in Output Cards (Field Installable)
Setpoint Alarms (Only 1 Alarm Card Can Be Installed Into Base Meter)
DP6-RLY0
Consult Sales
Availability:


Single relay output card
DP6-SNK0
Consult Sales
Availability:


Dual sinking output card
Communications Accessory Card (Only 1 Communications Card Can Be Installed Into Base Meter)*
DP6-COM1
Consult Sales
Availability:


RS485 serial communications output card
DP6-COM2
€61.89
Availability: 1 week

RS232 serial communications output card
Accessories (Field Installable)
DP6-MLPS1
€69.73
Availability: 1 week

Micro-line Power Supply, 85 to 250 Vac
DP6-232-CABLE
€82.58
Availability: 1 week

RS232 Programming cable (DB9-RJ11)
DP6-485-CABLE
Consult Sales
Availability:


RS485 Programming cable (DB9-RJ11)
All amounts shown in EUR
Note: Comes with complete operator’s manual.
Note: Adding option cards—meters can be fitted with up to 2 optional plug-in card, however, only 1 card from each function type can be installed at a time. The function types include setpoint alarms and communications. The cards can be installed initially or at a later date. Each optional plug-in card is shipped with installation and programming instructions.
* Software is a free; download from www.omega.com.


Product Manuals:

Download DP63000A-T and DP63000B-T - Digital Panel Meter
Download DP63000A-I and DP63000B-I - Digital Panel Meter
Download DP63000A-V, DP63000B-V - Digital Panel Meter
Download DP63000A-RTD and DP63000B-RTD - Digital Panel Meter
Download DP63000A-E , DP63000B-E - Digital Panel Meter
