Industrial Flow Switches From 0.12 to 70 GPM Non-magnetic - ideal for Rusty Water

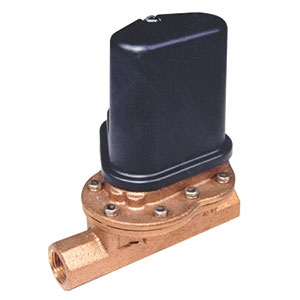

FSW-30A, FSW-31A and FSW-32A

^€648,20 FSW-30A

PLACE ORDER

Rugged Industrial Design
Switch Point Adjustable Without Removing Unit from Line
15 A SPDT Switch Directly Controls Pump
Easy Screw Terminal Wiring–No Soldering
NPT Threaded to Pipe Directly In-Line

Variable Area Flow Meters & Switches - View related products

Description

The FSW-30A flow switch is supplied with six orifices to provide 6 overlapping flow ranges from 0.12 to 8.0 GPM for water. The FSW-31 is supplied with 3 different drag discs to provide 3 overlapping ranges from 6 to 70 GPM for water. The orifices and drag discs can be changed while the switch is in-line, but not while operating. The FSW-32 operates over the range of 4-8 GPM for water.

SPECIFICATIONS
Relay switch: SPDT 15 A @ 125 or 250 Vac; 10,000,000 operations median
Sensitivity (% flow change required to activate switch): 5% at upper end of flow range, 25% at lower end of flow range
Max. Temperature/Pressure: 300 psig @ 82°C (180°F) max.
Min. Temperature: 4°C (40°F)
Wetted Parts: Red brass, 316 SS, phosphor bronze, Noryl^®, EPDM (and PVC for Models FSW-31, 32). Other materials of construction: Brass body, Noryl^® cover, stainless steel and plastic hardware
Pressure Drop:
   FSW-30A: 1 to 5 psi
   FSW-31A, FSW-32A (4 - 8 GPM range): 2 to 15 psi; all other ranges less than 2 psi
Electrical Cable Fitting: Water resistant for cable diameter 0.250" ±0.025"
Option “D” (dual SPDT relays):
   Nominal Differential Flow Between the Two Relay Actuation Points: 5%
Dimensions: 1.43 H x 125.5 mm W (5.63 x 4.94")
Weight: 1.59 kg (3.5 lb)

Place Order(Specify Model Number)

Part Number/Desc.

Qty

Description

FSW-30A

€648,20

Availability: 1 week

1/2 NPT, 0.12 TO 8.0 GPM Water Range

FSW-30A-D

€720,26

Availability: 6 weeks

1/2 NPT, 0.12 TO 8.0 GPM Water Range with 2 SPDT relays

FSW-31A

€503,51

Availability: 1 week

1 NPT, 6 to 70 GPM Water Range

FSW-31A-D

€582,22

Availability: 1 week

1 NPT, 6 to 70 GPM Water Range with 2 SPDT relays

FSW-32A

€444,17

Availability: 6 weeks

1 NPT, 4-8 GPM Water Range

FSW-32A-D

€498,17

Availability: 6 weeks

1 NPT, 4-8 GPM Water Range with 2 SPDT relays

† All amounts shown in EUR
Note: Comes complete with six orifice inserts and operator's manual.

Ordering Example: (1) FSW-30A-D Flow switch with flow range of 0.12 to 8.0 GPM (water) and 2 SPDT relays, €720,26
