NEMA 4X (IP66) Non-Metallic Fiberglass Pushbutton Enclosures for 22mm and 30mm Pushbuttons and Pilot Devises

OM-AMPB Series Push Button Enclosures

 Currency
1 year warranty RoHS

OM-AMPB Series Push Button Enclosures : NEMA 4X (IP66) Non-Metallic Fiberglass Pushbutton Enclosures for 22mm and 30mm Pushbuttons and Pilot Devises

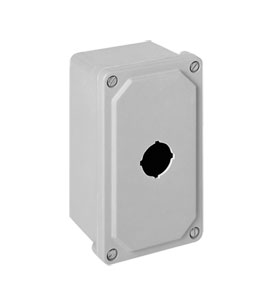

Click to enlarge image


EUR 35,50  OM-AM1PB
Suited for Higher Temperatures or Corrosive Environments
Protect Controls and Components Indoors or Outdoors
22 mm or 30mm Hole Sizes
UL 94 Flammability Rating
UV Stabilized for Outdoor Use
304 SS Hardware and Continuous Hinge
Optional Sub-Panels Available

View related products - NEMA Electrical Enclosures

Click to scroll below to order ANSI Specs Related Items

OM-AMPB Series non-metallic fiberglass pushbutton enclosures are designed to insulate and protect electrical controls and components in both indoor and outdoor applications and are especially well suited for higher temperatures and corrosive environments. These NEMA 4X (IP66) fiberglass pushbutton enclosures feature stainless steel continuous hinge.

CONSTRUCTION
  • Fiberglass Reinforced Polyester Formulation
  • Closed Cell Neoprene Seal Designed for NEMA 4X (IP66) Rating
  • 304 SS Continuous Hinge and Mounting Feet Included with SS Screws
SPECIFICATIONS
Service Temperature Rating: -35 to 130°C (-31 to 266°F)
Standards: UL Types 1, 2, 3, 4, 4x, 12 and 13; CSA Types 1, 2, 3, 3R, 4 4X, 12 and 13; NEMA Types 1, 2, 3, 3R, 4, 4X, 12 and 13; IEC Type IP66


To Order (Specify Model Number)
expand list What Other People Bought: When you see this icon, click on it to expand a list of products that other people have bought when they purchased this model.
     Part Number     Availability   Price   Description   RoHS   Qty
 30 mm Pushbutton Fiberglass Enclosures
    OM-AM1PB   1 Week   EUR 35,50    1 pushbutton enclosure, 6.75"H x 4"W x 3.63"D RoHS compliant
    OM-AM2PB   1 Week   EUR 36,00    2 pushbutton enclosure, 6.75"H x 4"W x 3.63"D RoHS compliant
    OM-AM3PB   1 Week   EUR 38,50    3 pushbutton enclosure, 9"H x 4"W x 3.63"D RoHS compliant
    OM-AM664HP4   1 Week   EUR 51,00    4 pushbutton enclosure, 6"H x 4"W x 4"D RoHS compliant
    OM-AM864HP6   5 Weeks   EUR 56,00    6 pushbutton enclosure, 8"H x 6"W x 4"D RoHS compliant
    OM-AM1084HP9   3 Weeks   EUR 78,00    9 pushbutton enclosure, 10"H x 8"W x 4"D RoHS compliant
    OM-AM1086HP9   3 Weeks   EUR 80,00    9 pushbutton enclosure, 10"H x 8"W x 6"D RoHS compliant
    OM-AM1086HP12   3 Weeks   EUR 84,00    12 pushbutton enclosure, 10"H x 8"W x 6"D RoHS compliant
    OM-AM1206HP16   3 Weeks   EUR 92,00    16 pushbutton enclosure, 12"H x 10"W x 6"D RoHS compliant
    OM-AM1206HP20   3 Weeks   EUR 95,00    20 pushbutton enclosure, 12"H x 10"W x 6"D RoHS compliant
    OM-AM1426HP25   3 Weeks   EUR 106,00    25 pushbutton enclosure, 14"H x 12"W x 6"D RoHS compliant
    OM-AM1648HP30   3 Weeks   EUR 119,00    30 pushbutton enclosure, 16"H x 14"W x 8"D RoHS compliant
    OM-AM1868HP42   5 Weeks   EUR 164,00    40 pushbutton enclosure, 18"H x 16"W x 8"D RoHS compliant
 22 mm Pushbutton Fiberglass Enclosures
    OM-AM1PB22   1 Week   EUR 35,50    1 pushbutton enclosure, 6.75"H x 4"W x 3.63"D RoHS compliant
    OM-AM2PB22   1 Week   EUR 36,00    2 pushbutton enclosure, 6.75"H x 4"W x 3.63"D RoHS compliant
    OM-AM3PB22   1 Week   EUR 38,50    3 pushbutton enclosure, 9"H x 4"W x 3.63"D RoHS compliant
    OM-AM664HP422   1 Week   EUR 51,00    4 pushbutton enclosure, 6"H x 4"W x 4"D RoHS compliant
    OM-AM864HP622   3 Weeks   EUR 56,00    6 pushbutton enclosure, 8"H x 6"W x 4"D RoHS compliant
    OM-AM1084HP922   3 Weeks   EUR 78,00    9 pushbutton enclosure, 10"H x 8"W x 4"D RoHS compliant
    OM-AM1086HP922   3 Weeks   EUR 80,00    9 pushbutton enclosure, 10"H x 8"W x 6"D RoHS compliant
    OM-AM1086HP1222   3 Weeks   EUR 84,00    12 pushbutton enclosure, 10"H x 8"W x 6"D RoHS compliant
    OM-AM1206HP1622   3 Weeks   EUR 92,00    16 pushbutton enclosure, 12"H x 10"W x 6"D RoHS compliant
    OM-AM1206HP2022   3 Weeks   EUR 95,00    20 pushbutton enclosure, 12"H x 10"W x 6"D RoHS compliant
    OM-AM1426HP2522   3 Weeks   EUR 106,00    25 pushbutton enclosure, 14"H x 12"W x 6"D RoHS compliant
    OM-AM1648HP3022   3 Weeks   EUR 119,00    30 pushbutton enclosure, 16"H x 14"W x 8"D RoHS compliant
    OM-AM1868HP4222   3 Weeks   EUR 164,00    40 pushbutton enclosure, 18"H x 16"W x 8"D RoHS compliant
 Accessories
    POWER CORD-SE-M16   1 Week   EUR 7,20    8' Power cord with M16 cable gland strain relief, 3x16 AWG, 250Vac max. RoHS compliancy undetermined
    SCE-6P6   1 Week   EUR 3,20    Steel Sub-panel for 6 x 6" enclosure RoHS compliant
    SCE-8P6   1 Week   EUR 4,00    Steel Sub-panel for 8 x 6" enclosure RoHS compliant
    SCE-10P8   1 Week   EUR 4,80    Steel Sub-panel for 10 x 8" enclosure RoHS compliant
    SCE-12P10   1 Week   EUR 6,40    Steel Sub-panel for 12 x 10" enclosure RoHS compliant
    SCE-14P12   1 Week   EUR 9,70    Steel Sub-panel for 14 x 12" enclosure RoHS compliant
Click to expand/minimize a list of what others bought with the SCE-16P14  SCE-16P14   1 Week   EUR 17,00    Steel Sub-panel for 16 x 14" enclosure RoHS compliant
    OM-P186   1 Week   EUR 24,00    Steel Sub-panel for 18 x 16" enclosure RoHS compliant
 Fiberglass Junction Boxes - with solid covers
    OM-AM743   1 Week   EUR 37,00    Non-metallic junction box with mounting feet, 6.75"H x 4"W x 3.88"D RoHS compliant
    OM-AM743SF   1 Week   EUR 31,50    Non-metallic junction box without mounting feet, 6.75"H x 4"W x 3.88"D RoHS compliant
    OM-PA74   1 Week   EUR 8,00    Sub-panel for OM-AM743 models

RoHS compliant
    OM-AM943   1 Week   EUR 39,50    Non-metallic junction box with mounting feet, 9"H x 4"W x 3.88"D RoHS compliant
    OM-AM943   1 Week   EUR 39,50    Non-metallic junction box without mounting feet, 9"H x 4"W x 3.88"D RoHS compliant
    OM-PA94   1 Week   EUR 9,70    Sub-panel for OM-AM943 models

RoHS compliant

 All 4 pushbutton and larger models are available without the hinge, they will have screws to hold the cover in place. To order these models, enter the model number without the letter "H". ex OM-AM664P4

  Reset



Note:
For 22 mm button holes add “22” to the end of the model number, no additional cost. Mounting feet included on 4 button or larger models.
