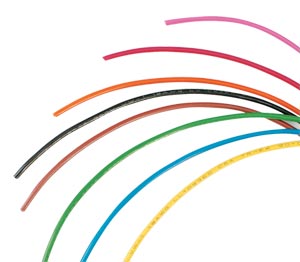

Single Conductor Copper Wire, PVC Insulation

HW3000 Series

Single Conductor Copper Wire and PVC Insulation | HW3000 Series

Single Conductor Copper Wire and PVC Insulation

See All Models Below

  • Insulation rated for - 40 to 105°C
  • 300V Voltage Rating
  • Stranded or Solid Tinned Copper Conductor
  • Colour-Coded PVC Insulation
  • UL AWM Styles 1007 and 1569
  • CSA TR-64
  • RoHS Compliant
  • Follow this link to check our wiring cable range

Description

PVC INSULATION UL 1007/1569, CSA TR-64
Model Number. CSA
mm²
AWG Cond. Dia mm Insulation
Thickness mm
Nom. O.D
mm
HW3047-(*)-(**) 0.049 30 7/0.1 0.41 1.1
HW3048-(*)-(**) 0.09 28 7/0.13 0.41 1.2
HW3049-(*)-(**) 0.13 26 7/0.16 0.41 1.3
HW3050-(*)-(**) 0.20 24 7/0.2 0.41 1.4
HW3051-(*)-(**) 0.32 22 7/0.25 0.41 1.7
HW3053-(*)-(**) 0.52 20 10/0.25 0.41 1.8
HW3055-(*)-(**) 0.82 18 16/0.25 0.41 2.0
HW3057-(*)-(**) 1.33 16 26/0.25 0.41 2.4
HW3050/1-(*)-(**) 0.20 24 Solid/0.5 0.41 1.4
HW3051/1-(*)-(**) 0.32 22 Solid/0.7 0.41 1.7
HW3053/1-(*)-(**) 0.52 20 Solid/0.9 0.41 1.8
HW3055/1-(*)-(**) 0.82 18 Solid/1.2 0.41 2.0
HW3057/1-(*)-(**) 1.33 16 Solid/1.6 0.41 2.4
* Specify colour code from chart below
** Specify Length "-100" for 30m/100ft or "-1000" for 300m/1000ft.


Code Colour Code Colour
1 White 9 Grey
2 Black 10 Violet
3 Red 12 White/Red
4 Green 14 White/Yellow
5 Yellow 16 White/Brown
6 Blue 17 White/Orange
7 Brown 19 White/Violet
8 Orange 28 Green/Yellow


Place Order(Specify Model Number)
Part Number/Desc.
Qty
Description
Examples of typical part numbers for wire is shown in this Ordering Box. Please use the Part Number Builder below to specify your actual wire part number
HW3047-1-100
Consult Sales
Availability:


7/0.1 mm wire with white PVC insulation, 30 m
HW3050-2-100
Consult Sales
Availability:


7/0.2 mm wire with black PVC insulation, 30 m
HW3050-3-100
Consult Sales
Availability:


7/0.2 mm wire with red PVC insulation, 30 m
HW3050-4-100
Consult Sales
Availability:


7/0.2 mm wire with green PVC insulation, 30 m
HW3051-9-100
Consult Sales
Availability:


7/0.25 mm wire with grey PVC insulation, 30 m
HW3050/1-3-100
Consult Sales
Availability:


0.5 mm solid wire with red PVC insulation, 30 m
Two Colour Striped Insulation
HW3057-28-100
Consult Sales
Availability:


26/0.25 mm wire with green/yellow PVC insulation, 30 m
HW3055-28-100
Consult Sales
Availability:


16/0.25 mm wire with green/yellow PVC insulation, 30 m
HW3055-12-100
Consult Sales
Availability:


16/0.25 mm wire with white/red PVC insulation, 30 m
HW3050-19-100
Consult Sales
Availability:


7/0.2 mm wire with white/violet PVC insulation, 30 m
All amounts shown in EUR

Part Number Builder

Build Your Part Number Below
Option Descriptions:


(1) Wire Size and Type select from:
47 for 7/0.1 mm stranded
48 for 7/0.13 mm stranded
49 for 7/0.16 mm starnded
50 for 7/0.2 mm stranded
51 for 7/0.25 mm stranded
53 for 10/0.25 mm starnded
55 for 16/0.25 mm stranded
57 for 26/0.25 mm stranded
50/1 for 0.1 mm Solid
51/1 for 0.7 mm Solid
53/1 for 0.9 mm Solid
55/1 for 1.2 mm Solid
57/1 for 1.6 mm Solid

(2) Colour select from:
1 for White
2 for Black
3 for Red
4 for Green
5 for Yellow
6 for Blue
7 for Brown
8 for Orange
9 for Grey
10 for Violet
30 for Pink
11 for White/Black
12 for White/Red
13 for White/Green
14 for White/Yellow
15 for White/Blue
16 for White/Brown
17 for White/Orange
18 for White/Grey
19 for White/Violet
28 for Green/Yellow

(3) Length select from:
100 for 30 m/100 feet
1000 for 300m /1000 feet
Note: All combinations may not be valid, check spec sheet for valid part numbers.
