Non-illuminated Heavy Duty/Oil Tight Push Buttons and Push Button Enclosures

OMPBD7 22mm Push Buttons

 Currency
NEW! CE

OMPBD7 22mm Push Buttons : Non-illuminated Heavy Duty/Oil Tight Push Buttons and Push Button Enclosures

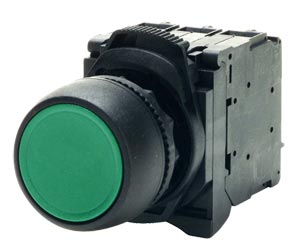

Click to enlarge image

EUR 19,25  OMPBD7M-F3PX01
Modular Design
Quick, Easy Installation with Tool-less Mounting Latch
Plastic Operators: NEMA 4/4X/13 (IP66) Environmental Rating
Metal Operators: NEMA 4/13 (IP66) Environmental Rating
Heavy-Duty Current Ratings (10A continuous)

View related products - Pilot Devices

Click to scroll below to order ANSI Specs Related Items

Omega’s rugged OMPBD7 pilot devices offer maximum flexibility and a wide choice for all applications. This 22 mm line is aesthetically appealing and modularly designed to make assembly and interchangeability easy. The OMPBD7 Push Button operators are available in two different body styles to meet every application need. Both operators exhibit a new lower profile stylish appearance while maintaining the rugged performance necessary for demanding environments.

What is Momentary vs Maintained?
When a pushbutton is pressed, it will open or close a circuit. A momentary pushbutton will allow the electrical contact to return to is original position when the pushbutton is released. A maintained pushbutton will keep the contacts in the changed position, it requires some additional action to return to is original position.

How does Momentary vs Maintained apply to Selector Switches?
2-Way and 3-Way selector switches come in multiple configurations, fixed positions or spring right return, spring left return or both. When you select a position and the switch remains in that position then the switch is considered maintained in all positions. With a spring right return or spring left return selector switch, the return position would be a maintained condition where the spring position would be a momentary position and the change in the contacts would only apply while the knob is held in position.

What is a Tool-Less Mounting Latch?
Quick, reliable and strong, it’s the best pilot device mounting latch available in the industry. Once the push button operator is installed in the panel, the Tool-Less latch pushes onto the back of the operator with a "click". Now you can snap on up to 6 contact blocks, with no tools.

Long Electrical and Mechanical Life

What are the Environmental Ratings?
Front elements, including push buttons, mushroom operators and selector switches, are IP 66 protection against submersion, oil and dirt, making them reliable in the toughest industrial environments. OMPBD7P is a plastic operator with a captive black plastic front bezel. Constructed of high-grade thermoplastics the OMPBD7P is the corrosion resistant solution for harsh environments and is rated NEMA Type 4/4X/13 & IP65/66 for use in wash down locations. For super tough applications, the OMPBD7M has a die-cast zinc housing and mounting ring for rugged durability. Both are finished with corrosion resistant chrome plating. The OMPBD7M also features a captive shiny metal bezel for a polished appearance. Metal operators are NEMA Type 4/13 & IP65/66 rated.


To Order (Specify Model Number)
expand list What Other People Bought: When you see this icon, click on it to expand a list of products that other people have bought when they purchased this model.
     Part Number     Availability   Price   Description      Qty

Complete Kits
Include push button operator, plastic tool-less latch and one contact block.

 Plastic Flush, Non-Illuminating, Momentary Push Buttons (Complete Kits) 22.5 mm
    OMPBD7P-F2PX01   1 Week   EUR 17,75    Plastic black pushbutton with 1 NC momentary-flush
    OMPBD7P-F2PX10   1 Week   EUR 17,75    Plastic black pushbutton with 1 NO momentary-flush
Click to expand/minimize a list of what others bought with the OMPBD7P-F3PX10  OMPBD7P-F3PX10   1 Week   EUR 17,75    Plastic green pushbutton with 1 NO momentary-flush
Click to expand/minimize a list of what others bought with the OMPBD7P-F4PX01  OMPBD7P-F4PX01   1 Week   EUR 17,75    Plastic red pushbutton with 1 NC momentary-flush
Click to expand/minimize a list of what others bought with the OMPBD7P-F4PX10  OMPBD7P-F4PX10   1 Week   EUR 17,75    Plastic red pushbutton with 1 NO momentary-flush
 Metal Flush, Non-Illuminating, Momentary Push Buttons (Complete Kits) 22.5 mm
    OMPBD7M-F2PX01   1 Week   EUR 19,25    Metal black pushbutton with 1 NC momentary-flush
Click to expand/minimize a list of what others bought with the OMPBD7M-F2PX10  OMPBD7M-F2PX10   1 Week   EUR 19,25    Metal black pushbutton with 1 NO momentary-flush
Click to expand/minimize a list of what others bought with the OMPBD7M-F3PX10  OMPBD7M-F3PX10   1 Week   EUR 19,25    Metal green pushbutton with 1 NO momentary-flush
    OMPBD7M-F4PX01   1 Week   EUR 19,25    Metal red pushbutton with 1 NC momentary-flush
Click to expand/minimize a list of what others bought with the OMPBD7M-F4PX10  OMPBD7M-F4PX10   1 Week   EUR 19,25    Metal red pushbutton with 1 NO momentary-flush
 Plastic Flush, Non-Illuminating, Maintained Push Buttons (Complete Kits) 22.5 mm
    OMPBD7P-FA2PX10E   1 Week   EUR 21,00    Maintained, black pushbutton with 1 NO contact (early make)
    OMPBD7P-FA2PX01   1 Week   EUR 21,00    Maintained, black pushbutton with 1 NC contact
    OMPBD7P-FA3PX01   1 Week   EUR 21,00    Maintained green pushbutton with plastic bezel & 1 NC contact
    OMPBD7P-FA3PX10E   1 Week   EUR 21,00    Maintained, green pushbutton with 1 NO contact (early make)
    OMPBD7P-FA4PX01   1 Week   EUR 21,00    Maintained, red pushbutton with 1 NC contact
    OMPBD7P-FA4PX10E   1 Week   EUR 21,00    Maintained black pushbutton with plastic bezel & 1 NO contact (early make)
 Metal Flush, Non-Illuminating, Maintained Push Buttons (Complete Kits) 22.5 mm
    OMPBD7M-FA2PX01   1 Week   EUR 22,50    Maintained black pushbutton with latch & 1 NC contact
    OMPBD7M-FA2PX10E   1 Week   EUR 22,50    Maintained black pushbutton with latch & 1NO contact (early make)
    OMPBD7M-FA3PX01   1 Week   EUR 22,50    Maintained green pushbutton with latch & 1 NC contact
    OMPBD7M-FA3PX10E   1 Week   EUR 22,50    Maintained black pushbutton with latch & 1NO contact (early make)
    OMPBD7M-FA4PX01   1 Week   EUR 22,50    Maintained red pushbutton with latch & 1 NC contact
    OMPBD7M-FA4PX10E   1 Week   EUR 22,50    Maintained black pushbutton with latch & 1 NO contact (early make)
 Metal, Non-Illuminating, Maintained Selector Switches (Complete Kits) 22.5 mm
    OMPBD7M-SM22PX01   1 Week   EUR 24,00    Metal, 2-position, maintained, black knob, 1 NC contact
    OMPBD7M-SR22PX01   1 Week   EUR 24,00    Metal, 2-position, right spring return, 1 NC contact
    OMPBD7M-HM22PX01   1 Week   EUR 25,00    Metal, 2-position, maintained, long knob, 1 NC contact
Click to expand/minimize a list of what others bought with the OMPBD7M-SM22PX10  OMPBD7M-SM22PX10   1 Week   EUR 24,00    Metal, 2-position, maintained, black knob, 1 NO contact
    OMPBD7M-HM22PX10   1 Week   EUR 25,00    Metal, 2-position, maintained, long knob, 1 NO contact
    OMPBD7M-SM32PX20   1 Week   EUR 32,00    Metal, 3-position, maintained, black knob, 2 NO contacts

Push Button Accessories

 Inscription Caps for Flush Monentary Push Buttons
    OMPBD7-AF301   1 Week   EUR 2,20    Green ''START'' cap for flush momentary pushbutton.
    OMPBD7-AF306   1 Week   EUR 2,20    Green ''I'' cap for flush momentary pushbutton.
    OMPBD7-AF402   1 Week   EUR 2,20    Red ''STOP'' cap for flush momentary pushbutton.
    OMPBD7-AF405   1 Week   EUR 2,20    Red ''O'' cap for flush momentary pushbutton.
 Tool-less Mounting Latch & Hole Size Adapter
    OMPBD7-ALM   1 Week   EUR 4,00    Tool-less mounting latch, metal
    OMPBD7-ALP   1 Week   EUR 3,20    Tool-less mounting latch, plastic
    OMPBD7-AHA1   1 Week   EUR 10,50    30mm to 22mm Adapter (mount 22mm PB's in 30mm holes), stainless steel
 Contact Blocks [Note: up to 6 contact blocks can be attached]
    OMPBD7-X01   1 Week   EUR 7,20    NC contact block contact block for momentary and maintained
    OMPBD7-X10   1 Week   EUR 7,20    NO contact block contact block for momentary and maintained
    OMPBD7-X10E   1 Week   EUR 7,20    NO early make contact block for momentary and maintained
    OMPBD7-X01L   1 Week   EUR 7,20    NC late break contact block for momentary and maintained
    OMPBD7-X10V   1 Week   EUR 12,00    NO low voltage contact block for momentary and maintained
    OMPBD7-X01V   1 Week   EUR 12,00    NC low voltage contact block for momentary and maintained
    OMPBD7-X01B   1 Week   EUR 12,00    NC early break contact block for momentary and maintained
    OMPBD7-X01S   1 Week   EUR 14,50    GCB Guardian contact block for E-Stops

Legend Plates
    OMPBD7-34BE100   1 Week   EUR 3,20    Blank Plate
    OMPBD7-34BE101   1 Week   EUR 4,00    ''AUTO''
    OMPBD7-34BE208   1 Week   EUR 4,00    ''START''
    OMPBD7-34BE212   1 Week   EUR 4,00    ''STOP''
    OMPBD7-34BE166   1 Week   EUR 4,00    ''ON''
    OMPBD7-34BE163   1 Week   EUR 4,00    ''OFF''
    OMPBD7-34BE170   1 Week   EUR 4,00    ''OPEN''
    OMPBD7-34BE107   1 Week   EUR 4,00    ''CLOSED''
    OMPBD7-34BE193   1 Week   EUR 4,00    ''RUN''

22mm Push Button Enclosures
 Aluminum NEMA 4/13 (IP66)
    OMPBD7-1MP   1 Week   EUR 68,00    One hole aluminum, gray
    OMPBD7-2MP   1 Week   EUR 81,00    Two hole aluminum, gray
    OMPBD7-3MP   5 Weeks   EUR 94,00    Three hole aluminum, gray
    OMPBD7-5MP   5 Weeks   EUR 122,00    Five hole aluminum, gray
 Plastic NEMA 4/4x13 (IP66)
    OMPBD7-1PP   1 Week   EUR 19,25    One hole plastic, gray
    OMPBD7-2PP   1 Week   EUR 26,50    Two hole plastic, gray
    OMPBD7-3PP   5 Weeks   EUR 33,00    Three hole plastic, gray
    OMPBD7-4PP   5 Weeks   EUR 40,00    Four hole plastic, gray
    OMPBD7-6PP   5 Weeks   EUR 54,00    Six hole plastic, gray
    OMPBD7-1YP   1 Week   EUR 19,25    One hole plastic, yellow
 NEMA 12 Front Slopping Push Button Enclosure
    SCE-1PBAI   1 Week   EUR 54,00    One hole steel, grey with hinge
    SCE-2PBAI   1 Week   EUR 62,00    Two hole steel, grey with hinge
    SCE-3PBAI   2 Weeks   EUR 70,00    Three hole steel, grey with hinge
    SCE-6PBAI   2 Weeks   EUR 103,00    Six hole steel, grey with hinge
    SCE-9PBAI   2 Weeks   EUR 121,00    Nine hole steel, grey with hinge
 NEMA 12 Push Button Enclosure
    SCE-1PBI   1 Week   EUR 36,00    One hole steel, grey
    SCE-2PBI   1 Week   EUR 41,00    Two hole steel, grey
    SCE-3PBI   1 Week   EUR 45,00    Three hole steel, grey
    SCE-6PBI   2 Weeks   EUR 66,00    Six hole steel, grey
    SCE-9PBI   2 Weeks   EUR 76,00    Nine hole steel, grey


Note:
Pushbuttons come with operator, color cap, mounting latch and 1 contact block.

Ordering Example:
(1) OMPBD7P-F3PX10 Plastic green momentary pushbutton, 1 NO contact, complete kit, EUR 17,75
 Part Number Builder
(1) (2) (3) (4)
O
O
M
M
P
P
B
B
D
D
7
7
-
-
P
P

Qty:



Option Descriptions
(1) Operator Construction
  Select
P for Plastic Operator with plastic bezel - type 4/4x/13-IP65
M for Metal Operator with metal bezel - type 4/13-IP65
(2) Operator Type - Includes Tool-less Latch
  Select
E for Extented Momentary
F for Flush Momentary
FA for Flush Maintained
MM4 for 40mm Mushroom Momentary
MM6 for 60mm Mushroom Momentary
MP4 for 40mm Mushroom Maintained Push-Pull - Red only
MT3 for 30mm Twist-To-Release E-Stop - Red only
MT4 for 40mm Twist-To-Release E-Stop - Red only
MT6 for 60mm Twist-To-Release E-Stop - Red only
MK4 for 40mm Twist-To-Release Keyed E-Stop - Red only
(3) Color
  Select
2 for Black
3 for Green
4 for Red
5 for Yellow
6 for Blue
9 for No Cap - select this option when ordering Inscription Caps for Flush Momentary Pushbuttons- caps sold serarately in accessories table above
(4) Contact Block - Select one contact block - order additional contact blocks separately in accessories table above
  Select
X01 for 1 NC Contact
X10 for 1 NO Contact
X10E for 1 NOEM Contact - use with maintained operators
X01S for 1 NC GCB - Guardian contact block used with E-Stop
 NOTE: All combinations may not be valid, check spec sheet for valid part numbers.
