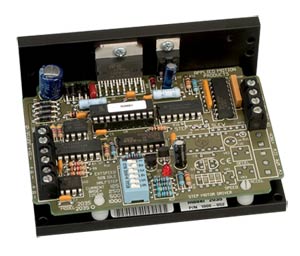

Stepper Motor Drive - Discontinued

2035

Stepper Motor Drive | 2035

Stepper Motor Drive

See All Models Below

CE
  • Wide Range of Motor Sizes
  • 70 W of Usable Power
  • Pulse Width Modulation Switching Amplifiers
  • DC Bus Voltage 12 to 35 Vdc Motor Supply (Including Ripple)
  • Phase Current from 0.125 to 2.0 A (Switch Selected, 16 Settings)
  • Step, Direction and Enable Inputs, Optically Isolated, 5 to 24V
  • Inputs Can be Sourcing (PNP) or Sinking (NPN) Type
  • Full and Half Step (Switch Selected)
  • Automatic 50% Idle Current Reduction (Switch Selected)
  • Compact Size: 38.1 x 67.2 x 101.6 mm (1.5 x 3 x 4")
  • CE Compliant

Description

The {product name or model} series has been discontinued.

Find how a Stepper motor works on this link.

The 2035 step motor driver is a step and direction drive with full or half-step capability. Phase current is selected from 0.125 to 2.0 A by a DIP switch. Full or half-step resolution is also switch selectable. This drive is compatible with PLCs which feature high-speed pulse output, such as our ELC-PLC series and OCS XL series.

All amounts shown in EUR
Note: To see torque-speed curves for recommended motors, click on "Specs" above.
