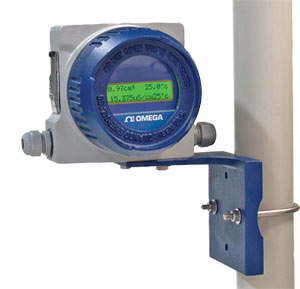

Conductivity or Resistivity Meter and Transmitter

CDTX441

See All Models Below

PLACE ORDER

Analyzer/Transmitter
Self-Guided Menu
Auto-Range Scale
Automatic Calibration and Check
Recognizes Standard and Cell
Programmable Transmitter Output
IP68 (NEMA 7X)
Intrinsically Safe Electronics

Description

The CDTX441 conductance/resistance analyzer is designed for online monitoring of process solutions and water applications. Applications include: waste water treatment, power plants, thermo electric plants, pharmaceutical, photographic industries and soft drinks industries. The menus are self guiding with simple three button programming. The transmitter output is also programmable from the keypad eliminating the need for potentiometer or dip-switch settings. The calibration function automatically recognizes the cell used and the buffer solution resulting in a simple and straight forward system calibration. Tough body construction in cast aluminum, finished with electrostatic epoxy paint. The enclosure has an IP68 (NEMA 7X) rating and Intrinsically Safe electronics inside. The 4 to 20 mA analog output has galvanic isolation of 2000 Vac (by opto coupler) and line resistance of 50Ω. The meter can be installed on a flat surface or on a 51 mm (2") tube.

SPECIFICATIONS
Housing: Cast aluminum (SAE323)
Finish: Electrostatic epoxy paint
Case: NEMA 7X (IP68)
Power: 24 Vdc @ 3.5 W
Operating Temperature: 5 to 40°C
Relative Humidity: 20 to 80%
Display: 2 lines x 16 characters LCD with 3 key programming
Weight: 2.2 Kg (3.0 lb)
Conductivity Range: 0.01uS/cm to 100mS/cm
Resistivity Range: 50Ω to infinity
Thermo Compensator: NTC-R typical 5Ω @ 25°C (77°F)
Analog Output: 4 to 20 mA
Optical Galvanic Isolation: 2000 Vac
Line Resistance: 500Ω

Cells
CDE-440-001:
    Range: 0.01uS to 2mS in SS, K = 0.01, 0 to 100°C (32 to 212°F), 10Kgf/cm²
    Insertion Length: 54 mm (2.1") (316 SS)
    Thread: ¾NPT (316 SS)
CDE-440-01:
    Range: 0.1uS to 20mS, K = 0.1, 0 to 130°C (32 to 266°F), 10Kgf/cm²
    Insertion Length: 42 mm (1.7") (316 SS)
    Thread: ¾NPT (316 SS)
CDE-440-1:
    Range: 0.1uS to 100mS, K = 1, 0 to 130°C (32 to 266°F), 10Kgf/cm²
    Insertion Length: 60 mm (2.4") (316 SS)
    Thread: ¾NPT (316 SS)
CDE-440-5:
    Range: 1uS to 150mS, K = 5, 0 to 130°C (32 to 266°F), 10Kgf/cm²
    Insertion Length: 60 mm (2.4") (PVDF)
    Thread: ¾NPT (316 SS)
CDE-440-01T:
    Range: 0.1uS to 20mS, K = 0.1, 0 to 200°C (32 to 392°F), 10Kgf/cm²
    Insertion Length: 90 mm (3.5") (316 SS)
    Thread: ¾NPT (316 SS)

Place Order(Specify Model Number)

Part Number/Desc.

Qty

Description

CDTX441

Consult Sales

Availability:

Conductivity/resistivity meter and transmitter

CDE-440-001

Consult Sales

Availability:

Conductivity sensor K = 0.01, 0.01µs to 2 ms

CDE-440-01

€682.76

Availability: 9 weeks

Conductivity sensor K = 0.1, 0.1 µs to 20 ms

CDE-440-1

€709.28

Availability: 9 weeks

Conductivity sensor K = 1, 0.1 µs to 100 ms

CDE-440-5

€740.86

Availability: 9 weeks

Conductivity sensor K = 5, 1 µs to 150 ms

CDE-440-01T

€966.00

Availability: 9 weeks

Conductivity sensor K = 0.1 heavy duty, 0.1 to 20 ms

Accessories

CDSA-10

€80.36

Availability: 1 week

10 micromho calibration solution 940 ml (1qt)

CDSA-45

€20.86

Availability: 1 week

45 micromho calibration solution 940 ml (1qt)

CDSA-450

€20.86

Availability: 1 week

450 micromho calibration solution 940 ml (1qt)

CDSA-1500

€20.86

Availability: 1 week

1500 micromho calibration solution 940 ml (1qt)

CDSA-4500

€20.86

Availability: 1 week

4500 micromho calibration solution 940 ml (1qt)

CDSA-45000

€21.26

Availability: 1 week

45000 micromho calibration solution 940 ml (1qt)

† All amounts shown in EUR
Note: Comes with 316SS hardware for mounting the display on a 51 mm (2") tube or wall, power cable and operator’s manual. Sensor sold separately.
Ordering Example: (1) CDE-440-1 Conductivity sensor K = 1.0, €709.28 plus (1) CDSA-1500 1500 micromho calibration solution, €20.86 , €709.28 + 20.86 = €730.14
