CN800 - Discontinued

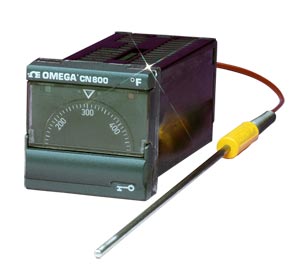

CN800 Series

 | CN800 Series

See All Models Below

2 year warranty CE

Description

SPECIFICATIONS
Power:
115/230 Vac, user-selectable; 50 to 60 Hz; preset to 115 Vac
Power Consumption: 3 VA
Output 1: SPDT mechanical relay, rated 5 A at 250 Vac, resistive load
Output 2: SPDT mechanical relay, rated 3 A at 250 Vac, resistive load
Setpoint 1: front dial adjustment
Setpoint 2: screwdriver adjustment within ±10% of temperature range relative to setpoint 1
Accuracy: 2% FS, within 5 to 95% or range
Accuracy Reference Conditions: 22°C ±2°C (72°F ±3.6°F), after 30 min. warm-up time
Proportional Band: 3% FS fixed Cycle Time: 25 s, nominal, fixed
On-Off Deadband: 2% FS, Fixed
Input Types: J, K, T, R, S thermocouples; 100 ohm Pt RTD, 2- or 3-wire
Sensor Burnout: upscale, automatic
Common Mode: negligible effect to 264 Vrms, 50/60 Hz
Normal Mode: negligible effect to full scale mV, 50/60 Hz
Ambient Temperature Range: to 50°C (32 to 130°F)
Dimensions: 48 H x 48 W x 97 mm D (1.89 x 1.89 x 3.8")
Panel Cutout: 45 mm (1.772") square
Weight: 250 g (9 oz)

Examples of pricing for popular models is referenced in the "To Order" box. Use the "Part Number Builder" below to get pricing for all available models.
Place Order(Specify Model Number)
Part Number/Desc.
Qty
Description
CN872RTD-500C
Consult Sales
Availability:


1/16 DIN Controller, RTD Input, 0 to 500 C
CN874J-500F
Consult Sales
Availability:


1/16 DIN Controller, J Input, 0 to 500 F
CN882K-500F
Consult Sales
Availability:


1/16 DIN Controller, K Input, 0 to 500 F
CN882RTD-500C
Consult Sales
Availability:


1/16 DIN Controller, RTD Input, 0 to 500 C
CN883K-1200F
Consult Sales
Availability:


1/16 DIN Controller, K Input, 0 to 1200 F
CN883J-500F
Consult Sales
Availability:


1/16 DIN Controller, J Input, 0 to 500 F
CN884T-NF
Consult Sales
Availability:


1/16 DIN Controller, T Input, -100 to 200 F
DPP-4
€984.26
Availability: 1 week

1/16 DIN Panel Punch
All amounts shown in EUR
Note: CN873 and CN883 Panel Mount with Push-On Connectors (supplied). CN872, CN874, CN882 and CN884 Plug-in or Panel Mount with Socket Mount Design. Mating Socket and Push-on Connectors Included.

Part Number Builder

Build Your Part Number Below
Option Descriptions:


(1) Output select from:
CN872 for Proportional on Output 1 & No Output 2 (Socket Connection)
CN873 for Proportional on Output 1 & No Output 2 (Push-On Connection)
CN874 for Proportional on Output 1 & On-Off on Output 2 (Socket Connection)
CN882 for On-Off on Output 1 & No Output 2 (Socket Connection)
CN883 for On-Off on Output 1 & No Output 2 (Push-On Connection)
CN884 for On-Off on Output 1 & On-Off on Output 2 (Socket Connection)

(2) Input Type & Range select from:
J-200F for J 0 to 200 F
J-300F for J 0 to 300 F
J-300C for J 0 to 300 C
J-500F for J 0 to 500 F
J-1200F for J 0 to 1200 F
K-500F for K 0 to 500 F
K-1200F for K 0 to 1200 F
K-1200C for K 0 to 1200 C
T-NF for T -100 to 200 F
T-NC for T -100 to 200 C
T-300C for T 0 to 300 C
R-1600C for R 0 to 1600 C
S-1600C for S 0 to 1600 C
RTD-NC for RTD -100 to 200 C
RTD-500C for RTD 0 to 500 C
Note: All combinations may not be valid, check spec sheet for valid part numbers.
