Linear Actuator Slides – Modular Pneumatic Automation Components

DLM Pneumatic Linear Motion Rail Slide

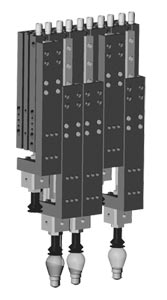

DLM_07M_09M_12M Series Robohand Rail Slides | DLM  Pneumatic Linear Motion Rail Slide

DLM_07M_09M_12M Series Robohand Rail Slides

See All Models Below

  • Highly Configurable Modular Automation— Exclusive Direct Connect™ Robohand Technology
  • Small Compact Guided Air Cylinders for Factory Automation
  • Single and Dual-Axis Linear Motion -Typical "PICK-N-PLACE" Automation Components
  • Modular Design Eliminates Adaptor Plates - Saves Machining and Assembly Time.
  • Linear Rail Slides Can be Mounted and Operated in any Direction
  • Precision Pneumatic Linear Motion— 25 to 100 mm of Travel with 0.005 mm (0.0001") Accuracy
  • Repeatability 0.08 mm (0.003") with pre-installed Precision Stop
  • Up to 5 Million Cycles in Typical Application—Up to 10 Million with Maintenance
  • Temperature Operating Range -35 to 80ºC (-30 to 180ºF)
  • Double Acting Pneumatic Cylinder Requiring 1.4 to 7 bar (20 to 100 psi) Dry Filtered (40 micron or Better) Air Supply Along with a 4-Way, 2 Position Valve

Description



DLM Linear Rail Slides are guided air cylinders that can be utilized in many industrial, R&D, lab, production and quality inspection applications from single direction to complex X-Y-Z motion. These pneumatic automation components, by Robohand , are used in typical Pick-N-Place applications and can handle small to medium size objects. Productivity improvements and cost reduction of repetitive task can be automated in some of the following applications: assembly; escapements; in-line directional changes; transfer of objects with precision movements. The DirectConnect technology from Robohand is a modular design that allows the addition of DRF Rotary Actuators and pneumatic grippers with out the need of adapter plates for additional savings through fast assembly and reduced machining time.

Pneumatic linear motion components are double acting air cylinders that require a dry air supply with filtering to 40 microns or better. For best control of pneumatic components, flow control valves (regulating out) should be installed to regulate the speed of the device. Position sensors can easily be added to motion components to detect the end of travel positions of the slides, they are the standard method of communication with the PLC and are available in inductive or magneto resistive sensing styles and come in both PNP or NPN sourcing signals.

Retract Stroke Adjustment 5 mm adjustment.
Dowel Holes Standard Slip fit dowel holes in body and tool plate.
Multiple Air Port Locations 4 standard airport location (bottom, back, and both sides).
Recirculating Ball Bearings Rail Slide Preloaded for accuracy, built-in ball retention
Magneto Resistive Sensing Mounting slots and magnet are standard for up to eight sensors (sensors sold separately).
Thru-Body Mounting C'bored holes for socket head cap screw on both sides.
Precision Stops Delrin® internal stops are standard for increased repeatability.
Mounting Patterns Mounting on all six sides (standard)
Bearing Seals Bearing blocks are equipped with low friction seals.
Manifold Air Ports Bottom air ports are C’bored for O-ring manifold seals.
Precision Tool Plate Position Adjustment 5 mm adjustment.
Double Bearing (-D Option) Three longer stroke sizes available with two bearings as an option for greater moment capacity. (Consult sales)
Place Order(Specify Model Number)
Part Number/Desc.
Qty
Description
DLM-07M Models have a maximum Force of 66.7 N (15 lbs)
DLM-07M-12-12-P
Consult Sales
Availability:


Rail Slide with 12mm (0.50") Stroke
DLM-07M-25-15-P
481.92
Availability: 1 week

Rail Slide with 15mm (0.59") Stroke
DLM-07M-25-25-P
Consult Sales
Availability:


Rail Slide with 25mm (1.00") Stroke
DLM-07M-38-38-P
Consult Sales
Availability:


Rail Slide with 38mm (1.50") Stroke
DLM-07M-50-50-P
Consult Sales
Availability:


Rail Slide with 50mm (1.96") Stroke
DLM-09M Models have a maximum Force of 138 N (31 lbs)
DLM-09M-25-25-P
693.19
Availability: 1 week

Rail Slide with 25mm (1.00") Stroke
DLM-09M-50-50-P
597.36
Availability: 13 weeks

Rail Slide with 50mm (2.00") Stroke
DLM-09M-75-75-P
Consult Sales
Availability:


Rail Slide with 75mm (3.00") Stroke
DLM-09M-100-100-P
Consult Sales
Availability:


Rail Slide with 100mm (3.93") Stroke
DLM-12M Models have a maximum Force of 231 N (52 lbs)
DLM-12M-25-25-P
627.45
Availability: 1 week

Rail Slide with 25mm (1.00") Stroke
DLM-12M-50-50-P
Consult Sales
Availability:


Rail Slide with 50mm (2.00") Stroke
DLM-12M-75-75-P
868.08
Availability: 1 week

Rail Slide with 75mm (3.00") Stroke
DLM-12M-100-100-P
776.17
Availability: 1 week

Rail Slide with 100mm (4.00") Stroke
Sensor Accessories
OHSN-011
€153.64
Availability: 13 weeks

NPN magneto resistive sensor 90º barrell with quick disconnect fitting
OHSP-011
€219.98
Availability: 1 week

PNP magneto resistive sensor, 90º barrell with quick disconnect fitting
OHSN-017
€153.64
Availability: 1 week

NPN magneto resistive sensor short barrell with quick disconnect fitting
OHSP-017
€217.36
Availability: 1 week

PNP magneto resistive sensor short barrell with quick disconnect fitting
CABL-010
€52.69
Availability: 1 week

2 m (5') sensor extension cable with quick disconnect fitting
CABL-013
€91.13
Availability: 13 weeks

5 m (16') sensor extension cable with quick disconnect fitting
PNEUMATIC ACCESSORIES See Related Links for Additional Accessory Selections
TYUTH95-532332-100
€26.51
Availability: 5 weeks

Polyurethane 4mm (5/32") tubing 100 ft, assorted colors in stock
TYUTH95-14160-100
€57.41
Availability: 5 weeks

Polyurethane 1/4' tubing 100 ft, assorted colors in stock
OM-AIR-C0K510405
Consult Sales
Availability:


Push-to-connect Flow Control (regulating out) valve, M5 thread - 4mm (5/32") OD
OM-AIR-C2VA00405
Consult Sales
Availability:


Push-to-connect Flow Control valve (regulating out), M5 thread - 1/4" OD
