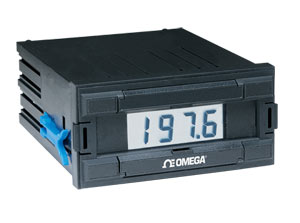

Loop Powered 1/8 DIN Process Indicator


loop powered process meter | DP35

loop powered process meter

See All Models Below

1 year warranty CE
  • 3 1/2 Digit Display
  • User-Selectable Inputs
  • 0.2% Accuracy
  • Scalable to Engineering Units, with Selectable Decimal Point


The DP35 is an 1/8 DIN loop powered process indicator that can be jumper configured to select one of three input ranges, 1-5 mA, 4-20 mA or 10-50 mA. The DP35 can be scaled for both zero and span to display in engineering units and has jumper selectable decimal point position.

For full product specifications view pdf file in "Related Links" below
Place Order(Specify Model Number)
Part Number/Desc.
Consult Sales
1/8 DIN LCD process indicator, loop powered
All amounts shown in EUR
Note: Comes with complete operator’s manual.
