Digital Pressure Gauge For Hygienic/Clean-In-Place Applications. High 0.08% Accuracy  - Currently Not Available

DPGM409S Series

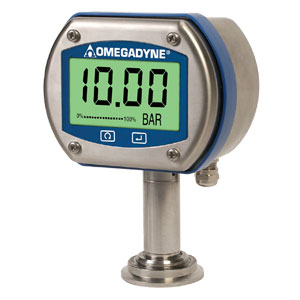

DPGM409S Series Digital Pressure Gauge For Hygienic/Clean-In-Place Applications | DPGM409S Series

1.224,00 DPGM409S15-010BG

CE
  • Easy to Read 25 mm (1") Backlit LCD Display
  • High 0.08% Accuracy Typical
  • Hi and Lo Alarms Standard
  • MIN/MAX/AVG Reading
  • User Selectable Analog Output 0 to 5 Vdc, 0 to 10 Vdc or 4 to 20 mA
  • Data Logging and Charting Software Included
  • Tested to Industrial CE Standards
  • Battery Powered with Long Battery Life
  • 5-Point NIST Traceable Calibration Certificate

Description

Click on this link if you need more information about Sanitary Sensors.

OMEGA's DPGM409S Hygienic/ CIP digital pressure gauges incorporate a rugged 316 SS enclosure designed for washdown and marine applications with a precision 0.08% accuracy pressure transducer with 316L SS wetted parts and body. The result is an extremely durable digital pressure gauge designed to survive harsh industrial environments. The large 25 mm display is easy to read at a distance up to 11 m. Models are available in gauge, sealed gauge, compound gauge, absolute, vacuum and barometric pressure ranges.

Standard features include a highly stable silicon sensor, selectable MIN/MAX and AVG readings, Hi and LO alarms and an externally powered user selectable analog output. Power is from an internal long life battery (included) or an externally supplied dc voltage source. Each unit is supplied with configuration software that allows the user connect to a pc via a standard USB connection (cable included) and select a variety of user configurable features including update rate, dampening, units, backlight and auto off. The analog output can also be independently scaled from the display.

For 2" fitting: change "S15" in model number to "S20" no extra charge
Place Order(Specify Model Number)
Part Number/Desc.
Qty
Description
Gauge Pressure Models, 1.5" Fitting
DPGM409S15-025HG
1,307.00
Availability: 9 weeks

Range; 0 to 25 mbar; 0 to 10 inH2O gage
DPGM409S15-070HG
1,307.00
Availability: 9 weeks

Range; 0 to 70 mbar; 0 to 1 psig
DPGM409S15-170HG
1,307.00
Availability: 9 weeks

Range; 0 to 170 mbar; 0 to 2.5 psig
DPGM409S15-350HA
1,381.00
Availability: 9 weeks

Range; 0 to 350 mbar; 0 to 5 psig
DPGM409S15-001BG
1,224.00
Availability: 9 weeks

Range; 0 to 1 bar; 0 to 15 psig
DPGM409S15-002BG
Consult Sales
Availability:


Range; 0 to 2 bar; 0 to 30 psig
DPGM409S15-3.5BG
1,224.00
Availability: 9 weeks

Range; 0 to 3.5 bar; 0 to 50 psig
DPGM409S15-007BG
1,224.00
Availability: 1 week

Range; 0 to 7 bar; 0 to 100 psig
DPGM409S15-010BG
1,224.00
Availability: 9 weeks

Range; 0 to 10 bar; 0 to 150 psig
DPGM409S15-17.5BG
1,224.00
Availability: 9 weeks

Range; 0 to 17.5 bar; 0 to 250 psig
DPGM409S15-035BG
Consult Sales
Availability:


Range; 0 to 35 bar; 0 to 500 psig
DPGM409S15-040BG
Consult Sales
Availability:


Range; 0 to 40 bar; 0 to 600 psig
Absolute Pressure Models, 1.5" Fitting
DPGM409S15-350HA
1,381.00
Availability: 9 weeks

Range; 0 to 350 mbar absolute; 0 to 5 psia
DPGM409S15-001BA
Consult Sales
Availability:


Range; 0 to 1 bar absolute; 0 to 15 psia
DPGM409S15-002BA
1,307.00
Availability: 9 weeks

Range; 0 to 2 bar absolute; 0 to 30 psia
DPGM409S15-3.5BA
Consult Sales
Availability:


Range; 0 to 3.5 bar absolute; 0 to 50 psia
DPGM409S15-007BA
Consult Sales
Availability:


Range; 0 to 7 bar absolute; 0 to 100 psia
DPGM409S15-010BA
Consult Sales
Availability:


Range; 0 to 10 bar absolute; 0 to 150 psia
DPGM409S15-17.5BA
Consult Sales
Availability:


Range; 0 to 17.5 bar absolute; 0 to 250 psia
DPGM409S15-035BA
Consult Sales
Availability:


Range; 0 to 35 bar absolute; 0 to 500 psia
DPGM409S15-040BA
Consult Sales
Availability:


Range; 0 to 40 bar absolute; 0 to 600 psia
Vacuum Pressure Models, 1.5" Fitting
DPGM409S15-025HV
Consult Sales
Availability:


Range; 0 to -25 mbar; 0 to -10 inH2O gage
DPGM409S15-070HV
Consult Sales
Availability:


Range; 0 to -70 mbar; 0 to -1 psig
DPGM409S15-170HV
Consult Sales
Availability:


Range; 0 to -170 mbar; 0 to -2.5 psig
DPGM409S15-350HV
Consult Sales
Availability:


Range; 0 to -350 mbar; 0 to -5 psig
DPGM409S15-001BV
1,346.00
Availability: 9 weeks

Range; 0 to -1 bar; 0 to -15 psig
Compound Gauge Ranges, 1.5" Fitting
DPGM409S15-025HCG
1,454.00
Availability: 9 weeks

Range; +/- 25 mbar; +/-10 inH2O gage
DPGM409S15-070HCG
Consult Sales
Availability:


Range; +/-70 mbar, PSI; +/-1 psig
DPGM409S15-170HCG
Consult Sales
Availability:


Range; +/-170 mbar, PSI; +/-2.5 psig
DPGM409S15-350HCG
Consult Sales
Availability:


Range; +/-350 mbar, PSI; +/-5 psig
DPGM409S15-001BCG
1,381.00
Availability: 9 weeks

Range; +/-1 bar, PSI; +/-15 psig
Barometric Ranges, 1.5" Fitting
DPGM409S15-1100HB
Consult Sales
Availability:


Range; 0 to 1100 hPa; 0 to 32.00 inHg
DPGM409S15-550HB
Consult Sales
Availability:


Range; 550 to 1100 hPa; 16 to 32.00 inHg
DPGM409S15-880HB
Consult Sales
Availability:


Range; 880 to 1100 hPa;16 to 32.00 inHg
All amounts shown in EUR
Note: Comes complete with operator’s manual, set-up and configuration software, magnetic stylus, USB cable, 2.7 m analogue output cable with ferrite core, one 3.6V lithium C cell battery and 5-pt NIST traceable calibration.

Part Number Builder

Build Your Part Number Below
Option Descriptions:


(1) Sanitary Fitting select from:
15 for 1.5 inches Tri-Grip
20 for 2 inch Tri-Grip

(2) Range select from:
-025HG for 0 to 25 mbar Gauge
-070HG for 0 to 70 mbar Gauge
-170HG for 0 to 170 mbar Gauge
-350HG for 0-350 mbar Gauge
-001BG for 0-1 bar Gauge
-002BG for 0-2 bar Gauge
-3.5BG for 0-3.5 bar Gauge
-007BG for 0-7 bar Gauge
-010BG for 0-10 bar Gauge
-017BG for 0-17.5 bar Gauge
-035BG for 0-35 bar Gauge
-040BG for 0-40 bar Gauge
-350HA for 0-350 mbar Absolute
-001BA for 0-1 bar Absolute
-002BA for 0-2 bar Absolute
-3.5BA for 0-3.5 bar Absolute
-007A for 0-7 bar Absolute
-010A for 0-10 bar Absolute
-017A for 0-17.5 bar Absolute
-035BA for 0-35 bar Absolute
-040BA for 0-40 bar Absolute
-025HV for 0 to -25 mbar Vacuum
-070HV for 0 to -70 mbar Vacuum
-170HV for 0 to -170 mbar Vacuum
-350HV for 0 to -350 mbar Vacuum
-001BV for 0 to -1 bar Vacuum
-025HCG for +/-25 mbar Compound Gauge
-070HCG for +/-70 mbar Compound Gauge
-170HCG for +/-170 mbar Compound Gauge
-350HCG for +/-350 mbar Compound Gauge
-001BCG for +/-1 bar Compound Gauge
-1100HB for 0-1100 mbar Barometric
-550HB for 550-1100 mbar Barometric
-880HB for 880-1100 mbar Barometric

(3) Wireless Option select from:
for
-W for Wireless Option
Note: All combinations may not be valid, check spec sheet for valid part numbers.
