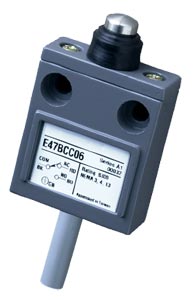

Limit Switch, Prewired, Compact

E47BCC Series

See All Models Below

PLACE ORDER

Rugged Aluminum Alloy Die Cast Housing
Sealed Construction With Enclosure Ratings of NEMA 4, 6 and 13
Prewired With 3 m of 18 AWG, AWM 2517, 300V Cable
Stackable Ridge for Ganged Operation

Description

The E47 Compact Prewired Limit Switch is designed to be a versatile, slim device for hard to fit applications where sealing integrity is required. The rugged die cast aluminum alloy housing, cable connection and switch mechanism are encapsulated for protection against extreme temperature (-10 to 70°C), contaminants, moisture, shock and vibration. This factory wired (3 m) device has NEMA enclosure ratings of 4, 6 and 13, making it suitable for applications such as machine tool, food processing and packaging.

SPECIFICATIONS
Contacts: 1-SPDT (Form C)
Mechanical Life: 10,000,000 operations
Electrical Life: 200,000 operations, 30 operation/min at rated load
Operating Speed: 30 operations per minute maximum
Operating Temperature Range: 10 to 70°C (14 to 158°F)
Storage Temperature Range: 10 to 70°C (14 to 158°F)
Humidity: 95% maximum noncondensing
Vibration: Malfunction durability, 10 to 55 Hz 1.5 mm double amplitude
Shock: Malfunction durability, approximately 50 g
Enclosure Ratings: NEMA 4, 6 and 13; IEC IP67

MODEL NUMBER	ACTUATOR TYPE	OPERATING FORCE	RESET FORCE	OVERTRAVEL	PRETRAVEL	MOVEMENT	OPERATING
		(MAXIMUM)	(MINIMUM)	(MINIMUM)		DIFFERENTIAL	POSITION
E47BCC06	Sealed Plunger	1.8 kg(63.5 oz)	450g (15.9 oz)	3 mm (0.118")	1.8 mm (0.07")	0.2 mm (0.008")	24.9 ± 1 mm ( 0.99 ± 0.04")
E47BCC07	Roller Plunger	1.2 kg (42.3 oz)	450g (15.9 oz)	3 mm (0.118")	1.8 mm (0.07")	0.2 mm (0.008")	28.5 ± 1 mm (1.12 ± 0.04")
E47BCC15	Roller Lever	580g (20.5 oz)	150g (5.3 oz)	40°	25° max	3°	–

Place Order(Specify Model Number)

Part Number/Desc.

Qty

Description

E47BCC06

Consult Sales

Availability:

Pre-assembled, prewired, 1 N O / 1 NC, sealed plunger

E47BCC07

Consult Sales

Availability:

Pre-assembled, prewired, 1 N O / 1 N C, roller plunger

E47BCC15

Consult Sales

Availability:

Pre-assembled, prewired, 1 N O / 1 N C, side-rotary lever

† All amounts shown in EUR
Note: Comes with instruction sheet.
