ELC Programmable Logic Controllers (PLCs)

ELC-PLC Series

ELC Programmable Logic Controllers (PLCs) | ELC-PLC Series

ELC Programmable Logic Controllers (PLCs)

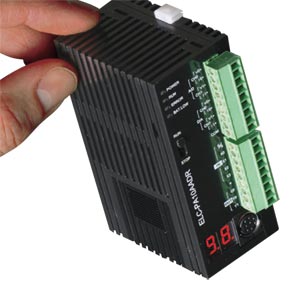

435,00 ELC-PA10AADR

1 year warranty CE
  • Base Models with 10 to 28 I/O, Expandable to 256
  • Half the Size of Most PLCs
  • 1-, 4-, 8-, 16-and 32-Bit Instructions
  • DIN Rail Mountable, No Rack Required
  • Built-in Integral LCD Display (PA models)
  • High-level Network Access - Modbus TCP, DeviceNet and Profibus
  • Remote Modules for Analogue I/O, Digital I/O, Thermocouples and Pt100 RTDs

Description

The Eaton Logic Controller (ELC) is Eaton Cutler-Hammer’s latest offering into the PLC (Programmable Logic Controller) market. Less than half the size of a typical brick PLC, the ELC is a micro-PLC with features previously found only in larger, much more expensive rack-mount PLCs:
  • Built-in digital and analogue I/O for low-cost standalone control
  • Local I/O expandable to 256; I/O expansion modules connect easily with no extra wiring
  • Removable terminal blocks for easy wiring
  • 2 serial ports with Modbus RTU supported on both
  • Real-time clock/calendar
  • High-speed pulse inputs and outputs
  • Powerful instruction set:
    --- Floating point maths
    --- Trig functions
    --- Clock/calendar instructions
    --- Modbus RTU/ASCII instructions
    --- High-speed pulse capture/pulse output
    --- Interrupts
    --- Matrix operations
    --- Retentive data storage
    --- Stepper motor positioning control
    --- PID functions with Autotune
    --- Fuzzy temperature control
With the ELC, I/O can be local or highly distributed. All of the ELC special and analogue modules (analogue I/O, thermocouple, RTD, motion control) are capable of remote connection via a 2-wire RS485 interface using Modbus protocol. Additional remote I/O modules are available (see link below.)
Choose from one of 5 different controller styles:
  • PB models: 14 local I/O expandable to 256, 3.8K program steps, 2 serial ports
  • PC models: 12 local I/O expandable to 256, 7.9K program steps, 2 serial ports, clock/calendar, 2 setpoint potentiometers
  • PH models: 12 local I/O expandable to 256, 7.9K program steps, 2 serial ports, clock/calendar, 2 setpoint potentiometers, 100 KHz high-speed counters and pulse outputs
  • PA models: 10 local I/O (including analog I/O) expandable to 256, 7.9K program steps, 2 serial ports, clock/calendar, 2 configurable 7-segment displays
  • PV models: 28 local I/O expandable to 512, 16K program steps, 2 serial ports, clock/calendar, 2 setpoint potentiometers, 200 KHz high-speed counters and pulse outputs
Please note: All of the PLCs require the ELCSOFT software and either ELC-CBPCELC1 or ELC-CBPELC3 cable.
Place Order(Specify Model Number)
Part Number/Desc.
Qty
Description
Quick Ship
ELC-PA10AADR
435,00
Availability: In Stock

4 DC In / 2 Relay Out Digital, 2 In / 2 Out Analogue, Clock/Calendar
Quick Ship
ELC-PA10AADT
450,00
Availability: 1 week

4 DC In / 2 Transistor Out Digital, 2 In / 2 Out Analogue, Clock/Calendar
Quick Ship
ELC-PH12NNDT
262,00
Availability: 5 weeks

8 DC In, 4 Transistor Out, Clock/Calendar, High-Speed Counters
Quick Ship
ELC-PB14NNDT
211,00
Availability: 1 week

8 DC In, 6 Transistor Out
DIGITAL I/O EXPANSION MODULES
Quick Ship
ELC-EX06NNNI
142.00
Availability: 1 week

6 High-Current Relay Outputs (6A)
Quick Ship
ELC-EX08NNAN
96.00
Availability: 1 week

8 AC Inputs
Quick Ship
ELC-EX08NNDN
82.00
Availability: 1 week

8 DC Inputs
Quick Ship
ELC-EX08NNNR
126.00
Availability: 1 week

8 Relay Outputs
Quick Ship
ELC-EX08NNDR
126.00
Availability: 5 weeks

4 DC Inputs, 4 Relay Outputs
Quick Ship
ELC-EX08NNDT
118.00
Availability: 11 weeks

4 DC Inputs, 4 Transistor Outputs
Quick Ship
ELC-EX08NNNT
126.00
Availability: 11 weeks

8 Transistor Outputs
Quick Ship
ELC-EX08NNSN
96.00
Availability: 11 weeks

8 Switch Inputs
Quick Ship
ELC-EX16NNDR
148.00
Availability: 1 week

8 DC Inputs, 8 Relay Outputs
Quick Ship
ELC-EX16NNDT
142.00
Availability: 1 week

8 DC Inputs, 8 Transistor Outputs
ANALOGUE I/O EXPANSION MODULES
Quick Ship
ELC-AN04ANNN
258.00
Availability: 1 week

4 Analogue Inputs
Quick Ship
ELC-AN02NANN
244.00
Availability: 5 weeks

2 Analogue Outputs
Quick Ship
ELC-AN04NANN
334.00
Availability: 5 weeks

4 Analogue Outputs
Quick Ship
ELC-AN06AANN
353.00
Availability: 1 week

4 Analogue Inputs, 2 Analogue Outputs
Quick Ship
ELC-TC04ANNN
366.00
Availability: 1 week

4 Thermocouple Inputs - Types J, K, R, S, T
Quick Ship
ELC-PT04ANNN
325.00
Availability: 1 week

4 Platinum RTD Inputs, PT100
ACCESSORIES
Quick Ship
ELCSTARTKIT1
790.00
Availability: 5 weeks

Includes ELC-PA10AADT, ELC-PS01, ELC-GP04, ELC-CBPCELC3, ELC-CBPCGP3, ELCSOFT, ELCSOFTGP
Quick Ship
ELC-GP02
280.00
Availability: 1 week

ELC graphics panel, monochrome, 160x32 pixels, 10 keys
Quick Ship
ELC-GP04
420.00
Availability: 5 weeks

ELC graphics panel, monochrome, 128x64 pixels, 5 keys + Shift
Quick Ship
ELC-MC01
445.00
Availability: 1 week

Motion Control Module, 1 Axis (up to 8 modules per controller)
Quick Ship
ELC-COENETM
545.00
Availability: 7 weeks

Ethernet Communications Module (requires ELC-PV series controller)
Quick Ship
ELC-CODNET
330.00
Availability: 5 weeks

DeviceNet Communications Module
Quick Ship
ELC-GPXFERMOD
Consult Sales
Availability:


ELC graphics panel transfer module
Quick Ship
ELC-CBPCELC1
45.50
Availability: 5 weeks

ELC Programming/Communications Cable, 1 metre length
Quick Ship
ELC-CBPCELC3
49.00
Availability: 1 week

ELC Programming/Communications Cable, 3 metre length
Quick Ship
ELC-CBPCGP3
49.00
Availability: 5 weeks

Graphics Panel Programming Cable, 3 metre length
Quick Ship
ELC-485APTR
77.00
Availability: 5 weeks

RS485 Easy Connect Adapter
Quick Ship
ELC-ACPGMXFR
142.00
Availability: 5 weeks

Program Transfer Module for ELC controllers
Quick Ship
ELC-ACCOVER
110.00
Availability: 11 weeks

Plate Mount for Special Modules
Quick Ship
ELC-PS01
70.00
Availability: 5 weeks

ELC power supply, 24 Vdc, 1 A. 100-240Vac Powered
Quick Ship
ELC-PS02
101.00
Availability: 5 weeks

ELC power supply, 24 Vdc, 2 A. 100-240Vac Powered
Quick Ship
ELCSOFT
267.00
Availability: 1 week

ELC programming software for ELC controllers
Quick Ship
ELCSOFTGP
289.00
Availability: 5 weeks

ELC programming software for ELC graphics panels
All amounts shown in EUR
