Discontinued see FSW800B series

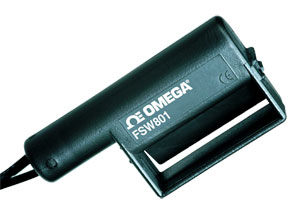

FSW800B

Air flow switch

See All Models Below

PLACE ORDER

New models available, if the stock is depleted, please, refer to the following link.

Description

The FSW800 Series air-flow monitor provides a simple but reliable alternative to indicate positive or negative air flow of fans. When properly installed and connected in series with an optical (i.e. LED) or audible signaling device, a bi-directional switch will activate an electrical contact if the air flow of the fan falls below 8.2 ft/s, thus either turning the signaling device on or off.

SPECIFICATIONS
Contact Type: Reed/magnet contact
NC (Normally Closed): Contact open with air flow
NO (Normally Open): Contact closed with air flow
Switching Threshold of Air Flow Speed: >8.2 ft/s (2.5 m/s)
Hysteresis: 3.3 ft/s (1 m/s)—fixed
Contact Resistance Includes Wire: 370 mΩ
Service Life: >100,000 cycles
Max. Switching Capacity: 10 W (resistive load)
Max. Switching Voltage: NC (AC/DC 240 V); NO (DC 60 V)
Max. Switching Current: NC (DC 500 mA); NO (DC 170 mA)
Connection: 2 x single strand AWG 26, length 500 mm (20"), tip of stranded wire stripped/tinned 5 mm (0.20")
Mounting: Attachment clamp and/or clip, or integrated in protective grill
Housing: Plastic, UL 94HB, black
Dimensions: 34 x 17.5 x 7.5 mm (1.3 x 0.7 x 0.3")
Mounting Position: Air-flow monitor opening perpendicular to air flow
Operating Temperature: -20 to 50°C (-4 to 122°F)
Storage Temperature: -20 to 80°C (-4 to 176°F)
Protection Type: NEMA 1 (IP 20)
Agency Approvals: UL and VDE

New models available, if the stock is depleted, please, refer to the following link.

Place Order(Specify Model Number)

Part Number/Desc.

Qty

Description

FSW801B

€61.26

Availability: 1 week

Air-flow switch, NC with mounting clip and clamp

FSW802B

€61.26

Availability: 1 week

Air-flow monitor, NO with mounting clip and clamp

FSW803B

€62.39

Availability: In Stock

Air-flow monitor, NC with 80 x 80 mm finger guard

FSW804B

€60.55

Availability: 1 week

Air-flow monitor, NO with 80 x 80 mm finger guard

FSW805

Consult Sales

Availability:

Air-flow monitor, NC with 92 x 92 mm finger guard

FSW806

Consult Sales

Availability:

Air-flow monitor, NO with 92 x 92 mm finger guard

FSW807B

€62.39

Availability: 1 week

Air-flow monitor, NC with 120 x 120 mm finger guard

FSW808B

€60.55

Availability: 1 week

Air-flow monitor, NO with 120 x 120 mm finger guard

† All amounts shown in EUR
Note: Comes with complete operator’s manual.
