SmartStix™ I/O for the XL Series OCS

HE559 Series

SmartStix™ I/O for the XL Series OCS | HE559 Series

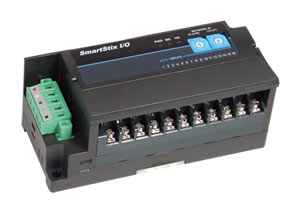

SmartStix™ I/O for the XL Series OCS

202,00 HE559DIM610

CE
  • Expands Analogue and Digital I/O of Any OCS Using a CsCAN Network
  • May be Used Locally or Remotely
  • Extemely Compact
  • Removable Screw Terminals

Description

A New I/O for OCS
SmartStix™ I/O is a new terminal-block style I/O designed for use with the the XL series Operator Control Station (OCS). It can be used to expand the I/O capacity of any OCS, and it is very cost effective as remote I/O. SmartStix I/O connects to any OCS CsCAN™ network port to provide the best I/O selection for the application. And, output modules feature Electronic Short-Circuit Protection (ESCP).

Compact, DIN-Rail Mounted
SmartStix I/O is extremely compact, providing 16 and 32 point digital I/O in a package only 39 mm (1.5") deep and a footprint of 50 H x 116 W mm (2 x 4.5") or 50 H x 177 W mm (2 x 7"). With its small footprint, SmartStix I/O takes up very little panel space whether located in the main control panel or tucked away in a remote location. SmartStix I/O has a barrier style terminal strip and can be mounted on a DIN-Rail. Plus, removable terminals make field replacement fast and convenient.

Expands I/O Capacity, Local or Remote
SmartStix I/O easily expands the I/O capacity of any OCS utilising the CsCAN network port available with every model. It is especially cost effective when added to an XL Series OCS. SmartStix I/O offers fast response times without sacrificing robustness, with no need for a costly I/O interface unit. In addition to its peer-to-peer capabilities, CsCAN is used as a highly efficient method of distributing SmartStix I/O up to 1829 m (6000')* away.

Easy to Set Up
SmartStix require minimal time and complexity to configure. Just assign a unique ID, connect the 5-wire screened cable and you will be up and running in no time.

* Maximum distance is 457 m (1500') per segment, with up to 1829 m (6000') possible using repeaters.

SPECIFICATIONS
Bus Protocol: CsCAN (control station controller area network)
Bus Connector: 5-position terminal strip
Maximum Distance: 457 m (1500') per segment; 4 segments max
Maximum Number of Total Nodes: 253
Module Configuration Method: Module ID set using two rotary switches
LED Indication: I/O status (one per point); power, module status, network status
Output Protection: Electronic shortcircuit protection (16 and 32 output modules only)
Product Certifications: CE (all models), UL (digital only)
ANALOGUE INPUTS
Input Ranges: ±5V, ±10 Vdc, 4 to 20 mA, ±20 mA DC
Resolution: 14 bits
Accuracy@ 25°C: 0.1%
Input Impedance: 1 MΩ (voltage range), 150 Ω (mA range)
Isolation: 1000 Vdc IEC61010-1 300 VRMS
Maximum Continuous Overload: 150 Vac (±10V), ±30 mA (±20 mA), clamped at ±6V
DIGITAL INPUTS
Rated Input Current: 7 mA
Rated Voltage: 11 to 25 Vdc
ON Voltage Level: 19 Vdc or less
OFF Voltage Level: 6 Vdc or less
Input Characteristics Bidirectional Isolation Method: Photo coupler
OFF to ON Response: 0 to 3 ms or less
ON to OFF Response: 0 to 3 ms or less
ANALOG OUTPUTS
Output Ranges: ±5, ±10 Vdc, 4 to 20 mA, ±20 mA DC
Resolution: 14 bits
Accuracy@ 25°C: 0.1%
Load Resistance: 600 min (voltage), 500 max (mA)
Isolation: 1000 Vdc, IEC61010-1 300 VRMS
Output Characteristic: Sourcing
DIGITAL OUTPUTS
Operating Voltage: 24 Vdc
Rated Load Voltage: 24 Vdc
Output Type: Sourcing
Maxload Current: 0.5 A max per output 3 A per common
OFF to ON Response: 2 mS
ON to OFF Response: 2 mS
RELAY OUTPUTS
Rated Load Voltage: 24 Vdc, 220 Vac
Minimum Load Voltage/Current: 5 Vdc/1 mA
Maximum Load Current (Resistive): 2.0 A per channel, 5.0 A per common
OFF to ON Response: 10 mS max
ON to OFF Response: 12 mS max
Output Type: NO
Dimensions (Approx):
    32 I/O, Analog I/O or Relay Output: 176 L x 48 D x 50 mm H(7 x 1.9 x 2")
    16 I/O (Not Relay): 115 L x 48 D x 50 mm H(4.5 x 1.9 x 2")
Place Order(Specify Model Number)
Part Number/Desc.
Qty
Description
Digital I/O
Quick Ship
HE559DIM610
202.00
Availability: 1 week

16 DC inputs (24 Vdc positive/negative logic) I/O expander for CsCAN with removable field terminals
Quick Ship
HE559DIM710
348.00
Availability: 5 weeks

32 DC inputs (24 Vdc positive/negative logic) I/O expander for CsCAN with removable field terminals
Quick Ship
HE559DIQ816
380.00
Availability: 5 weeks

16 DC inputs (24 Vdc positive/negative logic) plus 16 DC outputs (pos logic) 0.5 A I/O expander for CsCAN with removable field terminals
Quick Ship
HE559DQM602
244.00
Availability: 5 weeks

16 relay outputs (250 Vac, 30 Vdc, 2 A) for CsCAN with removable field terminals
Quick Ship
HE559DQM606
244.00
Availability: 5 weeks

16 DC outputs (24 Vdc positive logic, 0.5 A) I/O expander for CsCAN with removable field terminals
Quick Ship
HE559DQM706
410.00
Availability: 5 weeks

32 DC outputs (24 Vdc, positive logic, 0.5 A) I/O expander for CsCAN with removable field terminals
Analogue I/O
Quick Ship
HE559MIX577
605.00
Availability: 5 weeks

4 analogue inputs (±10V, ±20 mA) 14-bit resolution plus 2 analogue outputs (±10V, ±20 mA) 14-bit resolution; channel-by-channel voltage/current selection for all channels; for CsCAN with removable field terminals
All amounts shown in EUR
Note: SmartStix I/O module comes with a 5-pin terminal style network connector. An optional m12 adaptor for m12 cable sets is available. SmartStix I/O have removable terminals and can be DIN-rail mounted.
