Canister Load Cells Heavy Duty Design

LC1001

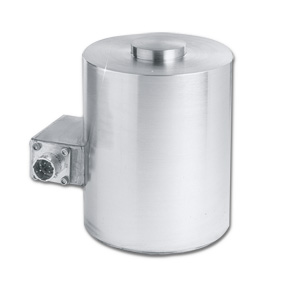

Canister Load Cell, Compression Load cell | LC1001

Canister Load Cell, Compression Load cell

985,00 LC1001-500

  • 0.25% Interchangeable for Multiple Load Cell Applications
  • 5-Point NIST Traceable Calibration Standard
  • Canister Design Ideal for Axial Compression Applications
  • Heavy Duty Environmentally Sealed Case for Harsh Environments
  • Dual Bridge Models Available
  • FM/CSA Approved Intrinsically Safe Models Available
Load Cells, Force Sensors and Torque Transducers - View related products

Description

The LC1001 is also available in metric configurations, with ranges from 0-250 to 0-10,000 kgf and metric threads. Please see the LCM1001 for complete details, or contact our Sales department for more information.


SPECIFICATIONS
Excitation: 10 Vdc (15 Vdc max)
Output: 2 mV/V ±0.25%
5-Point Calibration (in Compression): 0%, 50%, 100%, 50%, 0% calibrated to full scale up to 300,000 lb; load cells over 300,000 lb calibrated at 300,000 lb. For a full scale calibration over 300,000 lb, specify option “-FS” after model number (consult Sales for price and delivery)
Protection Class: IP67
Linearity: ±0.05% FSO
Hysteresis: ±0.03% FSO
Repeatability: ±0.02% FSO
Zero Balance: ±1% FS
Operating Temp Range: -46 to 100°C (-50 to 212°F)
Compensated Temp Range: 16 to 71°C (60 to 160°F)
Thermal Effects:
    Zero: ±0.0018% FS/°C
    Span: ±0.0018% rdg/°C
Safe Overload: 150% of rated capacity
Ultimate Overload: 300% of rated capacity
Input Resistance: 350 ± 10 Ω
Output Resistance: 350 ±10 Ω
FS Deflection: 0.18 to 0.50 mm (0.007 to 0.020") typical
Construction:
    Ranges <500,000 lb: 17-4 PH stainless steel
    Ranges ≥500,000 lb: High-alloy steel
Electrical:
    LC1001/LCM1001: 4.8 m (15') 4-conductor shielded PVC cable
    LC1011/LCM1011: PTIH-10-6P (or equiv.)
Mating Connector: PT06F10-6S, sold separately
Place Order(Specify Model Number)
Part Number/Desc.
Qty
Description
CABLE STYLE
Quick Ship
LC1001-500
985.00
Availability: 15 weeks

Compression load cell with 4.8m cable, 0-500 lb (0-227 kgf) capacity
Quick Ship
LC1001-1K
985.00
Availability: 9 weeks

Compression load cell with 4.8m cable, 0-1,000 lb (0-455 kgf) capacity
Quick Ship
LC1001-2.5K
985.00
Availability: 15 weeks

Compression load cell with 4.8m cable, 0-2,500 lb (0-1134 kgf) capacity
Quick Ship
LC1001-5K
985.00
Availability: In Stock

Compression load cell with 4.8m cable, 0-5,000 lb (0-2269 kgf) capacity
Quick Ship
LC1001-10K
985.00
Availability: 15 weeks

Compression load cell with 4.8m cable, 0-10,000 lb (0-4537 kgf) capacity
Quick Ship
LC1001-50K
985.00
Availability: 16 weeks

Compression load cell with 4.8m cable, 0-50,000 lb (0-22,686 kgf) capacity
Quick Ship
LC1001-75K
1,360.00
Availability: 15 weeks

Compression load cell with 4.8m cable, 0-75,000 lb (0-34,019 kgf) capacity
Quick Ship
LC1001-100K
Consult Sales
Availability:


Canister load cells with capacities >= 100,000 lbs. are priced at time of sales.
Quick Ship
LC1001-200K
Consult Sales
Availability:


Canister load cells with capacities >= 100,000 lbs. are priced at time of sales.
Quick Ship
LC1001-300K
Consult Sales
Availability:


Canister load cells with capacities >= 100,000 lbs. are priced at time of sales.
Quick Ship
LC1001-500K
Consult Sales
Availability:


Canister load cells with capacities >= 100,000 lbs. are priced at time of sales.
CONNECTOR STYLE
Quick Ship
LC1011-1K
965.00
Availability: 9 weeks

Connector style compression load cell , 0-1,000 lb (0-455 kgf) capacity
Quick Ship
LC1011-5K
965.00
Availability: 15 weeks

Connector style compression load cell , 0-5,000 lb (0-2269 kgf) capacity
Quick Ship
LC1011-10K
965.00
Availability: 1 week

Connector style compression load cell , 0-10,000 lb (0-4537 kgf) capacity
Quick Ship
LC1011-50K
965.00
Availability: 15 weeks

Connector style compression load cell , 0-50,000 lb (0-22,686 kgf) capacity
Quick Ship
LC1011-100K
Consult Sales
Availability:


Canister load cells with capacities >= 100,000 lbs. are priced at time of sales.
Quick Ship
LC1011-200K
Consult Sales
Availability:


Canister load cells with capacities >= 100,000 lbs. are priced at time of sales.
Quick Ship
LC1011-300K
Consult Sales
Availability:


Canister load cells with capacities >= 100,000 lbs. are priced at time of sales.
Quick Ship
LC1011-500K
Consult Sales
Availability:


Canister load cells with capacities >= 100,000 lbs. are priced at time of sales.
Quick Ship
PT06F10-6S
€26.50
Availability: In Stock

Mating Connector (required for LC1011 models)
All amounts shown in EUR
Note: Canister load cells with capacities >= 100,000 lbs are sold by quotation only.Contact our sales department

Part Number Builder

Build Your Part Number Below
Option Descriptions:


(1) 1001 select from:
1001 for Cable Style
1011 for Connector Style

(2) Range (lbs) select from:
500 for 0-500
1K for 0-1000
2.5K for 0-2500
5K for 0-5000
10K for 0-10000
20K for 0-20000
50K for 0-50000 NOTE for RANGES >=100000 lbs Sold by Quotation Only
Note: All combinations may not be valid, check spec sheet for valid part numbers.
