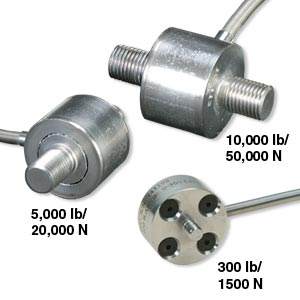

OMEGA’s LC202 Series Load Cell offers the designer a compact series with ranges from 50 lb to 10,000 lb and accuracy of 0.25%. The all stainless steel construction and rugged design assure long life in industrial and commercial applications.
The LC202 is also available in metric configurations, with ranges from 0-100 to 0-50,000 N and metric threads.
Please see the LCM202 for complete details, or contact our Sales department for more information.
SPECIFICATIONS Excitation: 10 Vdc, 15 Vdc max Output: 2 mV/V nominal Accuracy: ±0.25% FSO (linearity, hysteresis, repeatability combined) 5-Point Calibration: 0%, 50%, 100%, 50%, 0% Zero Balance: ±2% FSO Operating Temp Range: -54 to 121°C (-65 to 250°F) Compensated Temp Range: 16 to 71°C (60 to 160°F) Thermal Effects: Zero: 0.009% FSO/°C Span: 0.009% FSO/°C Safe Overload: 150% of capacity Ultimate Overload: 300% of capacity Input Resistance: 360 Ω minimum Output Resistance: 350 ±10 Ω Construction: Stainless steel Electrical: 1.5 m (5') 4-conductor cable Protection Class: IP65
† All amounts shown in EUR Note: All LC202 Series load cells include a 5 point traceable calibration certificate.
