High Capacity Tension Link Load Cell

LC702 and LC712 Series

High Capacity Tension Link Load Cell | LC702 and LC712 Series

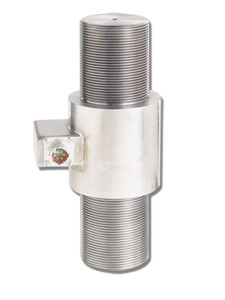

High Capacity Tension Link Load Cell

930,00 LC712-50K

  • Tension link load cell. All Stainless Steel Construction
  • Accuracy 0.15%
  • Heavy Duty Construction for High Capacity Loads
Load Cells, Force Sensors and Torque Transducers - View related products

Description

Find how a load cell.works on this link.

OMEGA’s LC702 Series Tension Links load cells have a 6 ft (2 m) cable, and the LC712 Series have an integral connector. Both series are all stainless steel high capacity in-line tension load cells, for applications including cables on cranes, support rods in architectural designs, engine test beds, and industrial weighing applications.

SPECIFICATIONS
Output: 2 mV/V ±0.25 % FSO
Excitation: 10 Vdc (15V max)
Linearity: ±0.10% FSO
Hysteresis: ±0.10% FSO
Repeatability: ±0.05% FSO
Zero Balance: ±1.0% FSO
Operating Temp Range: -34 to 121°C (-30 to 250°F)
Compensated Temp Range: 16 to 71°C (60 to 160°F)
Thermal Effects:
   Zero: ±0.009% FSO/°C (±0.005% FSO/°F)
   Span: ±0.009% FSO/°C (±0.005% FSO/°F)
Safe Overload: 150% of capacity
Ultimate Overload: 300% of capacity
Bridge Resistance: 350 Ω
Construction: Stainless steel
Electrical:
   LC702: 1.8 m (6') 4-conductor cable
   LC712: DT02H-10-6P (or equiv.)
Protection Class: IP67
LC712 Mating Connector: PT06F10-6S, sold separately
Place Order(Specify Model Number)
Part Number/Desc.
Qty
Description
LC702 Cable Termination
Quick Ship
LC702-5K
930.00
Availability: 9 weeks

Tension link load cell with 6 foot cable, 0-5,000 lb (2269kgf) capacity
Quick Ship
LC702-10K
930.00
Availability: 1 week

Tension link load cell with 6 foot cable, 0-10,000 lb (4537 kg) capacity
Quick Ship
LC702-20K
930.00
Availability: 9 weeks

Tension link load cell with 6 foot cable, 0-20,000 lb (9074 kgf) capacity
Quick Ship
LC702-30K
930.00
Availability: 9 weeks

Tension link load cell with 6 foot cable, 0-30,000 lb (13,612 kgf) capacity
Quick Ship
LC702-50K
930.00
Availability: 5 weeks

Tension link load cell with 6 foot cable, 0-50,000 lb (22,686 kgf) capacity
Quick Ship
LC702-100K
2,275.00
Availability: 1 week

Tension link load cell with 6 foot cable, 0-100,000 lb (45,372 kgf) capacity
Quick Ship
LC702-150K
3,520.00
Availability: 16 weeks

Tension link load cell with 6 foot cable, 0-150,000 lb (68,058 kgf) capacity
Quick Ship
LC702-200K
3,520.00
Availability: 1 week

Tension link load cell with 6 foot cable, 0-200,000 lb (90,744 kgf) capacity
LC712 Connector Termination (mating connector sold separately)
Quick Ship
LC712-5K
930.00
Availability: 9 weeks

Tension link load cell with connector, 0-5,000 lb (2269 kgf) capacity
Quick Ship
LC712-10K
930.00
Availability: 5 weeks

Tension link load cell with connector, 0-10,000 lb (4537 kgf) capacity
Quick Ship
LC712-20K
930.00
Availability: 5 weeks

Tension link load cell with connector, 0-20,000 lb (9074 kgf) capacity
Quick Ship
LC712-30K
930.00
Availability: 11 weeks

Tension link load cell with connector, 0-30,000 lb (13,612 kgf) capacity
Quick Ship
LC712-50K
930.00
Availability: 5 weeks

Tension link load cell with connector, 0-50,000 lb (22,686 kgf) capacity
Quick Ship
LC712-100K
2,275.00
Availability: 15 weeks

Tension link load cell with connector, 0-100,000 lb (45,372 kgf) capacity
Quick Ship
LC712-150K
3,520.00
Availability: 16 weeks

Tension link load cell with connector, 0-150,000 lb (68,058 kgf) capacity
Quick Ship
LC712-200K
3,520.00
Availability: 5 weeks

Tension link load cell with connector, 0-200,000 lb (90,744 kgf) capacity
Accessories and Compatible Meters
Quick Ship
TX4-100
€35.00
Availability: 7 weeks

4-Core 7/0.2 mm screened cable white, red, green & black with drain wire, 30 metres
Quick Ship
DP25B-S
€289.00
Availability: 1 week

4-Digit strain meter with excitation
Quick Ship
DP41-S
€625.00
Availability: 1 week

6-Digit strain meter with excitation
All amounts shown in EUR
Note: All LC702/LC712 series include a NIST traceable calibration certificate. Load cells over 300,000 lb calibrated at 300,000 lb. For a full scale calibration over 300,000 lb, specify option "-FS" after model number ($1,500 additional price)
(OPTIONS SHOWN IN THIS "NOTE" ABOVE ARE PRICED IN US$)

Part Number Builder

Build Your Part Number Below
Option Descriptions:


(1) Cable or Connector select from:
702 for Cable style
712 for Connector style

(2) Load Range select from:
5K for 0-5000 lb range
10K for 0-10000 lb range
20K for 0-20000 lb range
30K for 0-30000 lb range
50K for 0-50000 lb range
100K for 0-100000 lb range
150K for 0-150000 lb range
200K for 0-200000 lb range
300K for 0-300000 lb range
500K for 0-500000 lb range
1M for 0-1000000 lb range
Note: All combinations may not be valid, check spec sheet for valid part numbers.
