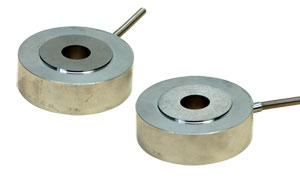

Through-Hole Load Cells
Low Profile with 1.5 Inch O.D.

LC8150

Through-Hole Load Cells

^€739,14 LC8150-250-100

PLACE ORDER

Through-Hole Load Cells with Low Profile
All Stainless Steel Construction
Rugged Industrial Design
I.D. From 0.100 to 0.500
Ranges 100 to 5000 lbf.

Load Cells, Force Sensors and Torque Transducers - View related products

Description

The LC8150 Series Donut Load Cell is an economical solution to applications requiring a through-hole design. With its extremely low profile and compact design, this load cell is ideal for applications such as clamping forces, bolt loading forces and other compressive loads. This series, with its all stainless steel construction and environmental protection, has proven its reliability in tough industrial applications.

Place Order(Specify Model Number)

Part Number/Desc.

Qty

Description

LC8150-250-100

€739,14

Availability: 11 weeks

Thru hole load cell, 1.5" OD, 0.250" ID, 0-100 lb capacity

LC8150-250-250

€762,33

Availability: 9 weeks

Thru hole load cell, 1.5" OD, 0.250" ID, 0-250 lb capacity

LC8150-250-500

€762,33

Availability: 9 weeks

Thru hole load cell, 1.5" OD, 0.250" ID, 0-500 lb capacity

LC8150-250-1K

€739,14

Availability: 7 weeks

Thru hole load cell, 1.5" OD, 0.250" ID, 0-1,000 lb capacity

LC8150-250-2K

€762,33

Availability: 5 weeks

Thru hole load cell, 1.5" OD, 0.250" ID, 0-2,000 lb capacity

LC8150-250-3K

€762,33

Availability: 9 weeks

Thru hole load cell, 1.5" OD, 0.250" ID, 0-3,000 lb capacity

LC8150-250-5K

€739,14

Availability: 5 weeks

Thru hole load cell, 1.5" OD, 0.250" ID, 0-5,000 lb capacity

LC8150-500-250

€739,14

Availability: 7 weeks

Thru hole load cell, 1.5" OD, 0.50" ID, 0-250 lb capacity

LC8150-500-500

€808,75

Availability: 7 weeks

Thru hole load cell, 1.5" OD, 0.50" ID, 0-500 lb capacity

† All amounts shown in EUR

Part Number Builder

Build Your Part Number Below

	(1)		(2)
LC8150-		-

Option Descriptions:

(1) Inside Diameter select from:
100 for 0.100 inch ID
125 for 0.125 inch ID
200 for 0.200 inch ID
250 for 0.250 inch ID
312 for 0.312 inch ID
375 for 0.375 inch ID
500 for 0.500 inch ID

(2) Range select from:
100 for 0-100 lb range
250 for 0-250 lb range
500 for 0-500 lb range
1K for 0-1000 lb range
2K for 0-2000 lb range
3K for 0-3000 lb range
5K for 0-5000 lb range

Note: All combinations may not be valid, check spec sheet for valid part numbers.
