Miniature Tension and Compression Load Cell, 0.75" to 1" Diameter

LCFD

Miniature Tension and Compression Load Cell | LCFD

Miniature Tension and Compression Load Cell

775,00 LCFD-1KG

CE
  • High Accuracy miniature compression load cell
  • Small Footprint
  • All Stainless Steel Construction
  • Models Available from 1kg to 1,000 lb.
Load Cells, Force Sensors and Torque Transducers - View related products

Description

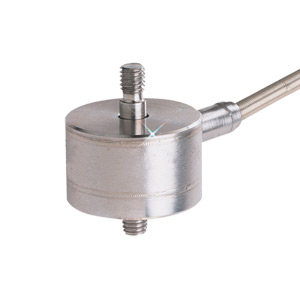

Small in size and capable of providing highly accurate readings, the LCFD Series miniature compression load cells are precision subminiature load cells for industrial applications requiring a small size and high accuracy. They are all stainless steel, measure both tension and compression loads and have male thread studs for load attachment. The exclusive internal design provides superior long term stability and minimizes the effects of small off-axis loads. Compatible Meters: DP41-S, DP25B-S & DP41-B

The LCFD is also available in metric configurations, with ranges from 0-10 to 0-5,000 N and metric threads. Please see the LCMFD for complete details, or contact our Sales department for more information..


SPECIFICATIONS
Excitation:
   ≤10 lb/50 N: 5 Vdc
   ≥25 lb/100 N: 10 Vdc
Output:
   2.2 lb/10 N: 1.5 mV/V (nom)
   ≥5 lb/20 N: 2 mV/V (nom)
Accuracy (Linearity and Hysteresis Combined):
   ≤100 lb/500 N: ±0.15% FSO
   ≥250 lb/1000 N: ±0.20% FSO
Repeatability:
   ≤2.2 lb: ± 0.15% FSO
   ≥5 lb/10 N: 0.20% FSO
5-Point Calibration (in Tension): 0%, 50%, 100%, 50%, 0%
Zero Balance: ±2% FSO
Operating Temp Range: -54 to 121°C (-65 to 250°F)
Compensated Temp Range: 16 to 71°C (60 to 160°F)
Thermal Effects:
   Span: ±0.009% FSO/°C
   Zero: ±0.009% FSO/°C
Safe Overload: 150% of capacity
Ultimate Overload: 300% of capacity
Bridge Resistance: 350 Ω minimum
Construction: Stainless steel
Electrical Connection: 1.5 m (5') 4-conductor, shielded cable
   ≤10 lb/50 N: SS overbraided PTFE with temperature compensation board
Protection Class: IP65
Place Order(Specify Model Number)
Part Number/Desc.
Qty
Description
Quick Ship
LCFD-1KG
775,00
Availability: In Stock

+/- 1 kg capacity Load Cell
Quick Ship
LCFD-5
775,00
Availability: 5 weeks

+/- 5 lb capacity Load Cell
Quick Ship
LCFD-10
775,00
Availability: 5 weeks

+/- 10 lb capacity Load Cell
Quick Ship
LCFD-25
775,00
Availability: 1 week

+/- 25 lb capacity Load Cell
Quick Ship
LCFD-50
775,00
Availability: 5 weeks

+/- 50 lb capacity Load Cell
Quick Ship
LCFD-100
775,00
Availability: 1 week

+/- 100 lb capacity Load Cell
Quick Ship
LCFD-250
775,00
Availability: In Stock

+/- 250 lb capacity Load Cell
Quick Ship
LCFD-500
775,00
Availability: 5 weeks

+/- 500 lb capacity Load Cell
Quick Ship
LCFD-1K
775,00
Availability: 5 weeks

+/- 1,000 lb capacity Load Cell
Accessories and Compatible Meters
Quick Ship
REC-006F
10.25
Availability: In Stock

Rod Ends for 1kg through 10 lb
Quick Ship
REC-010F
10.25
Availability: 1 week

Rod Ends for 25 lb through 100 lb
Quick Ship
REC-014F
11.25
Availability: 1 week

Rod Ends for 250 lb through 1000 lb
Quick Ship
DP25B-S
262.00
Availability: 1 week

4-Digit strain meter with excitation
Quick Ship
DP41-S
590.00
Availability: 1 week

6-Digit strain meter with excitation
All amounts shown in EUR
Note: All LCFD Series load cells inlcude a 5 point NIST traceable calibration certificate.
Ordering Example: (1) LCFD-1KG +/- 1000 lb capacity Load Cell, €775.00  plus (1) LCFD-1KG +/- 1000 lb capacity Load Cell, €775.00, €775.00 + 775.00 = €1,550.00
