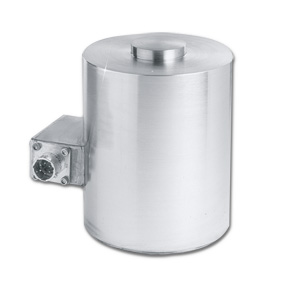

Canister Style Compression Load Cells, Heavy Duty Design, Metric, 0-250 to 0-10,000 kgF

LCM1001 and LCM1011 Series

Canister Style Compression Load Cells, Heavy Duty Design, Metric, 0-250 to 0-10,000 kgF | LCM1001 and LCM1011 Series

1.452,17 LCM1001-5K

  • 0.25% Interchangeable for multiple load cell applications
  • 5 point calibration standard
  • Cannister design is ideal for axial compression applications
  • Heavy duty environmentally sealed case for harsh environments
Load Cells, Force Sensors and Torque Transducers - View related products

Description

This item is being discontinued.


SPECIFICATIONS

Excitation:
10 Vdc (15 Vdc max)
5-Point Calibration: (Compression) 0%, 50%, 100%, 50%, 0%
Linearity: ±0.05% FSO
Hysteresis: ±0.03% FSO
Repeatability: ±0.02% FSO
Output: 2 mV/V ±0.25%
Agency Approvals: FM/CSA Intrinsically Safe: IS/I.II.III/1/CDEFG Must be specified at time of order
Zero Balance: ±1% FS
Operating Temp Range: -46 to 100°C
Compensated Temp Range: 16 to 71°C
Thermal Effects: Zero ±0.002% FS/°C Span ±0.002% Rdg/°C
Safe Overload: 150% of rated capacity
Ultimate Overload:300% of rated capacity
Input Resistance: 350 ±10 Ohms
Output Resistance: 350 ±10 Ohms
FS Deflection: 0.178 to 0.305 mm typical
Construction: 17-4 PH Stainless Steel
Electrical: LCM1001: 4.6 m 4-Core Shielded cable LCM1011: PTIH-10-6P (or Equal)
Mating Connector: for LCM1011 (not included) order part number PT06F10-6S
Place Order(Specify Model Number)
Part Number/Desc.
Qty
Description
LCM1001 Cable Style
LCM1001-1K
Consult Sales
Availability:


0-1,000 kgf Canister style load cell with 4.6 m cable
LCM1001-5K
1,452.17
Availability: 1 week

0-5,000 kgf Canister style load cell with 4.6 m cable
LCM1001-10K
Consult Sales
Availability:


0-10,000 kgf Canister style load cell with 4.6 m cable
LCM1011 Connector Style
LCM1011-1K
Consult Sales
Availability:


0-1,000 kgf Canister style load cell with PT1H-10-6P connector (mating connector sold seperately)
LCM1011-5K
Consult Sales
Availability:


0-5,000 kgf Canister style load cell with PT1H-10-6P connector (mating connector sold seperately)
LCM1011-10K
Consult Sales
Availability:


0-10,000 kgf Canister style load cell with PT1H-10-6P connector (mating connector sold seperately)
Accessories
PT06F10-6S
€40.78
Availability: In Stock

Mating connector for LCM1011 series
LCM1000-BP4
€115.12
Availability: 11 weeks

Base plate for LCM1001/1011
LCM1000-TP4
€114.48
Availability: 11 weeks

Top plate for LCM1001/1011
TXDIN1600S
€207.78
Availability: In Stock

DIN Rail Mounted Signal Conditioner/Transmitter with Excitation & Remote Tare Input. 10-48 Vdc powered
All amounts shown in EUR
Ordering Example: (1) LCM1001-5K 0-5,000 kgf Canister style load cell with 4.6 m cable, €1,452.17

Part Number Builder

Build Your Part Number Below
Option Descriptions:


(1) Electrical Connection select from:
01 for 4.6m 4-core cable
11 for PT1H-10-6P connector (PT06F10-6S mating connector required)

(2) Capacity select from:
250 for 250 kgf
500 for 500 kgf
1K for 1000 kgf
2K for 2000 kgf
5K for 5000 kgf
10K for 10000 kgf
Note: All combinations may not be valid, check spec sheet for valid part numbers.
