Button Style Compression Load Cell, 0-100 to 0-5000 Newtons. 19mm Dia. SS

LCM302 Series

LCM302 Series Button Style Compression Load Cell | LCM302 Series

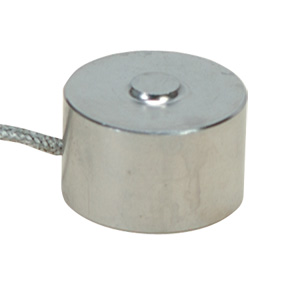

LCM302 Series Button Style Compression Load Cell

316,00 LCM302-100N

RoHS
  • Small 19 mm Dia.
  • Low 13 mm Profile
  • Robotic and Test Bench Applications
  • Built in Load Button for Easy Installation
  • 5-Point Traceable Calibration Provided
Load Cells, Force Sensors and Torque Transducers - View related products

Description

More information about how a load cell works in this link.

The LCM302 Series is only 19 mm in diameter and fits in the smallest places. Its high ±0.5% accuracy and small package solve many industrial force measurement applications. All stainless steel construction and high quality strain gauge assures long term reliability in industrial environments.

The LCM302 is also available in imperial configurations, with 0-25 to 0-5,000 lb ranges. Please see the LC302 for complete details, or contact our Technical Sales department for more information..

SPECIFICATIONS
Excitation:
10 Vdc, 15 Vdc max
Output: 1 mV/V (nominal)
Accuracy: ±0.5% FSO (linearity, hysteresis and repeatability combined)
Zero Balance: ±2% FSO
Deflection: 0.025 to 0.075 mm
Operating Temp Range: -54 to 107°C (-65 to 225°F)
Compensated Temp Range: 16 to 71°C (60 to 160°F)
Thermal Effects: Zero: 0.009% FSO/°C Span: 0.036% FSO/°C
Safe Overload: 150% of Capacity
Ultimate Overload: 300% of Capacity
Bridge Resistance: 350 Ohms minimum
Construction: Stainless Steel
Protection Class: IP54
Electrical: 1.5 m (5 ft) 4 Conductor Shielded Cable
