Button style compression load cell, 0-200 to 0-50,000 Newtons, 25 mm Dia. SS

LCM304 Series

LCM304 Series Button style Compression Load Cell | LCM304 Series

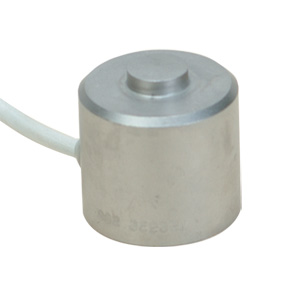

LCM304 Series Button style Compression Load Cell

333,00 LCM304-2KN

RoHS
  • Button style compression load cell with Heavy Duty Design
  • Built in Load Button for Easy Installation
  • Designed for small areas, 25.4 mm Diameter and Height
  • 5-Point Calibration Provided
Load Cells, Force Sensors and Torque Transducers - View related products

Description

Click on this link if you need more information about load cell.

OMEGA's LCM304 Series Load Cell offers the highest output of all miniature load cells. Its small 25 mm diameter makes it easy to mount in a pocket or on a flat surface. The rugged stainless steel case and high quality construction assure reliability in severe industrial environments.

The LCM304 is also available in imperial configurations, with 0-100 to 0-10,000 lb ranges. Please see the LC304 for complete details, or contact our Technical Sales department for more information..

SPECIFICATIONS

Excitation: 10 Vdc, 15 Vdc max
Output: 2 mV/V nominal
Accuracy: ±0.5% FSO linearity, hysteresis, repeatability combined
5-Point Calibration: 0%, 50%, 100%, 50%, 0%
Zero Balance: ±2% FSO
Operating Temp Range: -54 to 107°C
Compensated Temp Range: 16 to 71°C
Deflection: 0.025 to 0.076 mm
Thermal Effects:
   Zero: 0.009% FSO/°C
   Span: 0.036% FSO/°C
Safe Overload: 150% of capacity
Ultimate Overload: 300% of capacity
Bridge Resistance: 360 Ω minimum
Construction: Stainless steel
Electrical: 1.5 m 4-core screened cable
Protection Class: IP65

Place Order(Specify Model Number)

What Other People Bought: When you see this icon, click on it to expand a list of products that other people have bought when they purchased this model.

Part Number/Desc.
Qty
RoHS
Description
Quick Ship

LCM304-500N
333,00
Availability: 1 week
RoHS compliancy undetermined
0 to 500 N Miniature Compression Load Cell
Quick Ship

LCM304-2KN
333,00
Availability: 1 week
RoHS compliancy undetermined
0 to 2000 N Miniature Compression Load Cell
Quick Ship

LCM304-5KN
333,00
Availability: 5 weeks
RoHS compliancy undetermined
0 to 5000 N Miniature Compression Load Cell
Quick Ship

LCM304-10KN
333,00
Availability: 9 weeks
RoHS compliancy undetermined
0 to 10,000 N Miniature Compression Load Cell
Quick Ship

LCM304-20KN
333,00
Availability: In Stock
RoHS compliancy undetermined
0 to 20,000 N Miniature Compression Load Cell
Quick Ship

LCM304-50KN
333,00
Availability: In Stock
RoHS compliancy undetermined
0 to 50,000 N Miniature Compression Load Cell
COMPATIBLE LOAD INDICATORS AND AMPLIFIERS
Quick Ship
Click to expand/minimize a list of what others bought with theDP25B-S-230
DP25B-S-230
€275.00
Availability: In Stock
RoHS compliant
4-digit precision Load Cell Meter for use with mV/V output Load Cells. 230Vac powered
Quick Ship
Click to expand/minimize a list of what others bought with theDP41-S-230
DP41-S-230
€590.00
Availability: In Stock
RoHS compliancy undetermined
6-digit high accuracy (0.005%) Load Cell Meter for use with mV/V output Load Cells. 230Vac powered
Quick Ship

TXDIN1600S
€173.00
Availability: In Stock
RoHS compliancy undetermined
Load Cell Amplifier, DIN Rail mounted with Excitation Voltage.
All amounts shown in EUR
Note: A 5-point traceable calibration is included.
Ordering Example: (1) LCM304-10KN Compression load cell 0 to 10,000 Newtons, €333.00
