Miniature button style Load Cell; Rugged Industrial Design

LCMKD

mini button load cells

^€821,95 LCMKD-50N

PLACE ORDER

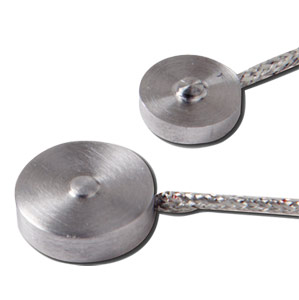

Miniature Size - from 9.6 mm dia and only 3 mm high
5-Point Calibration Certificate Included
All Stainless Steel

Load Cells, Force Sensors and Torque Transducers - View related products

Description

More information about how a load cell works in this link.

Small in size but not in performance, OMEGA’s LCMKD Series compression load cells are designed to measure load ranges from 10 to 5,000 Newtons. Rugged all stainless steel construction and high performance strain gauges assure superior linearity and stability. Temperature compensation is achieved through a miniature circuit board which is included in the cable. These units are designed to be mounted on a smooth, flat surface.

The LCMKD is also available in imperial configurations, with 0-5 to 0-1,000 lb ranges. Please see the LCKD for complete details, or contact our Technical Sales department for more information.

SPECIFICATIONS
Excitation: 5 Vdc, 7 Vdc max
Output: 2 mV/V nominal
5-Point Calibration: 0%, 50%, 100%, 50%, 0%
Linearity: ±0.25% FSO
Hysteresis: ±0.25% FSO
Repeatability: ±0.10% FSO
Zero Balance: ±2% FSO
Operating Temp Range: -54 to 121°C
Compensated Temp Range: 16 to 71°C
Thermal Effects: Span: ±0.018% of FSO/°C
Zero: ±0.009% of FSO/°C
Safe Overload: 150% of Capacity
Ultimate Overload: 300% of Capacity
Bridge Resistance: 350 Ohms min
Full Scale Deflection: 0.025 to 0.075 mm
Electrical Connection: 1.5 metre, 4-core insulated cable with temperature compensation board.
Weight: < 14 grams

Place Order(Specify Model Number)

What Other People Bought: When you see this icon, click on it to expand a list of products that other people have bought when they purchased this model.

Part Number/Desc.

Qty

Description

Mini Button Load Cell for Compression Forces

LCMKD-10N

€866.75

Availability: 1 week

0 to 10 Newton range

LCMKD-20N

€821.95

Availability: In Stock

0 to 20 Newton range

LCMKD-50N

€821.95

Availability: 1 week

0 to 50 Newton range

LCMKD-100N

€821.95

Availability: 16 weeks

0 to 100 Newton range

LCMKD-200N

€821.95

Availability: In Stock

0 to 200 Newton range

LCMKD-500N

€821.95

Availability: 1 week

0 to 500 Newton range

LCMKD-1KN

€821.95

Availability: In Stock

0 to 1,000 Newton range

LCMKD-2KN

€821.95

Availability: 1 week

0 to 2,000 Newton range

LCMKD-5KN

€821.95

Availability: 1 week

0 to 5,000 Newton range

Compatible Indicators and Signal Conditioning Devices

DP25B-S-230

€420.74

Availability: 1 week

4-Digit Load Cell Indicator with Excitation, 230vac Powered

DP41-S-230

€894.17

Availability: 6 weeks

6-Digit Load Cell Indicator with Excitation, 230 VAC Powered

TXDIN1600S

€207.78

Availability: In Stock

DIN Rail Mounted Signal Conditioner with Excitation

† All amounts shown in EUR
Note: A 5-point NIST traceable calibration is included.
Ordering Example: (1) TXDIN1600S Signal Conditioner with 4-20mA output, €207.78 plus (1) LCMKD-10N Subminiature compression load cell with 0 to 10 Newton range, €866.75, €207.78 + 866.75 = €1,074.53
