Load Washers for Compression measurement

LCMWD Series

Load Washers for Compression measurement - Order online

^€602,37 LCMWD-1KN

PLACE ORDER

Load washer for compression force ranges from 0-1kN to 0-200 kN
Compact Design
Spherical Washers Included, For Use With Bolts
Load Buttons Included, For Use As Compression Load Cell

Load Cells, Force Sensors and Torque Transducers - View related products

Description

The LCMWD is also available in Imperial configurations, with ranges from 0-200 to 0-200,000 lb. Please see the LCWD Series for complete details, or contact our Sales department for more information.

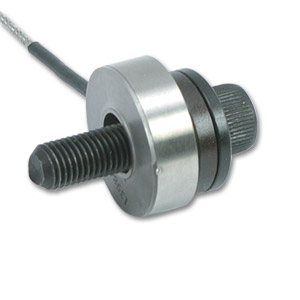

The washer load cell LCMWD series are sensors designed to measure compression force of a bolt. The series delivers high reliability in severe industrial environments with excellent long-term stability.

SPECIFICATIONS

Excitation: 10 Vdc (15 V Max)
Output: 2 mV/V ± 20%
Accuracy: (Linearity, Hysteresis and Repeatability Combined): 5 K or less: ±0.5% BFSL, >5 K: ±0.75% BFSL
Zero Balance: ±4.0% FSO
Operating Temp Range: -40 to 127°C
Compensated Temp Range: 16 to 71°C
Thermal Effects: Zero: ±0.018% FSO/°C, Span: ±0.018% FSO/°C
Safe Overload: 120% of Capacity
Ultimate Overload: 200% of Capacity
Bridge Resistance: 350 Ω
Full Scale Deflection: 0.025 mm typical
Construction: Stainless Steel
Electrical: 1.5 m insulated, screened cable

Place Order(Specify Model Number)

Part Number/Desc.

Qty

Description

LCMWD-1KN

€602,37

Availability: 9 weeks

Load Washer, Range 0-1 kN (0-225 lb), ID 10.2mm, OD 25mm

LCMWD-2KN

€602,37

Availability: 1 week

Load Washer, Range 0-2 kN (0-450 lb), ID 10.2mm, OD 25mm

LCMWD-5KN

€602,37

Availability: 9 weeks

Load Washer, Range 0-5 kN (0-1124 lb), ID 10.2mm, OD 25mm

LCMWD-10KN

€602,37

Availability: 5 weeks

Load Washer, Range 0-10 kN (0-2248 lb), ID 10.2mm, OD 25mm

LCMWD-20KN

€602,37

Availability: 1 week

Load Washer, Range 0-20 kN (0-4496 lb), ID 10.2mm, OD 25mm

LCMWD-50KN

€705,39

Availability: In Stock

Load Washer, Range 0-50 kN (0-11,240 lb), ID 10.2mm, OD 25mm

LCMWD-100KN

€787,54

Availability: 11 weeks

Load Washer, Range 0-100 kN (0-22,481 lb), ID 12.7mm, OD 30mm

LCMWD-200KN

€848,82

Availability: 9 weeks

Load Washer, Range 0-200 kN (0-44,963 lb), ID 19.3 mm, OD 44 mm

Accessories

SPW-2

€21.93

Availability: 1 week

Spherical washer 8.7mm ID

SPW-3

€29.23

Availability: 1 week

Spherical Washer 10mm ID

SPW-5

€41.49

Availability: 1 week

Spherical Washers 17mm ID

† All amounts shown in EUR
Note: One set of spherical washers and one set of load buttons supplied with each load cell.
Comes with a 4 point NIST traceable calibration certificate.

Ordering Example: (1) LCMWD-1KN load washer with 0-1 kNewton range, €602.37
