Fast Acting 10x38 Midget Fuses, 600 VAC & 250 VAC Class M

MCL 600 VAC & MOL 250 VAC Style Fuses

Fast Acting Fuses, 600 VAC Fast Acting Fuses, 250 VAC Fast Acting Fuses, Class M, 10x38 Midget Fuses | MCL 600 VAC & MOL 250 VAC Style Fuses

11,25 MCL10

  • Compact Dimensions
  • High Interrupting Rating (600V)
  • Fast-Acting Design Responds Quickly to Both Overloads and Short-Circuit Current (600V)
  • Economical Laminated Paper Tube Design (250V)

Description

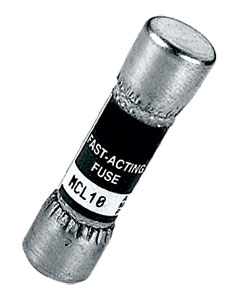

Fast Acting 600V Midget Fuse
A fast-acting, high-interrupting capacity, current-limiting type fuse. The MCL style fuse feature provides an excellent choice for applications such as: street lighting holders, HID lighting, control circuits, electronic equipment protection.

SPECIFICATIONS
Dimensions: 13/32" ferrule, 1.5" length
Weight: Approx 0.2 lbs
Voltage Rating: MCL - 600 Vac
Ampere Rating: .1 to 50 A
Interrupting Rating: 100 K RMS amps
Agency Approvals: (0.1 to 30) UL Listed to 198G, File E162443; (0.1 to 30) CSA Cert. C22.2 Part 59.2, LR700489

Fast Acting 250V Midget Fuse

The MOL is an economical solution for over current protection. The MOL style fuse feature provides an excellent choice for applications such as: supplemental protection for noninductive control and lighting circuits.

SPECIFICATIONS
Dimensions: 13/32" ferrule, 1.5" length
Weight: Approx 0.2 lbs
Voltage Rating: MOL - 250 Vac
Ampere Rating: 0.5 to 30 A
Interrupting Rating: 10 K RMS amps
Agency Approvals: (0.5 - 30) UL Listed to 198G, File E162443; (0.5 - 30) CSA Cert. C22.2 Part 59.2, LR700489
Place Order(Specify Model Number)
Part Number/Desc.
Qty
Description
Fast Acting 600V Midget Class Fuses
Quick Ship
MCL.5
11.75
Availability: 1 week

0.5 Amp Rating
Quick Ship
MCL1
11.25
Availability: 5 weeks

1 Amp Rating
Quick Ship
MCL1.5
12.00
Availability: 5 weeks

1.5 Amp Rating
Quick Ship
MCL2
11.25
Availability: 1 week

2 Amp Rating
Quick Ship
MCL2.5
13.75
Availability: 1 week

2.5 Amp Rating
Quick Ship
MCL3
11.25
Availability: 5 weeks

3 Amp Rating
Quick Ship
MCL3.5
14.25
Availability: 5 weeks

3.5 Amp Rating
Quick Ship
MCL4
11.25
Availability: 1 week

4 Amp Rating
Quick Ship
MCL5
11.25
Availability: 5 weeks

5 Amp Rating
Quick Ship
MCL6
11.00
Availability: 1 week

6 Amp Rating
Quick Ship
MCL8
11.25
Availability: 5 weeks

8 Amp Rating
Quick Ship
MCL10
11.25
Availability: 1 week

10 Amp Rating
Quick Ship
MCL12
13.00
Availability: 5 weeks

12 Amp Rating
Quick Ship
MCL15
11.25
Availability: 5 weeks

15 Amp Rating
Quick Ship
MCL20
11.25
Availability: 5 weeks

20 Amp Rating
Quick Ship
MCL25
10.50
Availability: 1 week

25 Amp Rating
Quick Ship
MCL30
10.50
Availability: 5 weeks

30 Amp Rating
Quick Ship
MCL35
14.25
Availability: 1 week

35 Amp Rating
Quick Ship
MCL40
12.75
Availability: In Stock

40 Amp Rating
Quick Ship
MCL50
14.50
Availability: 1 week

50 Amp Rating
Fast Acting 250V Midget Class Fuses
Quick Ship
MOL.5
3.50
Availability: 1 week

0.5 Amp Rating
Quick Ship
MOL1
2.80
Availability: 1 week

1 Amp Rating
Quick Ship
MOL1.5
3.50
Availability: 5 weeks

1.5 Amp Rating
Quick Ship
MOL2
2.80
Availability: 1 week

2 Amp Rating
Quick Ship
MOL2.5
3.50
Availability: 5 weeks

2.5 Amp Rating
Quick Ship
MOL3
2.80
Availability: 1 week

3 Amp Rating
Quick Ship
MOL4
3.50
Availability: 1 week

Amp Rating4
Quick Ship
MOL5
2.80
Availability: 1 week

5 Amp Rating
Quick Ship
MOL6
2.80
Availability: 9 weeks

6 Amp Rating
Quick Ship
MOL8
2.80
Availability: 1 week

8 Amp Rating
Quick Ship
MOL10
2.50
Availability: 5 weeks

10 Amp Rating
Quick Ship
MOL15
2.50
Availability: 5 weeks

15 Amp Rating
Quick Ship
MOL20
2.90
Availability: 5 weeks

20 Amp Rating
Quick Ship
MOL25
3.10
Availability: 9 weeks

25 Amp Rating
Quick Ship
MOL30
2.40
Availability: 1 week

30 Amp Rating
All amounts shown in EUR
Note: Comes with instruction sheet.
