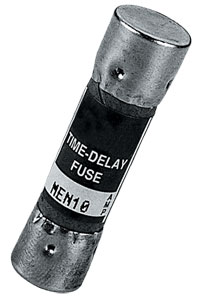

General Purpose Class M (10x38 Midget) Time Delay Fuses, 250 VAC & 500 Vac

MEN/MEQ Style Fuses

Fuses and Fuse Holders, 250 VAC Time-Delay Midget Fuse, 500 VAC Time-Delay Midget Fuse, 10x38 MEN Fuse & MEQ Fuse, Class M Fuses | MEN/MEQ Style Fuses

4,50 MEN10

  • Compact Dimensions
  • Fiber Tube Construction
  • Time-Delay Allows Harmless Inductive Surges to Pass Without Needless Fuse Opening (500V)
  • Dual-Element Construction Allows Harmless Inductive Surges to Pass Without Opening (250V)

Description

Time-Delay 500V Fuses, Class M
The MEN midget class time delay fuse is ideal for the many applications including supplemental protection of small motors, transformers, solenoids, and other high inrush power electronic circuits.
SPECIFICATIONS
Dimensions: 13/32" ferrule, 1.5" length
Weight: Approx 0.2 lbs
Voltage Rating: MEN - 250 Vac
Ampere Rating: 0.5 to 30 A
Interrupting Rating: 10K RMS amps @ 125 V
Agency Approvals: UL Listed to 198G, File E162443; CSA Cert. C22.2 Part 59.2, LR700489

Time-Delay 250V Fuses, Class M
The MEQ midget class time delay fuse is ideal for the many applications including supplemental protection of transformers, solenoids, and other high inrush circuits.

SPECIFICATIONS
Dimensions: 13/32" ferrule, 1.5" length
Weight: Approx 0.2 lbs
Voltage Rating: MEQ - 500 Vac
Ampere Rating: 0.1 to 30 A
Interrupting Rating: 10 K RMS amps
Agency Approvals: (0.1 - 30) UL Listed to 198G, File E162443; (0.1 - 30) CSA Cert. C22.2 Part 59.2,LR700489
Place Order(Specify Model Number)
Part Number/Desc.
Qty
Description
Time-Delay 250V Midget Class Fuses
Quick Ship
MEN.5
5.50
Availability: 1 week

0.5 Amp Rating
Quick Ship
MEN.6
5.50
Availability: 5 weeks

0.6 Amp Rating
Quick Ship
MEN1
5.00
Availability: 5 weeks

1 Amp Rating
Quick Ship
MEN1.4
6.40
Availability: 5 weeks

1.4 Amp Rating
Quick Ship
MEN1.5
5.60
Availability: 1 week

1.5 Amp Rating
Quick Ship
MEN2
4.70
Availability: 1 week

2 Amp Rating
Quick Ship
MEN2.5
5.30
Availability: 5 weeks

2.5 Amp Rating
Quick Ship
MEN3
4.90
Availability: 1 week

3 Amp Rating
Quick Ship
MEN3.5
4.90
Availability: 5 weeks

3.5 Amp Rating
Quick Ship
MEN4
4.90
Availability: 5 weeks

4 Amp Rating
Quick Ship
MEN5
4.70
Availability: 5 weeks

5 Amp Rating
Quick Ship
MEN6
5.30
Availability: 5 weeks

6 Amp Rating
Quick Ship
MEN7
4.90
Availability: 1 week

7 Amp Rating
Quick Ship
MEN8
4.90
Availability: 1 week

8 Amp Rating
Quick Ship
MEN10
4.50
Availability: 1 week

10 Amp Rating
Quick Ship
MEN12
5.30
Availability: 1 week

12 Amp Rating
Quick Ship
MEN15
4.70
Availability: 1 week

15 Amp Rating
Quick Ship
MEN20
4.90
Availability: 1 week

20 Amp Rating
Quick Ship
MEN25
5.50
Availability: 1 week

25 Amp Rating
Quick Ship
MEN30
4.60
Availability: 5 weeks

30 Amp Rating
Time-Delay 500V Midget Class Fuses
Quick Ship
MEQ.25
15.25
Availability: 1 week

0.25 Amp Rating
Quick Ship
MEQ.5
14.25
Availability: 5 weeks

0.5 Amp Rating
Quick Ship
MEQ1
13.50
Availability: 5 weeks

1 Amp Rating
Quick Ship
MEQ1.5
14.25
Availability: 5 weeks

1.5 Amp Rating
Quick Ship
MEQ2
13.50
Availability: 1 week

2 Amp Rating
Quick Ship
MEQ2.5
14.25
Availability: 5 weeks

2.5 Amp Rating
Quick Ship
MEQ3
13.50
Availability: 5 weeks

3 Amp Rating
Quick Ship
MEQ3.5
15.25
Availability: 5 weeks

3.5 Amp Rating
Quick Ship
MEQ4
13.50
Availability: 5 weeks

4 Amp Rating
Quick Ship
MEQ4.5
16.25
Availability: 5 weeks

4.5 Amp Rating
Quick Ship
MEQ5
13.50
Availability: 1 week

5 Amp Rating
Quick Ship
MEQ6
13.50
Availability: 5 weeks

6 Amp Rating
Quick Ship
MEQ7
14.25
Availability: 5 weeks

7 Amp Rating
Quick Ship
MEQ8
13.50
Availability: 5 weeks

8 Amp Rating
Quick Ship
MEQ10
13.50
Availability: 5 weeks

10 Amp Rating
Quick Ship
MEQ12
13.50
Availability: 5 weeks

12 Amp Rating
Quick Ship
MEQ15
13.50
Availability: 1 week

15 Amp Rating
Quick Ship
MEQ20
13.50
Availability: 5 weeks

20 Amp Rating
Quick Ship
MEQ25
13.50
Availability: 1 week

25 Amp Rating
Quick Ship
MEQ30
13.50
Availability: 5 weeks

30 Amp Rating
All amounts shown in EUR
