Molded Sensing Disk, Impervious to Dust, Oil and Water
Output: NPN Open Collector Capable of Sinking 20 mA DC
Operating Temperature: -40 to 125°C (-40 to 257°F)

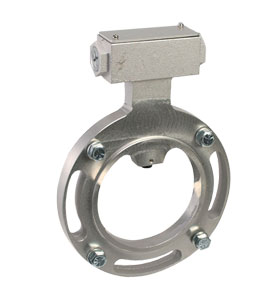

The OMDC-CF series sensor mounts directly
to a motor’s, NEMA C face. It operates at a
4.5 to 24 Vdc level producing a square wave
output which may be used with closed loop
controls, or other digital devices.
The OMDC-CF Series motor pick-up sensor
kit can be used in place of the OMDC-PU-E
series to monitor motor speeds when access
to the motor shaft is otherwise impossible.
† All amounts shown in EUR Note: Kit comes complete with motor race ring, sensor, mounting bolts, sensing disk and operator's manual. * Frame sizes 143TC, 145TC, 182C and 184C with 7/8" dia. shaft.
