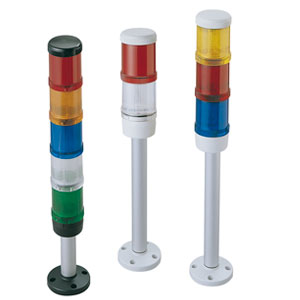

Signal50 Warning Tower Lights and Sirens. 50mm Dia.

OMSL Modular Stacking Beacons

Signal50 Warning Tower Lights and Sirens. 50mm Dia. | OMSL Modular Stacking Beacons

Signal50 Warning Tower Lights and Sirens. 50mm Dia.

33,45 OMSL890010905-5PK

1 year warranty CE
  • Six different lens colours available
  • Single or dual bi-tonal audible alarms
  • Up to 5 lights/sirens per stack

Description

SIGNAL 50 warning tower lights from the J. Auer company are the perfect compliment to any industrial control system. High grade, heavy duty and comprehensive, this 50 mm diameter space saving range is also flexible and extremely easy to assemble and install.

Best of Class
In comparing SIGNAL50 warning tower lights to competitive products from manufacturers including Patlite, IDEC, Federal Signal and Werma, the SIGNAL50 range offers more features, approvals and options than any of these major stack light manufacturers.

Rugged Construction for Industrial Applications
Heavy duty industrial polycarbonate is used to construct all light modules and bases for the SIGNAL50 line. A stainless steel, polemount base, set on zinc die-cast metal foot is also available. The entire range meets UL Type 4/4X/13 and IP65 guidelines for use indoors or out. No other manufacturer of competitive product offers this extensive range of environmental approvals.

Over 100 Combinations of Lenses, Voltages and Illumination Types
Variety and interchangeability are standard with the SIGNAL50 range. Six lens colours are available (green, red, amber, blue, yellow and clear), more than any other major manufacturer. Light modules are offered in four different voltages including 12 and 24 Vac/Vdc, 120 and 240 Vac. Illumination types include incandescent, LED and strobe. A special flashing LED is also available.

Assembling a Stacklight System
  1. Select a Base Unit
    A variety of base units are available. Bases include a mounting foot, extension tube and pole cap.
  2. Select Up to Five Light Modules
    Light modules are available in a variety of colours in either steady, flashing or Xenon strobe configuration. Incandescent or LED light sources are available. The incandescent lights are lower cost and brighter than the LEDs, however, the LEDs have a greater bulb life. You may use up to 5 light modules or 4 light modules and one single circuit sound module or 3 light modules and one dual circuit sound module.
  3. Select Incandescent or LED Lamp Bulbs
    Please match the LED colour to the light module colour. Also note the Xenon strobe modules include bulbs.
  4. Optional Sound Module
    The single circuit bi-tonal sound module may be used with up to 4 light modules. The dual circuit sound module may be used with up to 3 light modules.
  5. Choose an Optional Junction Box
    The plastic bases mount on top of the junction box to facilitate circuit wiring. Zinc bases are direct mount and should not be used with the optional junction boxes.
Place Order(Specify Model Number)
Part Number/Desc.
Qty
Description
Base Units1
OMSL790141900
140.40
Availability: 5 weeks

5 cm aluminium pole, plastic foot, grey
OMSL790142900
149.15
Availability: 5 weeks

10 cm aluminium pole, plastic foot, grey
OMSL790143900
165.29
Availability: 1 week

25 cm aluminium pole, plastic foot, grey
OMSL790144900
180.11
Availability: 5 weeks

40 cm aluminium pole, plastic foot, grey
OMSL790145900
Consult Sales
Availability:


50 cm aluminium pole, plastic foot, grey
OMSL790146900
207.32
Availability: 5 weeks

60 cm aluminium pole, plastic foot, grey
OMSL790147900
Consult Sales
Availability:


80 cm aluminium pole, plastic foot, grey
OMSL790541900
140.40
Availability: 5 weeks

5 cm aluminium pole, plastic foot, black
OMSL790542900
154.22
Availability: 1 week

10 cm aluminium pole, plastic foot, black
OMSL790543900
165.29
Availability: 5 weeks

25 cm aluminium pole, plastic foot, black
OMSL790544900
180.11
Availability: 5 weeks

40 cm aluminium pole, plastic foot, black
OMSL790545900
188.36
Availability: 5 weeks

50 cm aluminium pole, plastic foot, black
OMSL790546900
207.32
Availability: 5 weeks

60 cm aluminium pole, plastic foot, black
OMSL790547900
236.18
Availability: 5 weeks

80 cm aluminium pole, plastic foot, black
OMSL790151900
261.38
Availability: 5 weeks

5 cm stainless steel pole, zinc die-cast foot, grey
OMSL790152900
261.38
Availability: 8 weeks

10 cm stainless steel pole, zinc die-cast foot, grey
OMSL790153900
Consult Sales
Availability:


25 cm stainless steel pole, zinc die-cast foot, grey
OMSL790154900
308.11
Availability: 5 weeks

40 cm stainless steel pole, zinc die-cast foot, grey
OMSL790155900
Consult Sales
Availability:


50 cm stainless steel pole, zinc die-cast foot, grey
OMSL790156900
340.21
Availability: 5 weeks

60 cm stainless steel pole, zinc die-cast foot, grey
OMSL790156900
340.21
Availability: 5 weeks

60 cm stainless steel pole, zinc die-cast foot, grey
OMSL790157900
379.64
Availability: 5 weeks

80 cm stainless steel pole, zinc die-cast foot, grey
OMSL790551900
261.38
Availability: 5 weeks

5 cm stainless steel pole, zinc die-cast foot, black
OMSL790552900
261.38
Availability: 1 week

10 cm stainless steel pole, zinc die-cast foot, black
OMSL790553900
Consult Sales
Availability:


25 cm stainless steel pole, zinc die-cast foot, black
OMSL790554900
340.21
Availability: 5 weeks

40 cm stainless steel pole, zinc die-cast foot, black
OMSL790555900
Consult Sales
Availability:


50 cm stainless steel pole, zinc die-cast foot, black
OMSL790556900
379.64
Availability: 1 week

60 cm stainless steel pole, zinc die-cast foot, black
OMSL790557900
462.89
Availability: 5 weeks

80 cm stainless steel pole, zinc die-cast foot, black
Light Modules1,2,3
OMSL750001900
89.12
Availability: 1 week

Steady, Amber lens colour, Universal voltage module
OMSL750002900
86.19
Availability: 1 week

Steady, Red lens colour, Universal voltage module
OMSL750004900
89.12
Availability: 1 week

Steady, Clear lens colour, Universal voltage module
OMSL750005900
86.19
Availability: 1 week

Steady, Blue lens colour, Universal voltage module
OMSL750006900
90.93
Availability: 1 week

Steady, Green lens colour, Universal voltage module
OMSL750007900
86.19
Availability: 1 week

Steady, Yellow lens colour, Universal voltage module
OMSL760001405
151.66
Availability: 1 week

Flashing, Amber lens colour, 12 to 24 Vac/Vdc
OMSL760001310
151.66
Availability: 5 weeks

Flashing, Amber lens colour, 120 Vac
OMSL760001313
151.66
Availability: 5 weeks

Flashing, Amber lens colour, 240 Vac
OMSL760002405
151.66
Availability: 1 week

Flashing, Red lens colour, 12 to 24 Vac/Vdc
OMSL760002310
151.66
Availability: 1 week

Flashing, Red lens colour, 120 Vac
OMSL760002313
151.66
Availability: 5 weeks

Flashing, Red lens colour, 240 Vac
OMSL760004405
151.66
Availability: 5 weeks

Flashing, Clear lens colour, 12 to 24 Vac/Vdc
OMSL760004310
151.66
Availability: 5 weeks

Flashing, Clear lens colour, 120 Vac
OMSL760004313
151.66
Availability: 5 weeks

Flashing, Clear lens colour, 240 Vac
OMSL760005405
151.66
Availability: 1 week

Flashing, Blue lens colour, 12 to 24 Vac/Vdc
OMSL760005310
151.66
Availability: 5 weeks

Flashing, Blue lens colour, 120 Vac
OMSL760005313
151.66
Availability: 5 weeks

Flashing, Blue lens colour, 240 Vac
OMSL760006405
151.66
Availability: 5 weeks

Flashing, Green lens colour, 12 to 24 Vac/Vdc
OMSL760006310
151.66
Availability: 1 week

Flashing, Green lens colour, 120 Vac
OMSL760006313
151.66
Availability: 5 weeks

Flashing, Green lens colour, 240 Vac
OMSL760007405
151.66
Availability: 5 weeks

Flashing, Yellow lens colour, 12 to 24 Vac/Vdc
OMSL760007310
151.66
Availability: 5 weeks

Flashing, Yellow lens colour, 120 Vac
OMSL760007313
151.66
Availability: 5 weeks

Flashing, Yellow lens colour, 240 Vac
OMSL770001405
306.10
Availability: 1 week

Strobe (Includes xenon bulbs), Amber lens colour, 12 to 24 Vac/Vdc
OMSL770001310
306.10
Availability: 1 week

Strobe (Includes xenon bulbs), Amber lens colour, 120 Vac
OMSL770001313
306.10
Availability: 5 weeks

Strobe (Includes xenon bulbs), Amber lens colour, 240 Vac
OMSL770002405
306.10
Availability: 5 weeks

Strobe (Includes xenon bulbs), Red lens colour, 12 to 24 Vac/Vdc
OMSL770002310
306.10
Availability: 1 week

Strobe (Includes xenon bulbs), Red lens colour, 120 Vac
OMSL770002313
306.10
Availability: 5 weeks

Strobe (Includes xenon bulbs), Red lens colour, 240 Vac
OMSL770004405
306.10
Availability: 5 weeks

Strobe (Includes xenon bulbs), Clear lens colour, 12 to 24 Vac/Vdc
OMSL770004310
306.10
Availability: 1 week

Strobe (Includes xenon bulbs), Clear lens colour, 120 Vac
OMSL770004313
306.10
Availability: 5 weeks

Strobe (Includes xenon bulbs), Clear lens colour, 240 Vac
OMSL770005405
306.10
Availability: 1 week

Strobe (Includes xenon bulbs), Blue lens colour, 12 to 24 Vac/Vdc
OMSL770005310
306.10
Availability: 1 week

Strobe (Includes xenon bulbs), Blue lens colour, 120 Vac
OMSL770005313
306.10
Availability: 5 weeks

Strobe (Includes xenon bulbs), Blue lens colour, 240 Vac
OMSL770006405
306.10
Availability: 5 weeks

Strobe (Includes xenon bulbs), Green lens colour, 12 to 24 Vac/Vdc
OMSL770006310
306.10
Availability: 1 week

Strobe (Includes xenon bulbs), Green lens colour, 120 Vac
OMSL770006313
306.10
Availability: 5 weeks

Strobe (Includes xenon bulbs), Green lens colour, 240 Vac
OMSL770007405
306.10
Availability: 5 weeks

Strobe (Includes xenon bulbs), Yellow lens colour, 12 to 24 Vac/Vdc
OMSL770007310
306.10
Availability: 5 weeks

Strobe (Includes xenon bulbs), Yellow lens colour, 120 Vac
OMSL770007313
306.10
Availability: 5 weeks

Strobe (Includes xenon bulbs), Yellow lens colour, 240 Vac
Incandescent Bulbs
OMSL890010904-5PK
32.77
Availability: 3 weeks

Incandescent Lamp, Steady, Clear, 12 Vac/Vdc
OMSL890010905-5PK
33.45
Availability: 1 week

Incandescent Lamp, Steady, Clear, 24 Vac/Vdc
OMSL890010910-5PK
33.45
Availability: 3 weeks

Incandescent Lamp, Steady, Clear, 120 Vac
OMSL890010913-5PK
31.70
Availability: 3 weeks

Incandescent Lamp, Steady, Clear, 240 Vac
LED Bulbs4
OMSL893001404
191.13
Availability: 5 weeks

Steady, Amber LED Lamp (for use with steady module and flashing), 12 Vac/Vdc
OMSL893002404
191.13
Availability: 5 weeks

Steady, Red LED Lamp (for use with steady module and flashing), 12 Vac/Vdc
OMSL893004404
191.13
Availability: 5 weeks

Steady, Clear LED Lamp (for use with steady module and flashing), 12 Vac/Vdc
OMSL893005404
191.13
Availability: 1 week

Steady, Blue LED Lamp (for use with steady module and flashing), 12 Vac/Vdc
OMSL893006404
191.13
Availability: 5 weeks

Steady, Green LED Lamp (for use with steady module and flashing), 12 Vac/Vdc
OMSL893007404
191.13
Availability: 5 weeks

Steady, Yellow LED Lamp (for use with steady module and flashing), 12 Vac/Vdc
OMSL893011404
284.57
Availability: 5 weeks

Flashing, Amber LED Lamp (for use with steady module only), 12 Vac/Vdc
OMSL893012404
284.57
Availability: 5 weeks

Flashing, Red LED Lamp (for use with steady module only), 12 Vac/Vdc
OMSL893014404
284.57
Availability: 5 weeks

Flashing, Clear LED Lamp (for use with steady module only), 12 Vac/Vdc
OMSL893015404
284.57
Availability: 5 weeks

Flashing, Blue LED Lamp (for use with steady module only), 12 Vac/Vdc
OMSL893016404
284.57
Availability: 5 weeks

Flashing, Green LED Lamp (for use with steady module only), 12 Vac/Vdc
OMSL893017404
284.57
Availability: 5 weeks

Flashing, Yellow LED Lamp (for use with steady module only), 12 Vac/Vdc
OMSL893001405
191.13
Availability: 1 week

Steady, Amber LED Lamp (for use with steady module and flashing), 24 Vac/Vdc
OMSL893002405
197.62
Availability: 1 week

Steady, Red LED Lamp (for use with steady module and flashing), 24 Vac/Vdc
OMSL893004405
197.62
Availability: 1 week

Steady, Clear LED Lamp (for use with steady module and flashing), 24 Vac/Vdc
OMSL893005405
191.13
Availability: 1 week

Steady, Blue LED Lamp (for use with steady module and flashing), 24 Vac/Vdc
OMSL893006405
191.13
Availability: 5 weeks

Steady, Green LED Lamp (for use with steady module and flashing), 24 Vac/Vdc
OMSL893007405
191.13
Availability: 1 week

Steady, Yellow LED Lamp (for use with steady module and flashing), 24 Vac/Vdc
OMSL893011405
284.57
Availability: 5 weeks

Flashing, Amber LED Lamp (for use with steady module only), 24 Vac/Vdc
OMSL893012405
284.57
Availability: 5 weeks

Flashing, Red LED Lamp (for use with steady module only), 24 Vac/Vdc
OMSL893014405
284.57
Availability: 5 weeks

Flashing, Clear LED Lamp (for use with steady module only), 24 Vac/Vdc
OMSL893015405
284.57
Availability: 5 weeks

Flashing, Blue LED Lamp (for use with steady module only), 24 Vac/Vdc
OMSL893016405
284.57
Availability: 5 weeks

Flashing, Green LED Lamp (for use with steady module only), 24 Vac/Vdc
OMSL893017405
284.57
Availability: 5 weeks

Flashing, Yellow LED Lamp (for use with steady module only), 24 Vac/Vdc
OMSL893001310
191.13
Availability: 1 week

Steady, Amber LED Lamp (for use with steady module and flashing), 120 Vac
OMSL893002310
191.13
Availability: 5 weeks

Steady, Red LED Lamp (for use with steady module and flashing), 120 Vac
OMSL893004310
191.13
Availability: 5 weeks

Steady, Clear LED Lamp (for use with steady module and flashing), 120 Vac
OMSL893005310
191.13
Availability: 5 weeks

Steady, Blue LED Lamp (for use with steady module and flashing), 120 Vac
All amounts shown in EUR
Note: 1 Light bulb not included. Order bulb separately.
2 If using LED bulbs, match the lens colour of the light module to the emitting colour of the LED bulb.
3 The flashing module accepts incandescent or LED steady bulbs only. The circuitry within the flashing module allows the bulb to flash ON and OFF continuously when powered.
4 Always match the emitting colour of the LED bulb to the lens colour of the light module.
5 Sound modules must be installed as the last component (top level) of the tower light assembly.
6 Tower light assemblies containing dual circuit sound modules may contain a maximum of four modules, consisting of three Light Modules and the Sound Module.
7Zinc Base should not be mounted on plastic junction boxes.

We noticed you are from the US. Visit your local site for regional offers and live support.
