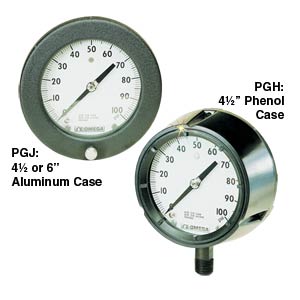

Industrial Process Gauges, Types H and J, 4 1/2 and 6-inch Dials

PGH & PGJ

Dial pressure gauges | PGH & PGJ

Dial pressure gauges

321,82 PGH-45L-100

  • 0.5% FS Accuracy
  • Ranges from 15 psig to 20,000 psig
  • Double-Strength Shatter-Resistant Glass
  • Heavy Duty 316 SS Wetted Parts
  • Compatible with Most Media
Pressure Gauges - View related products

Description

More information about how a Pressure Gauge works in this link.

SPECIFICATIONS
Dial Arc: 270°
Case: Lower Connection
   PGH: 4½" dial, lower or back connection; Black Phenol
   PGJ: 4½" or 6" dial; back connection; Aluminum case
Window: Double-Strength Glass
Bourdon Tube: 316 Stainless Steel
Connection: ½ NPT Male, 316 SS
Mounting: Stem, Flush or Surface
Operating Temperature: 121°C (250°F) Max.

Examples of pricing for popular models is referenced in the "To Order" box.
Place Order(Specify Model Number)
Part Number/Desc.
Qty
Description
Type PGH Gauges with Black Phenol Case, 4½" Dial and Back Fitting
PGH-45B-30V
309.53
Availability: 1 week

0-30 in Hg industrial vacuum gauge
PGH-45B-15
304.70
Availability: 6 weeks

0-15 psi industrial gauge
PGH-45B-30
304.70
Availability: 6 weeks

0-30 psi industrial gauge
PGH-45B-100
321.82
Availability: 1 week

0-100 psi industrial gauge
PGH-45B-160
321.82
Availability: 6 weeks

0-160 psi industrial gauge
PGH-45B-200
321.82
Availability: 6 weeks

0-200 psi industrial gauge
Type PGH Gauges with Black Phenol Case, 4½" Dial and Lower Fitting
PGH-45L-30V
321.82
Availability: 1 week

0-30 in Hg industrial vacuum gauge
PGH-45L-30V/15
309.53
Availability: 6 weeks

30 inHg to 15 psi industrial gauge
PGH-45L-15
309.53
Availability: 6 weeks

0-15 psi industrial gauge
PGH-45L-30
309.53
Availability: 6 weeks

0-30 psi industrial gauge
PGH-45L-60
309.53
Availability: 1 week

0-60 psi industrial gauge
PGH-45L-100
321.82
Availability: 1 week

0-100 psi industrial gauge
PGH-45L-160
311.25
Availability: 1 week

0-160 psi industrial gauge
PGH-45L-200
309.53
Availability: 7 weeks

0-200 psi industrial gauge
PGH-45L-300
309.53
Availability: 1 week

0-300 psi industrial gauge
PGH-45L-600
321.82
Availability: 1 week

0-600 psi industrial gauge
PGH-45L-1000
309.53
Availability: 6 weeks

0-1,000 psi industrial gauge
PGH-45L-2000
392.43
Availability: 9 weeks

0-2000 psi industrial gauge
Type PGJ Gauges with Aluminum Case, 4½" Dial and Back Fitting
PGJ-45B-30V/100
444.10
Availability: 6 weeks

30 inHg to 100 psi industrial gauge
PGJ-45B-15
461.73
Availability: 6 weeks

0-15 psi industrial gauge
PGJ-45B-100
461.72
Availability: 8 weeks

0-100 psi industrial gauge
PGJ-45B-200
444.10
Availability: 6 weeks

0-200 psi industrial gauge
PGJ-45B-300
444.10
Availability: 6 weeks

0-300 psi industrial gauge
PGJ-45B-600
444.10
Availability: 1 week

0-600 psi industrial gauge
Type PGJ Gauges with Aluminum Case, 6" Dial and Back Fitting
PGJ-60B-30V
629.23
Availability: 6 weeks

0-30 in Hg industrial vacuum gauge
PGJ-60B-30V/300
625.77
Availability: 6 weeks

30 inHg to 300 psi industrial gauge
PGJ-60B-30
625.77
Availability: 6 weeks

0-30 psi industrial gauge
PGJ-60B-160
625.77
Availability: 6 weeks

0-160 psi industrial gauge
PGJ-60B-300
625.77
Availability: 6 weeks

0-300 psi industrial gauge
PGJ-60B-400
625.77
Availability: 6 weeks

0-400 psi industrial gauge
PGJ-60B-600
629.23
Availability: 6 weeks

0-600 psi industrial gauge
PGJ-60B-800
625.77
Availability: 6 weeks

0-800 psi industrial gauge

Order By Part Number

Part Number
Qty
Part Number
Qty


All amounts shown in EUR

Part Number Builder

Build Your Part Number Below
Option Descriptions:


(1) Case style and dial size select from:
PGH-45L for flush mount with 4 1/2 inch dial and lower fitting
PGH-45B for flush mount with 4 1/2 inch dial and back fitting
PGJ-45B for bezel mount with 4 1/2 inch dial and back fitting
PGJ-60B for bezel mount with 6 inch dial and back fitting

(2) Range (psig) select from:
30V/15 for 30 in Hg vacuum to 15 psig
30V/30 for 30 in Hg vacuum to 30 psig
30V/60 for 30 in Hg vacuum to 60 psig
30V/100 for 30 in Hg vacuum to 100 psig
30V/150 for 30 in Hg vacuum to 150 psig
30V/300 for 30 in Hg vacuum to 300 psig
15 for 0 to 15 psig
30 for 0 to 30 psig
60 for 0 to 60 psig
100 for 0 to 100 psig
160 for 0 to 160 psig
200 for 0 to 200 psig
300 for 0 to 300 psig
400 for 0 to 400 psig
600 for 0 to 600 psig
1000 for 0 to 1000 psig
1500 for 0 to 1500 psig
2000 for 0 to 2000 psig
3000 for 0 to 3000 psig
5000 for 0 to 5000 psig
10000 for 0 to 10000 psig
20000 for 0 to 20000 psig

(3) Options select from:
for no options leave blank
-F for Silicone oil filled (PGH models only)
-X6B for cleaning for Oxygen service (add $65.00)
Note: All combinations may not be valid, check spec sheet for valid part numbers.
