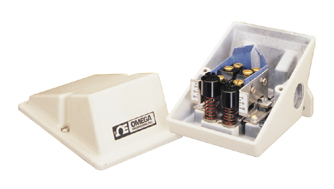

NEMA-4X Differential Pressure Switches

PSW-351

^€750,91 PSW-351

PLACE ORDER

Setpoint Repeatability of ±1%
Rugged Epoxy-Coated NEMA-4X Watertight Enclosure
Dependable Switch Actuation Between the Two Input Pressures
High Static Pressure
Single Setpoint with Adjsutable Deadband or Dual Setpoint with Fixed Deadband

Pressure Switches - View related products

Description

SPECIFICATIONS
Approval: UL listed, CSA certified
Storage Temp: -29 to 66°C (-20 to 150°F)
Ambient Temp. Limits: -29 to 66°C (-20 to 150°F) Set point typically shifts +1% of range per 28°C (50°F) of temperature change
Process Fluid: -18 to 66°C (0 to 150°F) Buna-N and PTFE diaphragms; -7 to 149°C (20 to 300°F) for FKM diaphragms
Enclosure: NEMA-4X watertight and corrosion resistant
Setpoint Repeatability: ±1% of range
Switch Output: 1 or 2 SPDT
Electrical Rating: 10 A: 125/250 Vac; 0.5 A: 125 Vdc; 0.25 A: 250 Vac; 15 A: 125/250 Vac
Enclosure: Epoxy coated aluminum, gasketed
Weight: 0.9 kg (2 lb)
Electrical Connection: 3 /4 NPT female
Pressure Connection: 1 /4 NPTF; brass-plated carbon steel for psid ranges; carbon steel for H2O ranges

For full product specifications view pdf file in "Related Links" below

Place Order(Specify Model Number)

Part Number/Desc.

Qty

Description

PSW-351

€750,91

Availability: 7 weeks

5-30 in H2O single setpoint differential pressure switch with adjustable deadband, Buna-N diaphragm and 10 Amp SPDT switch

PSW-352

€750,91

Availability: 7 weeks

9-60 in H2O single setpoint differential pressure switch with adjustable deadband, Buna-N diaphragm and 10 Amp SPDT switch

PSW-353

€750,91

Availability: 7 weeks

15-100 in H2O single setpoint differential pressure switch with adjustable deadband, Buna-N diaphragm and 10 Amp SPDT switch

PSW-354

€750,91

Availability: 7 weeks

23-150 in H2O single setpoint differential pressure switch with adjustable deadband, Buna-N diaphragm and 10 Amp SPDT switch

PSW-355

€826,09

Availability: 1 week

5-30 psid single setpoint switch with adjustable deadband, Buna-N diaphragm and 10 Amp SPDT switch

PSW-356

€821,52

Availability: 7 weeks

9-60 psid single setpoint switch with adjustable deadband, Buna-N diaphragm and 10 Amp SPDT switch

PSW-357

€821,52

Availability: 7 weeks

30-200 psid single setpoint switch with adjustable deadband, Buna-N diaphragm and 10 Amp SPDT switch

PSW-358

€821,52

Availability: 7 weeks

60-400 psid single setpoint switch with adjustable deadband, Buna-N diaphragm and 10 Amp SPDT switch

PSW-361

€802,25

Availability: 7 weeks

5-30 in H2O dual setpoint differential pressure switch with fixed deadband, Buna-N diaphragm and 10 Amp SPDT switch

PSW-362

€802,25

Availability: 7 weeks

9-60 in H2O dual setpoint differential pressure switch with fixed deadband, Buna-N diaphragm and 10 Amp SPDT switch

PSW-363

€802,25

Availability: 7 weeks

15-100 in H2O dual setpoint differential pressure switch with fixed deadband, Buna-N diaphragm and 10 Amp SPDT switch

PSW-364

€802,25

Availability: 7 weeks

23-150 in H2O dual setpoint differential pressure switch with fixed deadband, Buna-N diaphragm and 10 Amp SPDT switch

PSW-365

€872,85

Availability: 7 weeks

5-30 psid dual setpoint switch with fixed deadband, Buna-N diaphragm and 10 Amp SPDT switch

PSW-366

€872,85

Availability: 7 weeks

9-60 psid dual setpoint switch with fixed deadband, Buna-N diaphragm and 10 Amp SPDT switch

PSW-367

€872,85

Availability: 7 weeks

30-200 psid dual setpoint switch with fixed deadband, Buna-N diaphragm and 10 Amp SPDT switch

PSW-368

€872,85

Availability: 7 weeks

60-400 psid dual setpoint switch with fixed deadband, Buna-N diaphragm and 10 Amp SPDT switch

† All amounts shown in EUR
