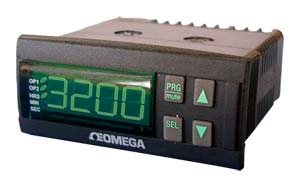

Compact Programmable Timer

PTC-14

Compact Programmable Timer | PTC-14

Compact Programmable Timer

112,00 PTC-14

1 year warranty CE
  • 9 Programmable Modes
  • 6 Timing Ranges
  • Security Code
  • 2- or 1-Time plus 1 Instantaneous Contact
  • Programmable Reset Function
  • External Hold and Reset
  • IP65 Water and Dust Protection
  • LED Status and Timing Indicators
  • RoHS Compliant
Temperature & Process Meters, Timers and Counters - View related products

Description

The PTC-14 programmable timer, packaged in a compact 75 x 33 x 69 mm housing, is an extremely versatile product offering nine operating modes applied to two timed output relay contacts. When only one of the timers is being used, the other output acts as a set of instantaneous changeover contacts. The single model provides timing from 0.1 seconds to 100 hours.

Specifications
Timing Ranges:
0 to 999.9 sec,
0 to 9999 sec, 0 to 9999 min,
0 to 99 min 59 sec, 0 to 99 hr 59 min,
23:59 in 24 hr clock mode
Timing Modes:
DE, DDE, DP, CCT, DE-2, IT-2,
DE-IT, DD-2, 24-hour clock
Supply Voltage: 12 to 24 Vac/Vdc
Supply Variation:±10% of supply voltage
Battery Backup:External 3 Vdc to
retain clock on 24 hr mode only at
loss of supply voltage
Power Drain: 3 Va max
Contact Ratings:
OP1: 8 A @ 240 Vac, SPDT
OP2: 5 A @ 240 Vac resistive, SPST
Reset Time:100 msec max
Ambient Conditions
Working Temp:0 to 50°C
Storage Temp:0 to 70°C
Approvals: Complies with CE directives EN50081-1 and
EN50082-1 for EMC and EN61010-1 for low voltage
Weight: 140 g
  Timing Modes
Timing Modes
Place Order(Specify Model Number)
Part Number/Desc.
Qty
Description
Quick Ship
PTC-14
112,00
Availability: 1 week

Programmable timer, 12-24Vac/dc powered
All amounts shown in EUR
Ordering Example: (1) PTC-14 Panel mount programmable timer, €112,00
