PX35D0
Millivolt Output Pressure Transducer
Description
This item is discontinued.
Find how a Pressure Transducer works on this link or how we can customize your Pressure Sensor.

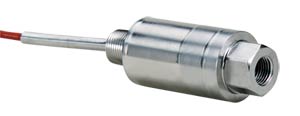

OMEGA’s PX35 is a high-accuracy,
millivolt output, industrial pressure
transducer. It can be ordered with a
hermetically sealed gage, making it
suitable for the harshest
environments. The PX35 is
available in gage, sealed gage, and
absolute models. Three meters (10')
of 4-conductor shielded cable is
standard. A twist-lock-connector
electrical termination is also
available.
The PX35 is also available in metric configurations, with G1/4 or G1/8 ports, and models from 0-1 to 0-400 bar pressure ranges.
Please see the PXM35 for complete details, or contact our Pressure department for more information..
SPECIFICATIONS
Excitation: 10 Vdc (15 V max)
Output: 3 mV/V nominal
Accuracy: 0.25% linearity, hysteresis and repeatability combined
Zero Balance:±2.0% FSO
Input Resistance: 350 Ω min
Output Resistance: 315 to 530 Ω
Operating Temp Range: -73 to 149°C (-100 to 300°F)
Compensated Temp Range: 16 to 71°C (60 to 160°F)
Thermal Effects:
Span: 0.003% rdg/°F
Zero: 0.004% FSO/°F
Proof Pressure: 150% of rated pressure
Burst Pressure: 300% of rated pressure
Wetted Parts: 17-4 PH stainless steel
Pressure Port:
<10,000 psi: ¼-18 NPT internal
≤10,000 psi: 9⁄16-18, ¼" HP tube
Electrical Connection: 3 m (10') 4-conductor cable
† All amounts shown in EUR
Note: 10,000psi and above come with 9/16 -18, 1/4 " HP Tube Fitting.
Metric and Sealed Gage Units Available - Consult Engineering or Sales.
