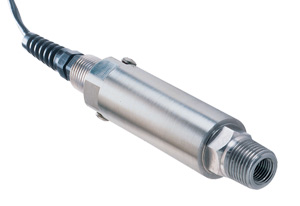

Heavy Duty Industrial Pressure Transmitter

PX41-I Series

rugged pressure transmitter | PX41-I Series

rugged pressure transmitter

650,00 PX41T0-100GI

  • NIST Traceable Calibration Certificate
  • FM Intrinsically Safe Standard
  • Optional U.S FM Approved for Hazardous Locations
  • U.S Mining MSHA Approved Version Available
  • All Stainless Steel Construction
  • Sealed SS Case for Harsh Environments
Pressure Transducers - View related products

Description

OMEGA’s PX41 Series consists of high-accuracy, low-cost pressure transmitters. Their sealed, all stainless steel construction makes them suitable for the harshest environments. They are available in gauge, absolute, or sealed gauge models. Three metres of PVC insulated screened cable is standard, or a Bendix style connector is also available. A wide selection of amplified voltage and current outputs makes the PX41 a truly versatile family of industrial transmitters.

SPECIFICATIONS
4 to 20 mA Output
Excitation:
10 to 40 Vdc
Output: 4 to 20 mA (±10% adj)
Zero Balance: 4 mA +10% -2% adj
Agency Approvals: Must be specified at time of order
FM Intrinsically Safe: IS/I.II.III/1/CDEFG (standard on all models)
FM Hazardous Location: S/I/1/ABCD optional. Available on absolute pressure and sealed gauge units with cable termination. Must be specified at time of order.
MSHA: Mine Safety and Health Administration, optional. Must be specified at time of order.
Accuracy: 0.25% linearity, hysteresis and repeatability combined
Sensing Element: 4-active-arm bridge with hermetically sealed thick-film strain gauges
Operating Temp Range: -47 to 121°C (-50 to 250°F)
Compensated Temp Range: 16 to 71°C (60 to 160°F)
Thermal Effects:
    Span: 0.003% rdg/°F
    Zero: 0.005% FSO/F
Proof Pressure: 150% of rated pressure
Burst Pressure: 300% of rated pressure
Wetted Parts: 17-4 PH and 316 SS
Pressure Port: <10,000 psi ½-14 NPT external and ¼-18 NPT internal. =/+10,000 psi F250C autoclave 916-18 thread
Electrical Connection: Shown: 3 m (10'), 2-conductor, PVC insulated cable. Also available: PTIH-10-6P connector. Mating connector (not included) PT06F-10-6S-R. Units with FM option do not have external zero or span.
Place Order(Specify Model Number)
Part Number/Desc.
Qty
Description
Quick Ship
PX41T0-015AI
710,00
Availability: 9 weeks

0-15 psi absolute transducer with 4-20 mA output and 3 metre cable
Quick Ship
PX41T0-020AI
710,00
Availability: 1 week

0-20 psi absolute transducer with 4-20 mA output and 3 metre cable
Quick Ship
PX41T0-050AI
650,00
Availability: 1 week

0-50 psi absolute transducer with 4-20 mA output and 3 metre cable
Quick Ship
PX41T0-010GI
710,00
Availability: 1 week

0-10 psi gauge transducer with 4-20 mA output and 3 metre cable
Quick Ship
PX41T0-015GI
710,00
Availability: 1 week

0-15 psi gauge transducer with 4-20 mA output and 3 metre cable
Quick Ship
PX41T0-020GI
710,00
Availability: 1 week

0-20 psi gauge transducer with 4-20 mA output and 3 metre cable
Quick Ship
PX41T0-030GI
710,00
Availability: 1 week

0-30 psi gauge transducer with 4-20 mA output and 3 metre cable
Quick Ship
PX41T0-050GI
650,00
Availability: 9 weeks

0-50 psi gauge transducer with 4-20 mA output and 3 metre cable
Quick Ship
PX41T0-075GI
650,00
Availability: 1 week

0-75 psi gauge transducer with 4-20 mA output and 3 metre cable
Quick Ship
PX41T0-100GI
650,00
Availability: 1 week

0-100 psi gauge transducer with 4-20 mA output and 3 metre cable
Quick Ship
PX41T0-200GI
650,00
Availability: 1 week

0-200 psi gauge transducer with 4-20 mA output and 3 metre cable
Quick Ship
PX41T0-300GI
650,00
Availability: 9 weeks

0-300 psi gauge transducer with 4-20 mA output and 3 metre cable
Quick Ship
PX41T0-500GI
650,00
Availability: 9 weeks

0-500 psi gauge transducer with 4-20 mA output and 3 metre cable
Quick Ship
PX41T0-750GI
650,00
Availability: 1 week

0-750 psi gauge transducer with 4-20 mA output and 3 metre cable
Quick Ship
PX41T0-1KGI
650,00
Availability: 1 week

0-1,000 psi gauge transducer with 4-20 mA output and 3 metre cable
Quick Ship
PX41T0-1.5KGI
650,00
Availability: 1 week

0-1,500 psi gauge transducer with 4-20 mA output and 3 metre cable
Quick Ship
PX41T0-2KGI
650,00
Availability: 1 week

0-2,000 psi gauge transducer with 4-20 mA output and 3 metre cable
Quick Ship
PX41T0-3.5KGI
650,00
Availability: 1 week

0-3,500 psi gauge transducer with 4-20 mA output and 3 metre cable
Quick Ship
PX41T0-5KGI
650,00
Availability: 1 week

0-5,000 psi gauge transducer with 4-20 mA output and 3 metre cable
Quick Ship
PX41T0-7.5KGI
Consult Sales
Availability:


0-7,500 psi gauge transducer with 4-20 mA output and 3 metre cable
Quick Ship
PX41S1-10KGI
650.00
Availability: 1 week

0-10,000 psig (0-689 bar) transmitter with 1/4HP Tube Fitting Female (9/16 UNF), with Twist Lock Connector
Quick Ship
PX41S1-15KGI
650.00
Availability: 1 week

0-15,000 psig (0-1034 bar) transmitter with 1/4HP Tube Fitting Female (9/16 UNF), with Twist Lock Connector
Quick Ship
PX41S1-20KGI
650.00
Availability: 1 week

0-20,000 psig (0-1379 bar) transmitter with 1/4HP Tube Fitting Female (9/16 UNF), with Twist Lock Connector
Quick Ship
PX41S0-30KSI
650.00
Availability: 1 week

0-30,000 psis (0-2068 bar) transmitter with 1/4HP Tube Fitting Female (9/16 UNF), with 3 metre cable
Quick Ship
PX41S1-30KGI
670.00
Availability: 9 weeks

0-30,000 psig (0-2068 bar) transmitter with 1/4HP Tube Fitting Female (9/16 UNF), with Twist Lock Connector
Accessories
Quick Ship
PT06F10-6S-R
€26.50
Availability: In Stock

6 Pin Twist Lock Connector
Quick Ship
DP25B-E-230
€284.00
Availability: 2 weeks

4 Digit Indicator with 24 Vdc excitation for pressure transmitter, 230 VAC supply.
Quick Ship
DP41-E-230
€610.00
Availability: 4 weeks

6 Digit Indicator with 24 Vdc excitation for pressure transmitter, 230 VAC supply.
All amounts shown in EUR
Note:
NIST Traceable Calibration Certificate Included
For Metric Threads and Ranges please see the PXM41-I Series
For complete product specifications see the Related Links section at the bottom of this page.

Ordering Example: (1) PX41T0-100GI is a 100 psi gauge transmitter with 3m cable and 4-20 mA output, €650.00

Part Number Builder

Build Your Part Number Below
Option Descriptions:


(1) Pressure Port select from:
T for Dual 1/2-14 NPT External - 1/4-18 Internal
C for 1/4-18 NPT-M
D for 1/4-18 NPT-F
S for 1/4 HP Tube Fitting(Greater than 10K psi only)
K for 7/16-20 UNF-F(Greater than 10K psi only)
J for 7/16-20 UNF-M

(2) Electrical Connection select from:
0 for 3 metres of screened cable
1 for PT1H-10-6P Connector (or equal)
5 for Lightening Protected Amplifier Housing(4-20 mA model only)

(3) Range (psi) select from:
010 for 0-10
015 for 0-15
020 for 0-20
025 for 0-25
030 for 0-30
050 for 0-50
075 for 0-75
100 for 0-100
200 for 0-200
300 for 0-300
500 for 0-500
750 for 0-750
1K for 0-1000
1.5K for 0-1500
2K for 0-2000
2.5K for 0-2500
3K for 0-3000
3.5K for 0-3500
5K for 0-5000
7.5K for 0-7500
10K for 0-10000
15K for 0-15000
20K for 0-20000
30K for 0-30000

(4) Units select from:
G for Gauge Model
S for Sealed Gauge Model
A for Absolute Model

(5) Output select from:
I for 4 to 20 mA Output
5V for 0.5 to 5.5 Vdc Output
5T for 0 to 5 Vdc Output
10V for 0.5 to 10.5 Vdc Output
10T for 0 to 10 Vdc Output

(6) Options select from:
for No Options
-FM for FM Hazardous Location (cable style 4-20mA output Sealed or Absolute only)
-MSHA for Mine Safety and Health Admin. (0.5 to 5.5V or 4-20 mA output)
-OX for Cleaned for Oxygen use
Note: All combinations may not be valid, check spec sheet for valid part numbers.
