  Discontinued - Flush Diaphragm Low Pressure Transducer

PX42G7

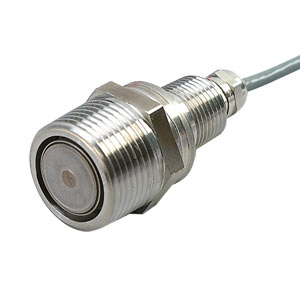

Flush Diaphragm Low Pressure Transducer | PX42G7

Flush Diaphragm Low Pressure Transducer

See All Models Below

  • As an alternative see thePX409S seriesor the“Pressure Transducer Builder”
  • All Stainless Steel Construction
  • Optional Hastelloy C Construction
  • Processing and Industrial Applications
  • Large Flush Diaphragm for Plug Free Measurement of Difficult Fluids
  • 3m Vented Cable with Conduit Connection on Body for Installation in Harsh Environments
  • Heavy Duty 1" NPT Fitting
  • Traceable Calibration Certificate
Pressure Transducers - View related products

Description

OMEGA's PX42 is a high-accuracy, millivolt output, industrial pressure transducer with a specially designed flush diaphragm for use with industrial fluids and slurries that are difficult to measure because of sticking or plugging of orifices. Its hermetically sealed, all stainless steel construction makes it suitable for the harshest industrial environments. Three metres (10') of vented 4-core screened cable is standard with a ½ NPT fitting on the body for conduit installation. Pressure ranges from 0 to 3 up to 30 psi are available to cover most processing and industrial applications.

SPECIFICATIONS

ELECTRICAL
Excitation:
10 Vac/dc (15 V max)
Output: 1.5 mV/V
Input Resistance: 300 Ω min
Output Resistance: 300 Ω min
Zero Balance: ±2.0% FSO (±5% for 15 psi)BB

PERFORMANCE
Accuracy:
0.25% linearity, hysteresis and repeatability combined

ENVIRONMENTAL
Operating Temperature Range:
-54 to 121°C (-65 to 250°F)
Compensated Temperature Range: 16 to 71°C (60 to 160°F)
Thermal Effects:
Span: 0.005% of rdg/°F
Zero: 0.005% of FSO/°F

PRESSURE
Proof Pressure:

≤8 psi: 300% of rated pressure
>8 psi: 200% of rated pressure
Burst Pressure: 500% of rated pressure

MECHANICAL
Wetted Parts:
316L SS with InconelR diaphragm
Optional: Hastelloy C-276
Pressure Port: 1-11½ NPT male
Electrical Connection: 3 m (10') 4-conductor shielded vented cable
