Industrial Wet/Wet Differential Pressure Transducer with High Over Pressure Capacity

PX80-MV

See All Models Below

PLACE ORDER

Low Differential Pressure at High Line Pressure - up to 1,500 psi
FM Intrinsically Safe
All Stainless Steel Construction
Hermetically Sealed for Harsh Environments
High Overpressure Capability
High Operating Temperature

Pressure Transducers - View related products

Description

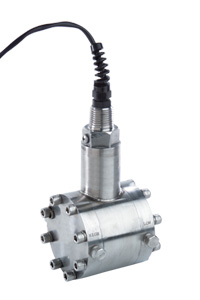

OMEGA’s PX80 is a heavy duty, wet/wet, differential pressure transducer available in ranges from ±1 to ±5000 psid. High over pressure capacity, high operating temperature and excellent temperature compensation make the PX80 an extremely accurate and reliable transducer. The all stainless steel and rugged construction allow it to withstand harsh industrial environments.

The PX80 is also available in metric configurations, with G1/8 or G1/4 ports, and models from 0-2 to 0-350 bar pressure ranges. Please see the PXM80 for complete details, or contact our Pressure department for more information.

SPECIFICATIONS
Excitation: 10 Vdc (15 V max)
Output: 2 mV/V nominal
Bridge Resistance: 350 Ω
Zero Balance: ±1% FSO
Linearity: ±0.25% FSO
Hysteresis: ±0.10% FSO
Repeatability: ±0.1% FSO
Operating Temp Range: -73 to 163°C (-100 to 325°F)
Compensated Temp Range: 17 to 71°C (60 to 160°F)
Thermal Effects:
Zero: 0.009% FSO/°C
Span: 0.009% rdg/°C
Line Pressure: 1500 psi (100 bar) or 150% of rated pressure, whichever is greater
Burst Pressure: 6000 psi (414 bar) minimum
Wetted Parts: 17-4 PH stainless steel and Buna-N O-ring
Pressure Port: See dimensional drawings on spec pages
Electrical Termination:
Style "0" = 3 m (10') cable
Style "1" = PTIH-10-6P (or equiv)
Style "6" = mini DIN
Mating Connector:
Style "1" = PT06F10-6S, sold separately
Style "6" = Mating connector (included)
Weight: 2.3 kg (5 lb)

Examples of pricing for popular models is referenced in the "To Order" box. Use the "Part Number Builder" below to get pricing for all available models.

Place Order(Specify Model Number)

Part Number/Desc.

Qty

Description

PX80D1-030DV

Consult Sales

Availability:

±30 psi differential transducer with 1/4 -18 NPT pressure fittings, a Bendix style electrical connector and a mV/V output.

PX80D1-050DV

Consult Sales

Availability:

±50 psi differential transducer with 1/4 -18 NPT pressure fittings, a Bendix style electrical connector and a mV/V output.

PX80D1-100DV

Consult Sales

Availability:

±100 psi differential transducer with 1/4 -18 NPT pressure fittings, a Bendix style electrical connector and a mV/V output.

PX80D1-150DV

Consult Sales

Availability:

±150 psi differential transducer with 1/4 -18 NPT pressure fittings, a Bendix style electrical connector and a mV/V output.

PX80D1-200DV

Consult Sales

Availability:

±200 psi differential transducer with 1/4 -18 NPT pressure fittings, a Bendix style electrical connector and a mV/V output.

PX80D1-300DV

Consult Sales

Availability:

±300 psi differential transducer with 1/4 -18 NPT pressure fittings, a Bendix style electrical connector and a mV/V output.

PX80D1-500DV

Consult Sales

Availability:

±500 psi differential transducer with 1/4 -18 NPT pressure fittings, a Bendix style electrical connector and a mV/V output.

PX80D1-700DV

Consult Sales

Availability:

±700 psi differential transducer with 1/4 -18 NPT pressure fittings, a Bendix style electrical connector and a mV/V output.

PX80B1-1KDV

Consult Sales

Availability:

±1,000 psi differential transducer with 1/8 -27 NPT pressure fittings, a Bendix style electrical connector and a mV/V output.

PX80B1-1.5KDV

Consult Sales

Availability:

±1,500 psi differential transducer with 1/8 -27 NPT pressure fittings, a Bendix style electrical connector and a mV/V output.

PX80B1-2KDV

Consult Sales

Availability:

±2,000 psi differential transducer with 1/8 -27 NPT pressure fittings, a Bendix style electrical connector and a mV/V output.

PX80B1-2.5KDV

Consult Sales

Availability:

±2,500 psi differential transducer with 1/8 -27 NPT pressure fittings, a Bendix style electrical connector and a mV/V output.

PX80B1-3KDV

Consult Sales

Availability:

±3,000 psi differential transducer with 1/8 -27 NPT pressure fittings, a Bendix style electrical connector and a mV/V output.

PX80B1-5KDV

Consult Sales

Availability:

±5,000 psi differential transducer with 1/8 -27 NPT pressure fittings, a Bendix style electrical connector and a mV/V output.

PT06F10-6S

€40.78

Availability: In Stock

Mating connector (sold separately)

† All amounts shown in EUR
Note: Metric Ranges Available - Consult Engineering

Part Number Builder

Build Your Part Number Below

	(1)	(2)		(3)	(4)	(5)
PX80			-

Option Descriptions:

(1) Pressure Port select from:
B for 1/8-27 NPT Female (1000 psid and over)
D for 1/4-18 NPT Female (700 psid and less)

(2) Electrical Connection select from:
0 for 10 ft PVC Cable
1 for PT1H-10-6P Connector or equal
5 for Lightning Protected Amplifier Housing (4-20 mA model only)

(3) Range (psid) select from:
030 for 0-30
050 for 0-50
100 for 0-100
200 for 0-200
300 for 0-300
500 for 0-500
700 for 0-700
1K for 0-1000
1.5K for 0-1500
2K for 0-2000
2.5K for 0-2500
3K for 0-3000
5K for 0-5000

(4) Units select from:
D for Differential Pressure

(5) Output select from:
V for mV/V
5T for 0-5 Vdc
I for 4-20 mA

Note: All combinations may not be valid, check spec sheet for valid part numbers.
