High Pressure Transducer for High Temperatures, Millivolt Output

PX91-MV

PX91-MV High Pressure Transducer | PX91-MV

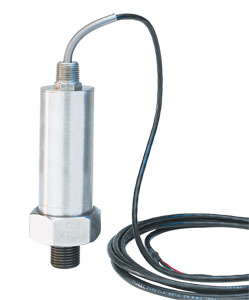

PX91-MV High Pressure Transducer

880,00 PX91N0-10KSV

  • High pressure transducer, FM Approved Intrinsically Safe
  • All Stainless Steel Construction
  • High Operating Temperature 218°C (425°F)
  • Hermetically Sealed for Harsh Environments
  • 5 Point Traceable Calibration included
  • Ranges available up to 200,000 psi
Pressure Transducers - View related products

Description

OMEGA’s PX91 Series is a rugged, high pressure transducer for measurement of pressure at high temperatures. It is hermetically sealed, has all stainless steel construction and is designed for use in very high temperature test chambers. The PX91 is available in sealed gauge pressures up to 200,000 psi and operating temperature up to 218°C (425°F). The pressure connection is via a high pressure ferrule connection. FM approved intrinsically safe is standard.

SPECIFICATIONS
mV/V OUTPUT
Excitation: 10 V ac/dc (15V max)
Output: 1 mV/V ±0.25%
Bridge Resistance: 350 Ohms nominal
Zero Balance: ±2.5%
Agency Approvals: FM Intrinsically Safe IS/I.II.III/1/CDEFG Standard
Linearity: ±0.35% FSO <75K psi ±0.50% FSO ≥75K psi
Hysteresis: ±0.10% FSO
Repeatability: ±0.10% FSO
Operational Temp Range: -73 to +218°C (-100 to +425°F)
Compensated Temp Range: -18 to +218°C (70 to +425°F)
Thermal Effects:
   Span: .01% Rdg/°F
   Zero: .01% FSO/°F
Proof Pressure:
   5K to 50K psi: 120% of rated pressure
   60K to 200K psi: 110% of rated pressure
Burst Pressure:
   5K to 50K psi: 150% of rated pressure
   60K to 200K psi: 120% of rated pressure
Wetted Parts:
   5 to 75K: 17-4 PH Stainless Steel
   80K to 200K: 455 Stainless Steel
Pressure Port:
   5K to 70K psi: 1/2-14 NPS (use with .315 dia. 59° ferrule)
   > 70K psi: 1-14 NS-2 (use with .910 dia 150° ferrule)
Electrical Connection: 10ft (3m) 4-conductor shielded cable

Examples of pricing for popular models is referenced in the "To Order" box. Use the "Part Number Builder" below to get pricing for all available models.
Place Order(Specify Model Number)
Part Number/Desc.
Qty
Description
Quick Ship
PX91N0-5KSV
880,00
Availability: 10 weeks

0-5,000 psi sealed gauge transducer with 1/2 -14 NPS fitting, 3m cable and a mV/V output
Quick Ship
PX91N0-20KSV
880,00
Availability: 12 weeks

0-20,000 psi sealed gauge transducer with 1/2 -14 NPS fitting, 3m cable and a mV/V output
Quick Ship
PX91N0-30KSV
880,00
Availability: 10 weeks

0-30,000 psi sealed gauge transducer with 1/2 -14 NPS fitting, 3m cable and a mV/V output
Quick Ship
PX91N0-35KSV
880,00
Availability: 10 weeks

0-35,000 psi sealed gauge transducer with 1/2 -14 NPS fitting, 3m cable and a mV/V output
Quick Ship
PX91N0-50KSV
880,00
Availability: 10 weeks

0-50,000 psi sealed gauge transducer with 1/2 -14 NPS fitting, 3m cable and a mV/V output
Quick Ship
PX91N0-60KSV
880,00
Availability: 12 weeks

0-60,000 psi sealed gauge transducer with 1/2 -14 NPS fitting, 3m cable and a mV/V output
Quick Ship
PX91P0-100KSV
1.300,00
Availability: 11 weeks

0-100,000 psi sealed gauge transducer with 1-14 NS fitting, 3m cable and a mV/V output
Quick Ship
PX91P0-120KSV
1.505,00
Availability: 11 weeks

0-120,000 psi sealed gauge transducer with 1-14 NS fitting, 3m cable and a mV/V output
Quick Ship
PX91P0-200KSV
1.870,00
Availability: 11 weeks

0-200,000 psi sealed gauge transducer with 1-14 NS fitting, 3m cable and a mV/V output
Accessories
Quick Ship
PX91PCS-N
26.50
Availability: 1 week

Replacement Cone for "N" Style Pressure Fitting for 60,000psi & below
Quick Ship
PX91PCS-P
26.50
Availability: 4 weeks

Replacement Cone for "P" Style Pressure Fitting for 80,000psi & above
Quick Ship
PA9150K-250C
158.00
Availability: 1 week

Process connection adapter for "N" type to 250C fitting
Quick Ship
PA9150K-HIP-XF6
158.00
Availability: 1 week

Process connection adapter for "N" type to HIP-XF6 fitting (3/4-16UNF)
Quick Ship
PA91100K-250C
158.00
Availability: 1 week

Process connection adapter for "P" type to 250C fitting (max pressure 100,000 psi)
All amounts shown in EUR
Note: Metric Ranges available - Consult Sales
