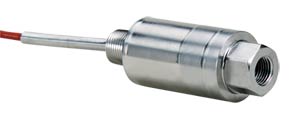

General Purpose Millivolt Output Pressure Transducer, Metric, 0-1 to 0-400 bar

PXM35 Series, Metric

General Purpose Millivolt Output Pressure Transducer, Metric, 0-1 to 0-400 bar | PXM35 Series, Metric

387,00 PXM35MD1-001BARGV

  • All Stainless Steel Construction for Harsh Environments
  • Available in Gauge, Sealed Gauge and Absolute Pressure
  • 3 m 4-core screened cable
Pressure Transducers - View related products

Description

OMEGA’s PXM35 Series is a high accuracy, millivolt output, industrial pressure transducer. Its all stainless steel construction make it suitable for the harshest environments. The PXM35 is available in gauge, sealed gauge or absolute models. Supplied with 3 metres of 4-core screened cable.

SPECIFICATIONS
Excitation:
10 Vdc (15 V Max)
Output: 3 mV/V ±20%
Accuracy: 0.25% Linearity, Hysteresis and Repeatability Combined
Zero Balance: ±2.0% FSO
Input Resistance: 350 Ohms Min.
Output Resistance: 315 to 530 Ohms
Agency Approvals: FM Intrinsically Safe: IS/I.II.III/1/CDEFG - Standard
Operational Temp Range: -73 to 149°C (-100 to 300°F)
Compensated Temp Range: 16 to 71°C (60 to 160°F)
Thermal Effects:
Span:
0.0054% Rdg/°C
Zero: 0.008% FSO/°C
Proof Pressure: 150% of rated pressure
Burst Pressure: 300% of rated pressure
Wetted Parts: 17-4PH Stainless Steel
Pressure Port: G 1/4 MALE Standard
Optional: G 1/4 Female, G 1/8 Male/Female
Electrical Connection: 3 m (10 ft) 4-conductor cable
Place Order(Specify Model Number)
Part Number/Desc.
Qty
Description
Quick Ship
PXM35MD1-001BARGV
387,00
Availability: 9 weeks

Millivolt output pressure transducer with 0 to 1 Bar gauge pressure range, G 1/4 female fitting and integral connector
Quick Ship
PXM35MD1-1.60BARGV
387,00
Availability: 9 weeks

Millivolt output pressure transducer with 0 to 1.6 Bar gauge pressure range, G 1/4 female fitting and integral connector
Quick Ship
PXM35MD1-004BARGV
387,00
Availability: 9 weeks

Millivolt output pressure transducer with 0 to 4 Bar gauge pressure range, G 1/4 female fitting and integral connector
Quick Ship
PXM35MD1-006BARGV
387,00
Availability: 9 weeks

Millivolt output pressure transducer with 0 to 6 Bar gauge pressure range, G 1/4 female fitting and integral connector
Quick Ship
PXM35MD1-010BARGV
387,00
Availability: 9 weeks

Millivolt output pressure transducer with 0 to 10 Bar gauge pressure range, G 1/4 female fitting and integral connector
Quick Ship
PXM35MD1-016BARGV
387,00
Availability: 9 weeks

Millivolt output pressure transducer with 0 to 16 Bar gauge pressure range, G 1/4 female fitting and integral connector
Quick Ship
PXM35MD1-025BARGV
387,00
Availability: 9 weeks

Millivolt output pressure transducer with 0 to 25 Bar gauge pressure range, G 1/4 female fitting and integral connector
Quick Ship
PXM35MD1-040BARGV
387,00
Availability: 11 weeks

Millivolt output pressure transducer with 0 to 40 Bar gauge pressure range, G 1/4 female fitting and integral connector
Quick Ship
PXM35MD1-060BARGV
387,00
Availability: 9 weeks

Millivolt output pressure transducer with 0 to 60 Bar gauge pressure range, G 1/4 female fitting and integral connector
Quick Ship
PXM35MD1-100BARGV
460,00
Availability: 9 weeks

Millivolt output pressure transducer with 0 to 100 Bar gauge pressure range, G 1/4 female fitting and integral connector
Quick Ship
PXM35MD1-160BARGV
460,00
Availability: 9 weeks

Millivolt output pressure transducer with 0 to 160 Bar gauge pressure range, G 1/4 female fitting and integral connector
Quick Ship
PXM35MD1-250BARGV
460,00
Availability: 9 weeks

Millivolt output pressure transducer with 0 to 250 Bar gauge pressure range, G 1/4 female fitting and integral connector
Quick Ship
PXM35MD1-400BARGV
460,00
Availability: 9 weeks

Millivolt output pressure transducer with 0 to 400 Bar gauge pressure range, G 1/4 female fitting and integral connector
All amounts shown in EUR
Note: To order Absolute Pressure models, change "G" in the part number to "A". No charge.
To order Sealed Gauge models, change "G" in the part number to "S". No charge.
