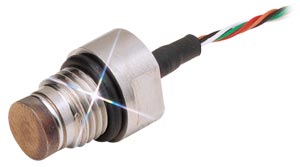

Subminiature Pressure Transducer, mV Output with Flush Diaphragm. G1/8A Fitting

PXM600 Series

Subminiature Pressure Transducer, mV Output with Flush Diaphragm. G1/8A Fitting | PXM600 Series

530,00 PXM600MU-14BARGV

  • All Stainless Steel Diaphragm and Threaded Side Wall Construction
  • Rugged Stainless Steel Case
  • Subminiature Design
Pressure Transducers - View related products

Description

SPECIFICATIONS

Excitation: 5 Vdc @15 mA
Output: 10 mV typical @ 5 Vdc
Sensitivity: 2 mV/V Nominal
Input Impedance: 350 Ω min
Output Resistance: 350 Ω min
Insulation Resistance: 5 MΩ @ 75 Vdc
Accuracy: ±1% FS; linearity and hysteresis combined; Traceable calibration included
Repeatability: ±0.1% FS
Zero Balance: ±3% FS
Operating Temperature Range: -54 to 121°C (-65 to 250°F)
Compensated Temperature Range: 16 to 71°C (60 to 160°F)
Thermal Zero Effect: <±0.018% FS/°C
Thermal Sensitivity Effect: ±0.036% rdg/°C
Proof Pressure: 150% range
Burst Pressure: 400% range
Body and Diaphragm Material: 17-4 PH stainless steel
Electrical Connection:4-conductor cable
Weight: 14 g (0.5 oz)
Place Order(Specify Model Number)
Part Number/Desc.
Qty
Description
Quick Ship
PXM600MU-14BARGV
530,00
Availability: 9 weeks

mini pressure transducer. G1/8A thread 0 to 14 bar
Quick Ship
PXM600MU-35BARGV
530,00
Availability: 10 weeks

mini pressure transducer. G1/8A thread 0 to 35 bar
Quick Ship
PXM600MU-70BARGV
530,00
Availability: 10 weeks

mini pressure transducer. G1/8A thread 0 to 70 bar
Quick Ship
PXM600MU-140BARGV
530,00
Availability: 9 weeks

mini pressure transducer. G1/8A thread 0 to 140 bar
Quick Ship
PXM600MU-200BARGV
530,00
Availability: 9 weeks

mini pressure transducer. G1/8A thread 0 to 200 bar
Quick Ship
PXM600MU-350BARGV
530,00
Availability: 9 weeks

mini pressure transducer. G1/8A thread 0 to 350 bar
Quick Ship
PXM600MU-700BARGV
530,00
Availability: 9 weeks

mini pressure transducer. G1/8A thread 0 to 700 bar
All amounts shown in EUR
Ordering Example: (1) PXM600MU-14BARGV mini pressure transducer, 0 to 14 bar, mV output. G1/8A thread, €530,00
